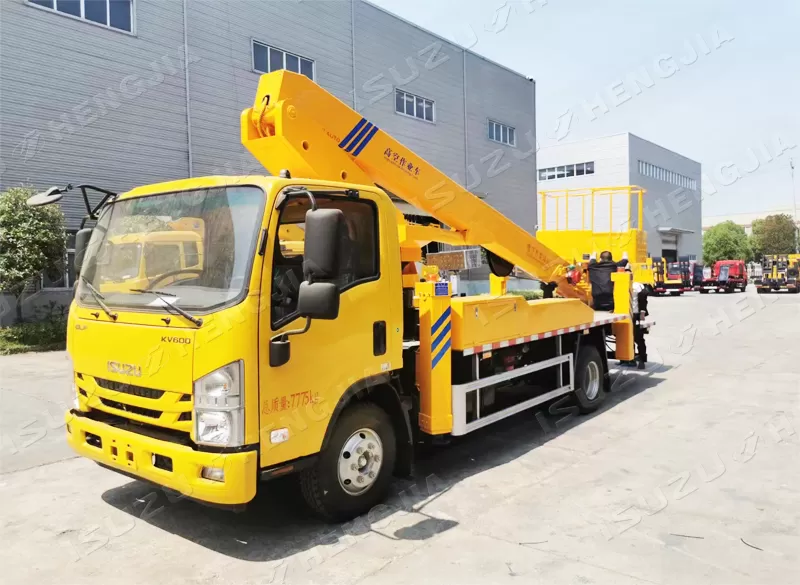

ISUZU NKR/KV600 Aerial Work Truck

wheelbase	2765mm-3815mm
drive	4X2/4X4
Engine model	4KH1
engine power	120HP-146HP
Maximum homework height	12m-30m
Working bucket load	2000 Kg
Structural style	booming/knuckle arm

Inquire Now

Product Configuration

Components	The aerial work platform is mainly composed of cyclinder leg mechanism, lifting mechanism, rotating mechanism, work platform and its leveling mechanism, etc
Main Components	The working bucket is equipped with a built-in leveling mechanism that can rotate ± 90 degrees, a hexagonal working arm, dual amplitude oil cylinders, a stainless steel enclosure, and a patterned anti slip walking platform; Dual workstation control panel, 360 degree rotating mechanism
Reliability	Computer controlled automatic amplitude limiting, full process automatic monitoring of working status, automatic interlocking of boarding and alighting, effectively preventing misoperation, safe and reliable, equipped with electric emergency power source, effectively responding to emergencies, and equipped with a built-in leveling mechanism and anti roll system in the work bucket.
Structure Design	The vehicle features lightweight design, modular manufacturing, Korean style structure and technology, and is made of high-strength steel for high aesthetic value preservation. It has a light weight and high strength, with dual amplitude hydraulic cylinders for lifting and stable support.
Vehicle Advantages	Unique features, the synchronized telescopic core accessories of the articulated arm are imported parts, the quality is stable, and the electronic control system is developed by the original factory. The special vehicle is equipped with dual rotary drive, which cooperates with each other. The double rope transmission chain breaks and protects the upper and lower vehicles from interlocking with a large hanging basket.

Vehicle Diagram

360°rotating mechanism
aerial working bucket
electric emergency motor
H type cyclinder
muti-functional control panel
side cyclinder control bars

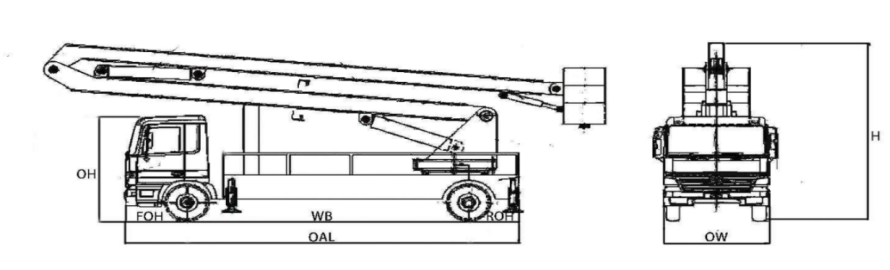

Vehicle Diagram

MODEL	WB	OAL	OW	OH	FOH	ROH
KV600	3360	6400	2300	3690	1120	1920
KV600	3815	7400	2300	3690	1120	2465
Above customized size refer to the factory details.

ISUZU KV600 aerial work truck
wheelbase	3360	3815
engine	98hp/115hp/120hp/140hp	98hp/115hp/120hp/140hp
transmission case	Isuzu MSB	Isuzu MSB
Maximum homework height	12m-18m	20m-30m
Working bucket load	200 ㎏	200 ㎏
Maximum working range	5m-8m	8.5m-14m
Rotation angle	360°	360°

PRODUCT NAME			ISUZU KV600 aerial work truck
whole parameter	Vehicle wheelbase (mm)		3360	3815
	Vehicle size ()		7400×2300×3690	8240×2300×3690
	Total weight (Kg)		8280	8280
	Curb weight (Kg)		5835	6985
	Number of passengers in the cab		2	2
	Maximum speed		98	98
	Tire specifications		7.00R16LT 8PR	7.00R16LT 8PR
	Number of tires		6+1	6+1
	Emission standards		EUROⅤ、EUROⅥ	EUROⅤ、EUROⅥ
ENGINE+TRANSMISSION	Transmission model		Isuzu MSB	Isuzu MSB
	Gear gear		5Forward + 1 Reverse	5Forward + 1 Reverse
	4KH1CN5HS	96kw/130hp	○	\
	4KH1CN5HD	95kw/130hp	○	\
	4KH1N6HD	108kW/146hp	\	○
	4KH1CN6HB	97kw/132hp	\	○
	4KH1CN6LB	88kw/120hp	\	○
	4KH1N6MD	101kW/140hp	\	○
	Maximum homework height		12m-18m	20m-30m
	Working bucket load		200 ㎏	200 ㎏
	Maximum working range		5m-8m	8.5m-14m
	Rotation angle		360°	360°
	Factory standards		Adopting domestic and imported directional valves and hydraulic cylinders, external rod mechanical leveling, with cylinder locking function, electrically controlled hydraulic operation.	Adopting domestic and imported directional valves and hydraulic cylinders, external rod mechanical leveling, with cylinder locking function, electrically controlled hydraulic operation.
Remanrk：the detail spcifications refer to factory information, and customization service available
