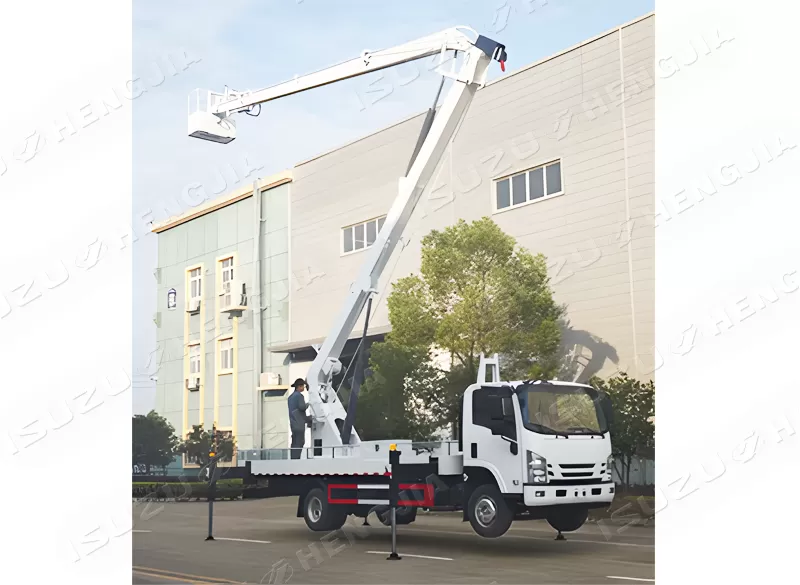

Aerial Work Truck
| wheelbase | 3815mm-4475mm |
| drive | 4X2/4X4 |
| Engine model | 4HK1 |
| engine power | 189HP-205HP |
| Maximum homework height | 18m-45m |
| Working bucket load | 2000 Kg |
| Structural style | booming/knuckle arm |
Product Configuration
| Components | The aerial work platform is mainly composed of cyclinder leg mechanism, lifting mechanism, rotating mechanism, work platform and its leveling mechanism, etc | |||
| Main Components | The working bucket is equipped with a built-in leveling mechanism that can rotate ± 90 degrees, a hexagonal working arm, dual amplitude oil cylinders, a stainless steel enclosure, and a patterned anti slip walking platform; Dual workstation control panel, 360 degree rotating mechanism | |||
| Reliability | Computer controlled automatic amplitude limiting, full process automatic monitoring of working status, automatic interlocking of boarding and alighting, effectively preventing misoperation, safe and reliable, equipped with electric emergency power source, effectively responding to emergencies, and equipped with a built-in leveling mechanism and anti roll system in the work bucket. | |||
| Structure Design | The vehicle features lightweight design, modular manufacturing, Korean style structure and technology, and is made of high-strength steel for high aesthetic value preservation. It has a light weight and high strength, with dual amplitude hydraulic cylinders for lifting and stable support. | |||
| Vehicle Advantages | Unique features, the synchronized telescopic core accessories of the articulated arm are imported parts, the quality is stable, and the electronic control system is developed by the original factory. The special vehicle is equipped with dual rotary drive, which cooperates with each other. The double rope transmission chain breaks and protects the upper and lower vehicles from interlocking with a large hanging basket. | |||
Vehicle Diagram
360°rotating mechanism
aerial working bucket

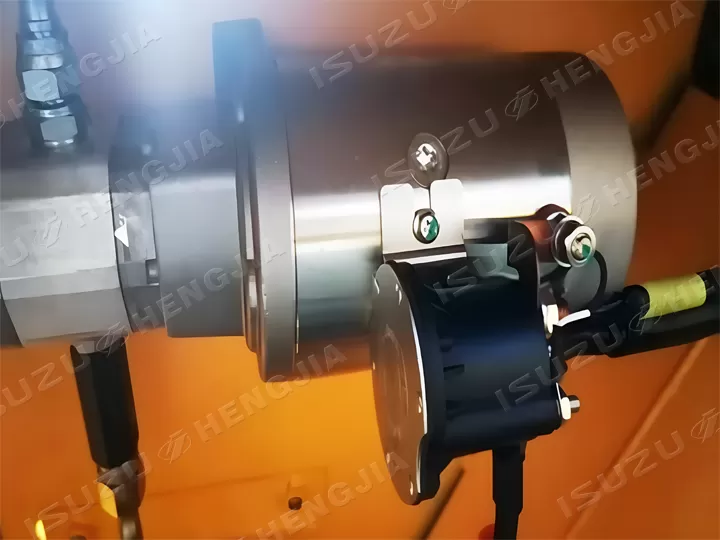

electric emergency motor

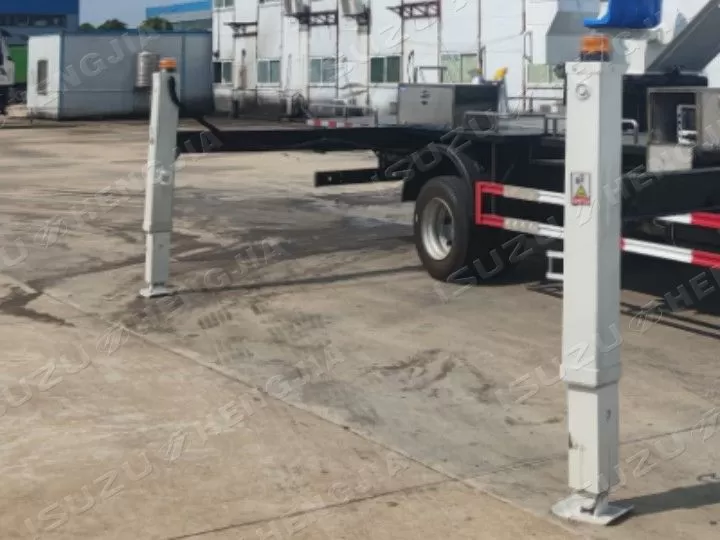

H type cyclinder

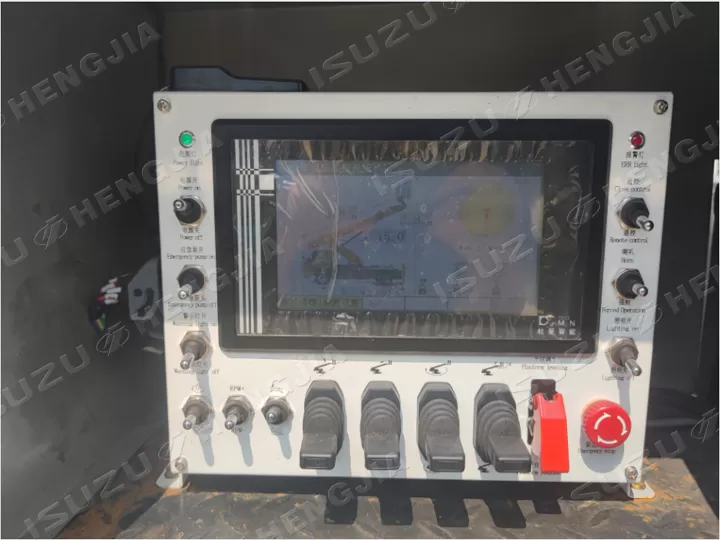

muti-functional control panel
side cyclinder control bars

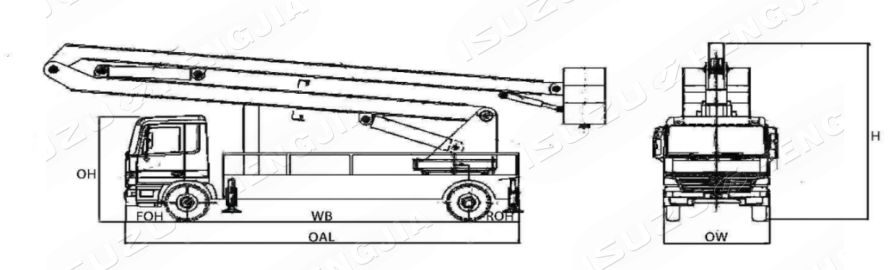

Vehicle Diagram
| MODEL | WB | OAL | OW | OH | FOH | ROH |
| 700P | 3815 | 7230 | 2250 | 3300 | 1680 | 1735 |
| 4475 | 8500 | 2500 | 3300 | 1680 | 2345 | |
| Above customized size refer to the factory details. | ||||||
| ISUZU 700P aerial work truck | ||
| wheelbase | 3815 | 4475 |
| engine | 189hp/205hp | 189hp/205hp |
| transmission case | Isuzu MLD | Isuzu MLD |
| Maximum homework height | 18m-22m | 24m-45m |
| Working bucket load | 200 ㎏ | 200 ㎏ |
| Maximum working range | 8.5m-9.5m | 11m-18.5m |
| Rotation angle | 360° | 360° |
| PRODUCT NAME | ISUZU 700P aerial work truck | |||
| whole parameter | Vehicle wheelbase (mm) | 3815 | 4475 | |
| Vehicle size () | 7230×2250×3300 | 8500×2500×3700 | ||
| Total weight (Kg) | 10550 | 10550 | ||
| Curb weight (Kg) | 7405 | 8910 | ||
| Number of passengers in the cab | 3 | 3 | ||
| Maximum speed | 110 | 110 | ||
| Tire specifications | 235/75R17.5 16PR | 235/75R17.5 16PR | ||
| Number of tires | 6+1 | 6+1 | ||
| Emission standards | EUROⅤ、EUROⅥ | EUROⅤ、EUROⅥ | ||
| ENGINE+TRANSMISSION | Transmission model | Isuzu MLD | Isuzu MLD | |
| Gear gear | 6Forward + 1 Reverse | 6Forward + 1 Reverse | ||
| 4HK1-TCG60 | 151kw/205hp | ○ | ○ | |
| 4HK1-TCG61 | 139kw/189hp | ○ | ○ | |
| Maximum homework height | 18m-22m | 24m-45m | ||
| Working bucket load | 200 ㎏ | 200 ㎏ | ||
| Maximum working range | 8.5m-9.5m | 11m-18.5m | ||
| Rotation angle | 360° | 360° | ||
| Factory standards | Adopting domestic and imported directional valves and hydraulic cylinders, external rod mechanical leveling, with cylinder locking function, electrically controlled hydraulic operation. | Adopting domestic and imported directional valves and hydraulic cylinders, external rod mechanical leveling, with cylinder locking function, electrically controlled hydraulic operation. | ||
| Remanrk：the detail spcifications refer to factory information, and customization service available | ||||
