Box Truck
| Wheelbase | 5800mm |
| Drive | 4X2/4X4 |
| Engine model | 6UZ1/6WG1 |
| Engine horsepower | 350HP-520HP |
| Load | 10T |
| Box volume | 45m³ |
| Box material | Steel corrugated/aluminum flat/composite board |
Product Configuration
| Box body | Using polyester wet board making process and fully enclosed polyurethane board bonding method, the thermal insulation performance reaches the national A-level standard. | |||
| Box board | The inner and outer wall panels are made of domestic high-quality nano-glass (non-light-absorbing, good heat insulation, strong hardness, and anti-oxidation), and the middle insulation material is imported polyurethane with no gap filling; | |||
| Chassis | The bottom of the box is an aluminum alloy patterned plate or, with a 150mm overall bend skirt, which has better protection and sealing performance | |||
| Accessories | The perimeter of the box is made of aluminum alloy edging, stainless steel corners, stainless steel door locks, 4 anti-collision rubbers, stainless steel door frames, stainless steel hinges, and energy-saving LED lights in the box. | |||
| Others | The thickness of the box can be selected, and the inner and outer wall panels can be selected from fiberglass, color steel, stainless steel, and aluminum alloy. | |||
| Process quality | The latest fully sealed insulation box, lightweight, high strength, high insulation, and long service life | |||
| Professional customization | Seven years of modification experience, free customization of modification plans can be made according to vehicle needs | |||
Vehicle Diagram
Rain test
Imported insulation board
Pressure plate machine
Process quality
Professional customization
Stainless steel lock
Vehicle Diagram
| Model | Cab type | WB | OAL | OW | OH | FOH | ROH | L | W | H | |
| 4X2 VC66 | Single row | 5800 | 9200 | 2550 | 4000 | 1370 | 2030 | 7200 | 2400 | 2600 | |
| Note: The above dimensions are for reference and can be customized according to needs | |||||||||||

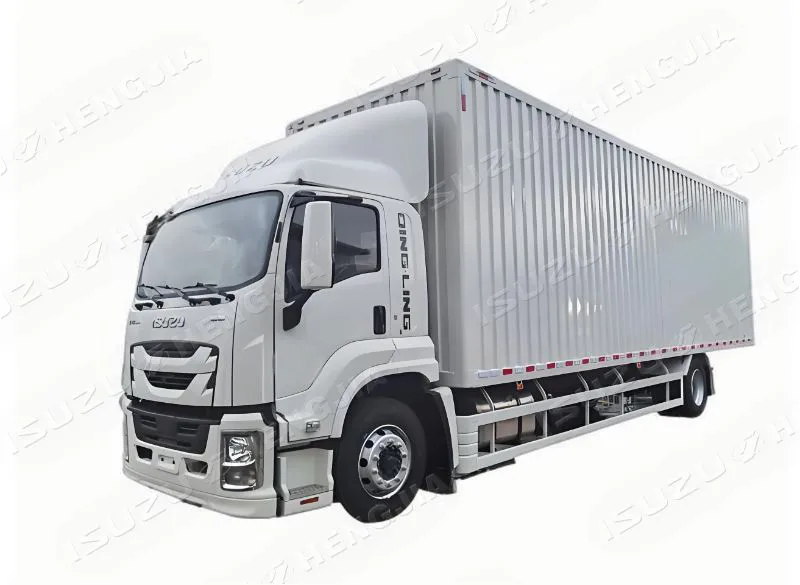

| Isuzu 4X2 GIGA VC66 Box Truck | |
| wheelbase | 5800 |
| Box volume | 45 m³ |
| Cabinet size | 7200×2400×2600 |
| motor | 257kw/350hp |
| Gearbox | Fast 12JSD180TA |
| Cabinet material | Steel corrugated / aluminum flat / composite panel |
| Product name | Isuzu 4X2 GIGA VC66 Box Truck | ||
| Vehicle parameters | Wheelbase (mm) | 5800 | |
| Vehicle size() | 9200X2550X4000 | ||
| Gross weight (Kg) | 18000 | ||
| Curb weight (Kg) | 9200 | ||
| Number of passengers in the cab | 3 | ||
| Top speed | 110 | ||
| Tire specifications | 12R22.5 16PR | ||
| Number of tires | 6+1 | ||
| Emission standards | National 5, National 6 | ||
| Transformation parameters | Transmission model | Fast 12JSD180TA | |
| Gear gear | 12Forward +2 Reverse | ||
| 6UZ1-TCG60 | 257kw/350hp | ○ | |
| Dedicated performance | Cabinet material | Steel corrugated | ○ |
| Composite panels | ○ | ||
| Aluminum flat plate | ○ | ||
| One-sided door | ○ | ||
| Double-leaf side doors | ○ | ||
| Box volume | 45 m³ | ||
| Cabinet size | 7200×2400×2600 | ||
| Factory standards | The bottom plate is bent as a whole 150mm skirt, 304 stainless steel hardware, left and right side protection, rear protection, box rain test, reflective label | ||
| Note: Please contact us for detailed configuration for confirmation, support customization | |||
