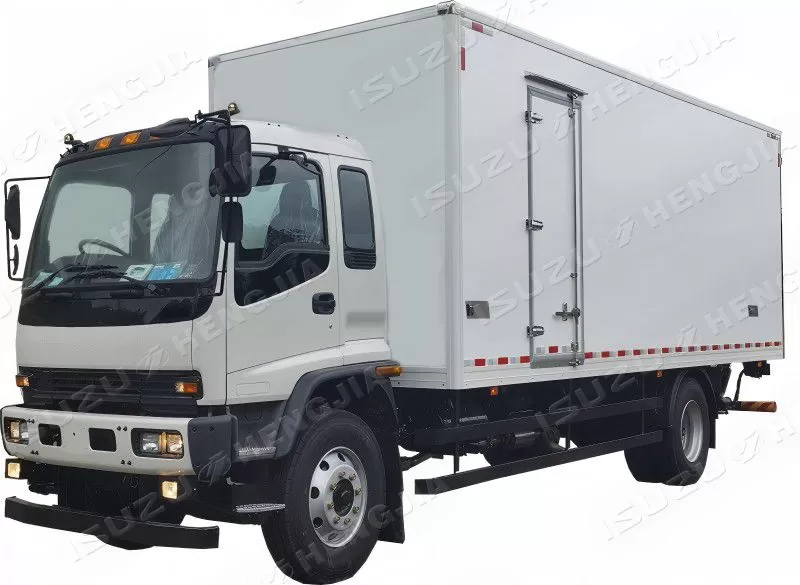

ISUZU F/FTR Box Truck

Wheelbase	5800mm-7200mm
Drive	4X2/4X4
Engine model	4HK1
Engine horsepower	205HP-224HP
Load	9T-10T
Box volume	47.5 m³-60m³
Box material	Steel corrugated/aluminum flat/composite board

Inquire Now Next Product

Product Configuration

Box body	Using polyester wet board making process and fully enclosed polyurethane board bonding method, the thermal insulation performance reaches the national A-level standard.
Box board	The inner and outer wall panels are made of domestic high-quality nano-glass (non-light-absorbing, good heat insulation, strong hardness, and anti-oxidation), and the middle insulation material is imported polyurethane with no gap filling;
Chassis	The bottom of the box is an aluminum alloy patterned plate or, with a 150mm overall bend skirt, which has better protection and sealing performance
Accessories	The perimeter of the box is made of aluminum alloy edging, stainless steel corners, stainless steel door locks, 4 anti-collision rubbers, stainless steel door frames, stainless steel hinges, and energy-saving LED lights in the box.
Others	The thickness of the box can be selected, and the inner and outer wall panels can be selected from fiberglass, color steel, stainless steel, and aluminum alloy.
Process quality	The latest fully sealed insulation box, lightweight, high strength, high insulation, and long service life
Professional customization	Seven years of modification experience, free customization of modification plans can be made according to vehicle needs

Vehicle Diagram

Vehicle Diagram

Refrigerated Truck

Model	Cab type	WB	OAL	OW	OH	FOH	ROH	L	W	H
FTR	Single row	5800	10000	2550	4000	1335	2865	7600	2400	2600
		6300	11000	2400	3500	1335	3365	8600	2400	2600
		7200	12000	2400	3500	1335	3465	9600	2400	2600
Note: The above dimensions are for reference and can be customized according to needs

Isuzu FTR Box Truck
wheelbase	5800	6300	7200
Box volume	47.5 m³	54 m³	60 m³
Cabinet size	7600×2400×2600	8600×2400×2600	9600×2400×2600
motor	205hp/224hp	205hp/224hp	205hp/224hp
Gearbox	Isuzu MLD	Isuzu MLD	Isuzu MLD
Cabinet material	Steel corrugated / aluminum flat / composite panel

Product name			Isuzu FTR Box Truck
Vehicle parameters	Wheelbase (mm)		5800	6300	7200
	Vehicle size()		10000X2550X4000	11000X2550X4000	12000X2550X4000
	Gross weight (Kg)		18000	18000	18000
	Curb weight (Kg)		7580	8250	8660
	Number of passengers in the cab		3	3	3
	Top speed		110	110	110
	Tire specifications		11.00R22.5 16PR	11.00R22.5 16PR	11.00R22.5 16PR
	Number of tires		6+1	6+1	6+1
	Emission standards		National 5, National 6	National 5, National 6	National 5, National 6
Transformation parameters	Transmission model		Isuzu MLD	Isuzu MLD	Isuzu MLD
	Gear gear		6Forward + 1 Reverse	6Forward + 1 Reverse	6Forward + 1 Reverse
	4HK1-TC50	151kw/205hp	○	○	○
	4HK1-TCG60	151kw/205hp	○	○	○
	4HK1-TCG62	164kw/224hp	○	○	○
Dedicated performance	Cabinet material	Steel corrugated	○	○	○
		Composite panels	○	○	○
		Aluminum flat plate	○	○	○
	One-sided door		○	○	○
	Double-leaf side doors		○	○	○
	Box volume		47.5 m³	54 m³	60 m³
	Cabinet size		7600×2400×2600	8600×2400×2600	9600×2400×2600
	Factory standards		The bottom plate is bent as a whole 150mm skirt, 304 stainless steel hardware, left and right side protection, rear protection, box rain test, reflective label	The bottom plate is bent as a whole 150mm skirt, 304 stainless steel hardware, left and right side protection, rear protection, box rain test, reflective label	The bottom plate is bent as a whole 150mm skirt, 304 stainless steel hardware, left and right side protection, rear protection, box rain test, reflective label
Note: Please contact us for detailed configuration for confirmation, support customization
