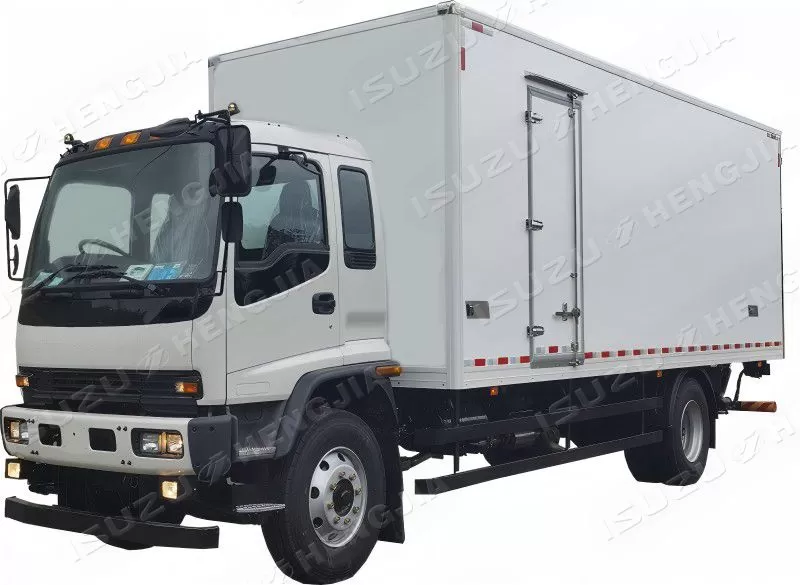

ISUZU F/FVZ Box Truck

Wheelbase	4350+1370mm-5700+1300mm
Drive	6X4/6X6
Engine model	6HK1
Engine horsepower	300HP
Load	14T-15T
Box volume	41 m³-56.8m³
Box material	Steel corrugated/aluminum flat/composite board

Inquire Now Next Product

Product Configuration

Box body	Using polyester wet board making process and fully enclosed polyurethane board bonding method, the thermal insulation performance reaches the national A-level standard.
Box board	The inner and outer wall panels are made of domestic high-quality nano-glass (non-light-absorbing, good heat insulation, strong hardness, and anti-oxidation), and the middle insulation material is imported polyurethane with no gap filling;
Chassis	The bottom of the box is an aluminum alloy patterned plate or, with a 150mm overall bend skirt, which has better protection and sealing performance
Accessories	The perimeter of the box is made of aluminum alloy edging, stainless steel corners, stainless steel door locks, 4 anti-collision rubbers, stainless steel door frames, stainless steel hinges, and energy-saving LED lights in the box.
Others	The thickness of the box can be selected, and the inner and outer wall panels can be selected from fiberglass, color steel, stainless steel, and aluminum alloy.
Process quality	The latest fully sealed insulation box, lightweight, high strength, high insulation, and long service life
Professional customization	Seven years of modification experience, free customization of modification plans can be made according to vehicle needs

Vehicle Diagram

Rain test
Imported insulation board
Pressure plate machine
Process quality
Professional customization
Stainless steel lock

Vehicle Diagram

Refrigerated Truck

Model	Cab type	WB	OAL	OW	OH	FOH	ROH	L	W	H
FVZ	Row in half	4350+1370	8960	2490	4000	1335	2905	6560	2400	2600
		4650+1300	9410	2490	4000	1335	2055	7000	2400	2600
		5100+1300	10210	2490	4000	1335	2405	7900	2400	2600
		5700+1300	11575	2490	4000	1335	3770	9110	2400	2600
Note: The above dimensions are for reference and can be customized according to needs

Isuzu FVZ Box Truck
wheelbase	4350+1370	4650+1300	5100+1300	5700+1300
Box volume	41 m³	44 m³	48.5 m³	56.8 m³
Cabinet size	6560×2400×2600	7000×2400×2600	7800×2400×2600	9110×2400×2600
motor	300hp	300hp	300hp	300hp
Gearbox	Fast 9JS119TA	Fast 9JS119TA	Fast 9JS119TA	Fast 9JS119TA
Cabinet material	Steel corrugated / aluminum flat / composite panel

Product name			Isuzu FVZ Box Truck
Vehicle parameters	Wheelbase (mm)		4350+1370	4650+1300	5100+1300	5700+1300
	Vehicle size()		8960X2540X3040	9410X2490X2810	10210X2490X2810	11575X2490X2810
	Gross weight (Kg)		25000	25000	25000	25000
	Curb weight (Kg)		10600	10800	11000	11300
	Number of passengers in the cab		3	3	3	3
	Top speed		105	105	105	105
	Tire specifications		295/80R22.5 16PR	295/80R22.5 16PR	295/80R22.5 16PR	295/80R22.5 16PR
	Number of tires		10+1	10+1	10+1	10+1
	Emission standards		National 5, National 6	National 5, National 6	National 5, National 6	National 5, National 6
Transformation parameters	Transmission model		Fast 9JS119TA	Fast 9JS119TA	Fast 9JS119TA	Fast 9JS119TA
	Gear gear		9Forward +1 Reverse	9Forward +1 Reverse	9Forward +1 Reverse	9Forward +1 Reverse
	6HK1-TCH	221kw/300hp	\	○	○	○
	6HK1-TCG60	221kw/300hp	○	○	○	○
Dedicated performance	Cabinet material	Steel corrugated	○	○	○	○
		Composite panels	○	○	○	○
		Aluminum flat plate	○	○	○	○
	One-sided door		○	○	○	○
	Double-leaf side doors		○	○	○	○
	Box volume		41 m³	44 m³	48.5 m³	56.8 m³
	Cabinet size		6560×2400×2600	7000×2400×2600	7800×2400×2600	9110×2400×2600
	Factory standards		The bottom plate is bent as a whole 150mm skirt, 304 stainless steel hardware, left and right side protection, rear protection, box rain test, reflective label	The bottom plate is bent as a whole 150mm skirt, 304 stainless steel hardware, left and right side protection, rear protection, box rain test, reflective label	The bottom plate is bent as a whole 150mm skirt, 304 stainless steel hardware, left and right side protection, rear protection, box rain test, reflective label	The bottom plate is bent as a whole 150mm skirt, 304 stainless steel hardware, left and right side protection, rear protection, box rain test, reflective label
Note: Please contact us for detailed configuration for confirmation, support customization
