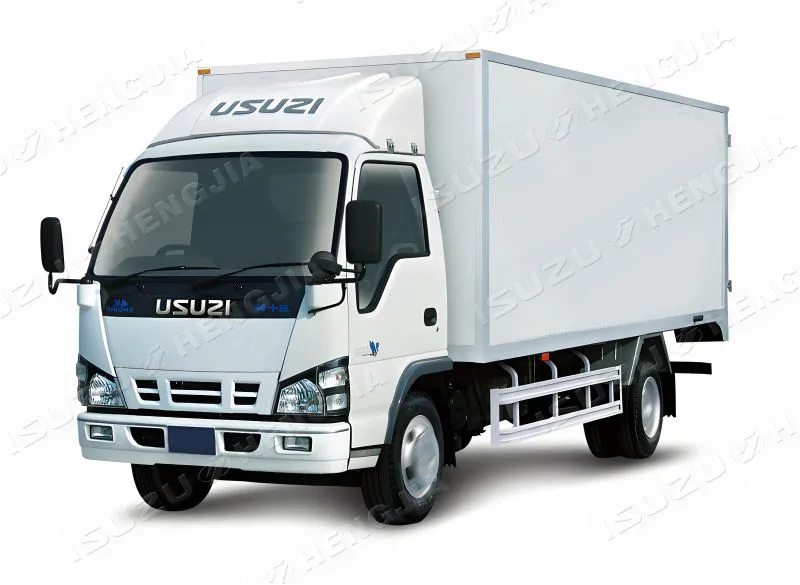

ISUZU NKR /600P Box Truck

Wheelbase	2490mm-3815mm
Drive	4X2/4X4
Engine model	4KH1
Engine horsepower	115HP-140HP
Load	2T-5.2T
Box volume	12.8 m³-21m³
Box material	Steel corrugated/aluminum flat/composite board

Inquire Now Next Product

Product Configuration

Box body	Using polyester wet board making process and fully enclosed polyurethane board bonding method, the thermal insulation performance reaches the national A-level standard.
Box board	The inner and outer wall panels are made of domestic high-quality nano-glass (non-light-absorbing, good heat insulation, strong hardness, and anti-oxidation), and the middle insulation material is imported polyurethane with no gap filling;
Chassis	The bottom of the box is an aluminum alloy patterned plate or, with a 150mm overall bend skirt, which has better protection and sealing performance
Accessories	The perimeter of the box is made of aluminum alloy edging, stainless steel corners, stainless steel door locks, 4 anti-collision rubbers, stainless steel door frames, stainless steel hinges, and energy-saving LED lights in the box.
Others	The thickness of the box can be selected, and the inner and outer wall panels can be selected from fiberglass, color steel, stainless steel, and aluminum alloy.
Process quality	The latest fully sealed insulation box, lightweight, high strength, high insulation, and long service life
Professional customization	Seven years of modification experience, free customization of modification plans can be made according to vehicle needs

Vehicle Diagram

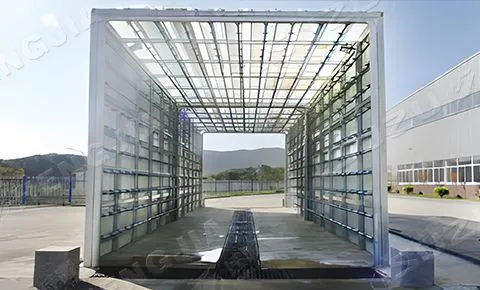

Rain test

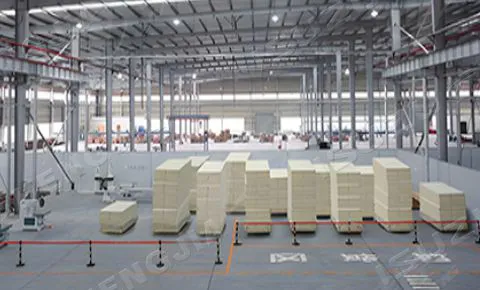

Imported insulation board

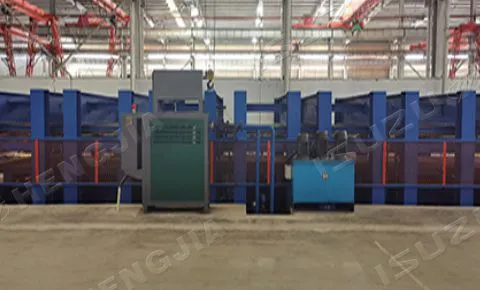

Pressure plate machine

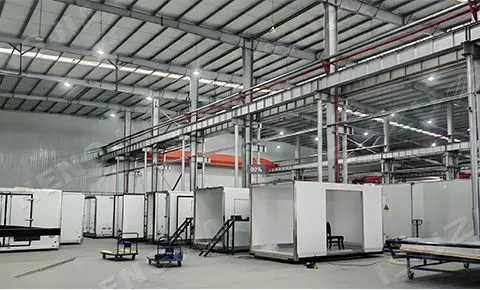

Process quality

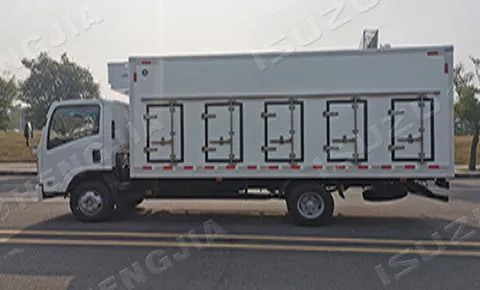

Professional customization

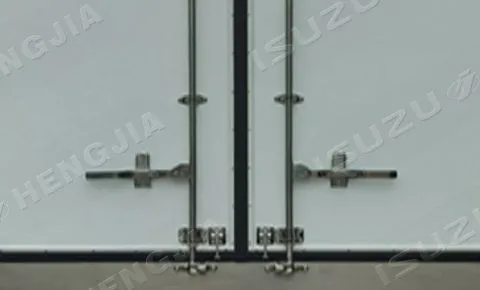

Stainless steel lock

Vehicle Diagram

Refrigerated Truck

Model	Cab type	WB	OAL	0W	OH	FOH	ROH	L	W	H
600P	Single row	2490	4870	1850	2700	1015	1365	3050	2150	1950
		2765	5300	1850	2700	1015	1520	32500	2150	1950
		3360	5995	1950	2700	1015	1620	4250	2150	1950
		3815	6800	2050	2700	1015	1970	4950	2150	1950

Note: The above dimensions are for reference only and can be adjusted as required Customized

Isuzu 600P Box Truck
Wheelbase	2490	2765	3360	3815
Box volume	12.8 m³	14.5 m³	18 m³	21 m³
Box size	3050×2150×1950	3500×2150×1950	4250×2150×1950	4950×2150×1950
Engine	115hp/120hp/130hp/140hp	115hp/120hp/130hp/140hp	115hp/120hp/130hp/140hp	115hp/120hp/130hp/140hp
Transmission	Isuzu MSB	Isuzu MSB	Isuzu MSB	Isuzu MSB
Box material	Steel corrugated/aluminum flat panel/composite board

Product name			Isuzu 600P Box Truck
Vehicle parameters	Vehicle wheelbase (mm)		2490	2765	3360	3815
	Vehicle size ()		4870×2220×3225	5300X2220×3225	5995X2220×3225	6800X2220×3225
	Total mass (Kg)		6485	6720	7300	7300
	Curb weight (Kg)		2650	2850	3170	3540
	Number of passengers in the cab		2	2	2	2
	Maximum speed		98	98	98	98
	Tire specifications		7.00R16LT 14PR	7.00R16LT 14PR	7.00R16LT 14PR	7.00R16LT 14PR
	Number of tires		6+1	6+1	6+1	6+1
	Emission standards		National V, National VI	National V, National VI	National V, National VI	National V, National VI
Transmission parameters	Transmission model		Isuzu MSB	Isuzu MSB	Isuzu MSB	Isuzu MSB
	Gear gear		5Forward + 1 Reverse	5Forward + 1 Reverse	5Forward + 1 Reverse	5Forward + 1 Reverse verse
	4KH1CN5HS	96kw/130hp	○	○	○	○
	4KH1CN5MD	83kw/115hp	\	\	\	○
	4KH1CN5HD	95kw/130hp	\	○	○	\
	4KH1CN6LB	88kw/120hp	○	○	○	○
	4KH1N6MD	101kW/140hp	\	\	○	○
Special performance	Box material	Steel corrugated	○	○	○	○
		Composite board	○	○	○	○
		Aluminum flat plate	○	○	○	○
	Single side door		○	○	○	○
	Double side door		○	○	○	○
	Box volume		7.8 m³	10.5 m³	14 m³	16 m³
	Box size		3050×1720×1650	3500×1800×1850	4250×1900×1900	4950×1980×1900
	Factory standard		Bottom plate with overall bending 150mm skirt, 304 stainless steel hardware, left and right side protection, rear protection, box rain test, reflective label	The overall bending of the bottom plate is 150mm skirt, 304 stainless steel hardware, left and right side protection, rear protection, box rain test, reflective label	The overall bending of the bottom plate is 150mm skirt, 304 stainless steel hardware, left and right side protection, rear protection, box rain test, reflective label	The overall bending of the bottom plate is 150mm skirt, 304 stainless steel hardware, left and right side protection, rear protection, box rain test, reflective label
Note: Please contact us for confirmation of detailed configuration, support customization
