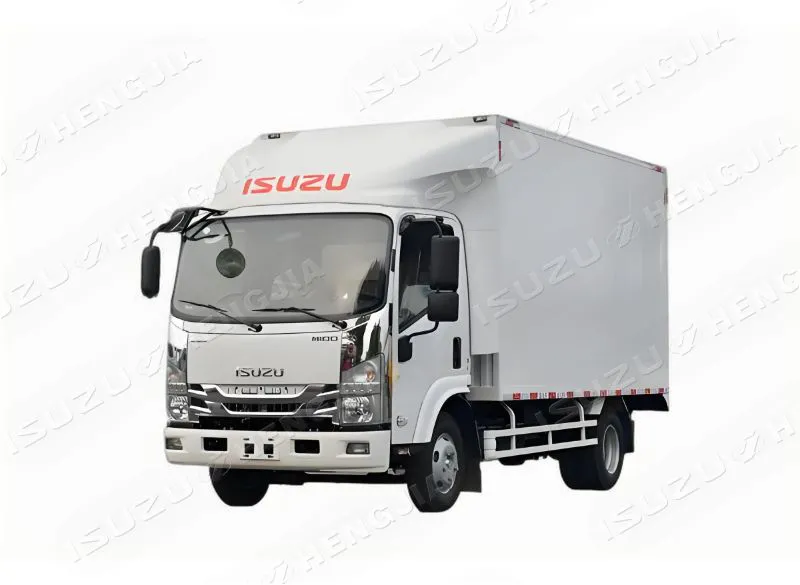

ISUZU NKR /M100 Box Truck

Wheelbase	2795mm-3815mm
Drive	4X2/4X4
Engine model	4KH1
Engine horsepower	115HP-130HP
Load	2T-6T
Box volume	15.5 m³-22m³
Cabinet material	Steel corrugated / aluminum flat / composite panel

Inquire Now Next Product

Product Configuration

Box body	Using polyester wet board making process and fully enclosed polyurethane board bonding method, the thermal insulation performance reaches the national A-level standard.
Box board	The inner and outer wall panels are made of domestic high-quality nano-glass (non-light-absorbing, good heat insulation, strong hardness, and anti-oxidation), and the middle insulation material is imported polyurethane with no gap filling;
Chassis	The bottom of the box is an aluminum alloy patterned plate or, with a 150mm overall bend skirt, which has better protection and sealing performance
Accessories	The perimeter of the box is made of aluminum alloy edging, stainless steel corners, stainless steel door locks, 4 anti-collision rubbers, stainless steel door frames, stainless steel hinges, and energy-saving LED lights in the box.
Others	The thickness of the box can be selected, and the inner and outer wall panels can be selected from fiberglass, color steel, stainless steel, and aluminum alloy.
Process quality	The latest fully sealed insulation box, lightweight, high strength, high insulation, and long service life
Professional customization	Seven years of modification experience, free customization of modification plans can be made according to vehicle needs

Vehicle Diagram

Vehicle Diagram

Refrigerated Truck

Model	Cab type	WB	OAL	OW	OH	FOH	ROH	L	W	H
M100	Single row	2795	5300	2200	3225	1145	1360	3500	2100	2100
		3365	5995	2360	3300	1120	1510	4250	2100	2100
		3815	6800	2360	3300	1120	1865	4950	2100	2100
The above dimensions are for reference and can be customized according to needs

Isuzu M100 Box Truck
wheelbase	2795	3365	3815
Box volume	15.5 m³	18.8 m³	22 m³
Cabinet size	3500×2100×2100	4250×2100×2100	4950×2100×2100
motor	115hp/120hp/130hp	115hp/120hp/130hp	115hp/120hp/130hp
Gearbox	Isuzu MSB	Isuzu MSB	Isuzu MSB
Cabinet material	Steel corrugated / aluminum flat / composite panel

Product name			Isuzu M100 Box Truck
Vehicle parameters	Wheelbase (mm)		2795	3365	3815
	Vehicle size()		5300X2220X3225	5995X2220X3225	7000X2220X3225
	Gross weight (Kg)		4495	8280	7300
	Curb weight (Kg)		3250	3565	3820
	Number of passengers in the cab		2	2	2
	Top speed		98	98	98
	Tire specifications		7.50R16LT 14PR	7.50R16LT 14PR	7.50R16LT 14PR
	Number of tires		6+1	6+1	6+1
	Emission standards		National VI	National 5, National 6	National 5, National 6
Transformation parameters	Transmission model		Isuzu MSB	Isuzu MSB	Isuzu MSB
	Gear gear		5Forward + 1 Reverse	5Forward + 1 Reverse	5Forward + 1 Reverse
	4KH1CN5MD	83kw/115hp	\	○	\
	4KH1CN5HD	95kw/130hp	\	○	\
	4KH1CN6LB	88kw/120hp	○	○	○
Dedicated performance	Cabinet material	Steel corrugated	○	○	○
		Composite panels	○	○	○
		Aluminum flat plate	○	○	○
	One-sided door		○	○	○
	Double-leaf side doors		○	○	○
	Box volume		15.5 m³	18.8 m³	22 m³
	Cabinet size		3500×2100×2100	4250×2100×2100	4950×2100×2100
	Factory standards		The bottom plate is bent as a whole 150mm skirt, 304 stainless steel hardware, left and right side protection, rear protection, box rain test, reflective label	The bottom plate is bent as a whole 150mm skirt, 304 stainless steel hardware, left and right side protection, rear protection, box rain test, reflective label	The bottom plate is bent as a whole 150mm skirt, 304 stainless steel hardware, left and right side protection, rear protection, box rain test, reflective label
Note: Please contact us for detailed configuration for confirmation, support customization
