Box Truck
| Wheelbase | 3365mm-3815mm |
| Drive | 4X2/4X4 |
| Engine model | 4KH1 |
| Engine horsepower | 115HP-132HP |
| Load | 2T-5.5T |
| Box volume | 18.8 m³-22m³ |
| Box material | Steel corrugated/aluminum flat/composite board |
Product Configuration
| Box body | Using polyester wet board making process and fully enclosed polyurethane board bonding method, the thermal insulation performance reaches the national A-level standard. | |||
| Box board | The inner and outer wall panels are made of domestic high-quality nano-glass (non-light-absorbing, good heat insulation, strong hardness, and anti-oxidation), and the middle insulation material is imported polyurethane with no gap filling; | |||
| Chassis | The bottom of the box is an aluminum alloy patterned plate or, with a 150mm overall bend skirt, which has better protection and sealing performance | |||
| Accessories | The perimeter of the box is made of aluminum alloy edging, stainless steel corners, stainless steel door locks, 4 anti-collision rubbers, stainless steel door frames, stainless steel hinges, and energy-saving LED lights in the box. | |||
| Others | The thickness of the box can be selected, and the inner and outer wall panels can be selected from fiberglass, color steel, stainless steel, and aluminum alloy. | |||
| Process quality | The latest fully sealed insulation box, lightweight, high strength, high insulation, and long service life | |||
| Professional customization | Seven years of modification experience, free customization of modification plans can be made according to vehicle needs | |||
Vehicle Diagram
Rain test
Imported insulation board
Pressure plate machine
Process quality
Professional customization
Stainless steel lock
Vehicle Diagram
| Model | Cab type | WB | OAL | OW | OH | FOH | ROH | L | W | H |
| M600 | Single row | 3365 | 5995 | 2360 | 3300 | 1120 | 1510 | 4250 | 2100 | 2100 |
| 3815 | 6800 | 2360 | 3300 | 1120 | 1865 | 4950 | 2100 | 2100 | ||
| Note: The above dimensions are for reference and can be customized according to needs | ||||||||||

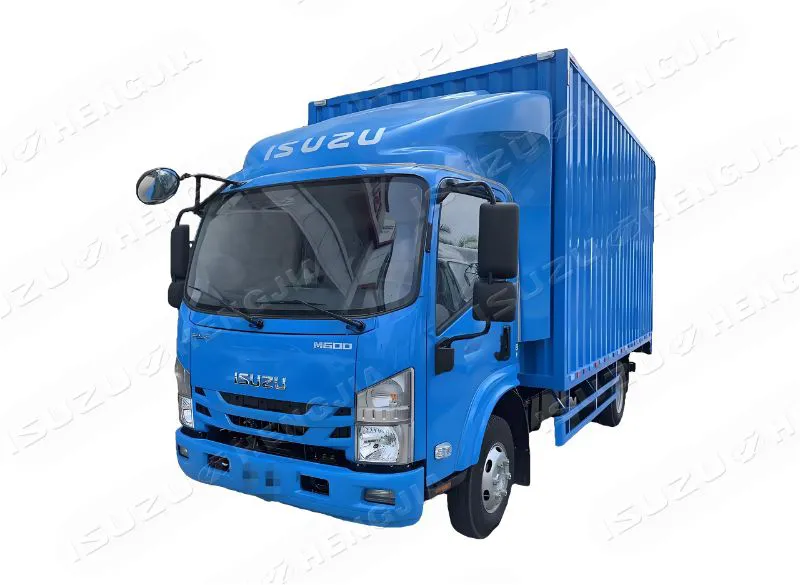

| Isuzu M600 Box Truck | ||
| wheelbase | 3365 | 3815 |
| Box volume | 18.8& m³ | 22 m³ |
| Cabinet size | 4250×2100×2100 | 4950×2100×2100 |
| motor | 115hp/130hp/132hp | 115hp/130hp/132hp |
| Gearbox | Isuzu MSB | Isuzu MSB |
| Cabinet material | ||
| Product name | Isuzu M600 Box Truck | |||
| Vehicle parameters | Wheelbase (mm) | 3365 | 3815 | |
| Vehicle size() | 5995X2220X3225 | 7000X2220X3225 | ||
| Gross weight (Kg) | 8280 | 7300 | ||
| Curb weight (Kg) | 3565 | 3820 | ||
| Number of passengers in the cab | 2 | 2 | ||
| Top speed | 98 | 98 | ||
| Tire specifications | 7.50R16LT 14PR | 7.50R16LT 14PR | ||
| Number of tires | 6+1 | 6+1 | ||
| Emission standards | National 5, National 6 | National 5, National 6 | ||
| Transformation parameters | Transmission model | Isuzu MSB | Isuzu MSB | |
| Gear | 5Forward + 1 Reverse | 5Forward + 1 Reverse | ||
| 4KH1CN5MD | 83kw/115hp | ○ | ○ | |
| 4KH1CN5HD | 95kw/130hp | ○ | ○ | |
| 4KH1CN6HB | 97kw/132hp | ○ | ○ | |
| Dedicated performance | Cabinet material | Steel corrugated | ○ | ○ |
| Composite panels | ○ | ○ | ||
| Aluminum flat plate | ○ | ○ | ||
| One-sided door | ○ | ○ | ||
| Double-leaf side doors | ○ | ○ | ||
| Box volume | 18.8& m³ | 22 m³ | ||
| Cabinet size | 4250×2100×2100 | 4950×2100×2100 | ||
| Factory standards | The bottom plate is bent as a whole 150mm skirt, 304 stainless steel hardware, left and right side protection, rear protection, box rain test, reflective label | The bottom plate is bent as a whole 150mm skirt, 304 stainless steel hardware, left and right side protection, rear protection, box rain test, reflective label | ||
| Note: Please contact us for detailed configuration for confirmation, support customization | ||||
