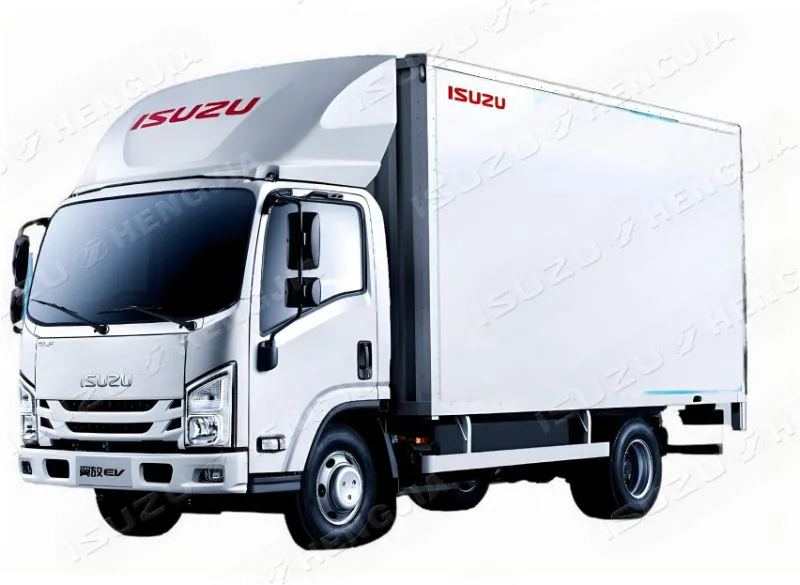

Box Truck
| Wheelbase | 3815mm-5200mm |
| Drive motor model | TZ370XS-LKM0851 |
| Generator power | 75KW |
| Load | 6T |
| Power battery storage capacity | 106.95kWh |
| Cruising range | 300km |
| Box volume | 25m³-34m³ |
Product Configuration
| Box body | Using polyester wet board making process and fully enclosed polyurethane board bonding method, the thermal insulation performance reaches the national A-level standard. | |||
| Box board | The inner and outer wall panels are made of domestic high-quality nano-glass (non-light-absorbing, good heat insulation, strong hardness, and anti-oxidation), and the middle insulation material is imported polyurethane with no gap filling; | |||
| Chassis | The bottom of the box is an aluminum alloy patterned plate or, with a 150mm overall bend skirt, which has better protection and sealing performance | |||
| Accessories | The perimeter of the box is made of aluminum alloy edging, stainless steel corners, stainless steel door locks, 4 anti-collision rubbers, stainless steel door frames, stainless steel hinges, and energy-saving LED lights in the box. | |||
| Others | The thickness of the box can be selected, and the inner and outer wall panels can be selected from fiberglass, color steel, stainless steel, and aluminum alloy. | |||
| Process quality | The latest fully sealed insulation box, lightweight, high strength, high insulation, and long service life | |||
| Professional customization | Seven years of modification experience, free customization of modification plans can be made according to vehicle needs | |||
Vehicle Diagram
Rain test
Imported insulation board
Pressure plate machine
Process quality
Professional customization
Stainless steel lock
Vehicle Diagram
| Model | Cab type | WB | OAL | OW | OH | FOH | ROH | L | W | H |
| EV700 | Single row | 3815 | 7000 | 2400 | 3500 | 1110 | 2075 | 5100 | 2200 | 2200 |
| 4175 | 7600 | 2400 | 3500 | 1110 | 2315 | 5600 | 2200 | 2200 | ||
| 4475 | 8050 | 2400 | 3500 | 1110 | 2465 | 6100 | 2200 | 2200 | ||
| 5200 | 9050 | 2400 | 3500 | 1110 | 2740 | 7000 | 2200 | 2200 | ||
| Note: The above dimensions are for reference and can be customized according to needs | ||||||||||
| Isuzu EV700 Box Truck | ||||
| wheelbase | 3815 | 4175 | 4475 | 5200 |
| Box volume | 25 m³ | 27 m³ | 29.5 m³ | 34 m³ |
| Cabinet size | 5100×2200×2200 | 5600×2200×2200 | 6100×2200×2200 | 7000×2200×2200 |
| Rated/peak power (kw/rpm) | 75/120 | 75/120 | 75/120 | 75/120 |
| Rated/peak torque Drive motor (rated/peak torque)(N.m/rpm) | 350/850 | 350/850 | 350/850 | 350/850 |
| Cabinet material | Steel corrugated / aluminum flat / composite panel | |||
| Product name | Isuzu EV700 Box Truck | |||||
| Vehicle parameters | Wheelbase (mm) | 3815 | 4175 | 4475 | 5200 | |
| Vehicle size() | 7000X2400X3500 | 7600X2400X3500 | 8050X2400X3500 | 8950X2400X3500 | ||
| Gross weight (Kg) | 10550 | 10550 | 10550 | 10550 | ||
| Curb weight (Kg) | 4730 | 4830 | 5000 | 5700 | ||
| Number of passengers in the cab | 3 | 3 | 3 | 3 | ||
| Top speed | 110 | 110 | 110 | 110 | ||
| Tire specifications | 235/75R17.5 16PR | 235/75R17.5 16PR | 235/75R17.5 16PR | 235/75R17.5 16PR | ||
| Number of tires | 6+1 | 6+1 | 6+1 | 6+1 | ||
| Emission standards | National 5, National 6 | National 5, National 6 | National 5, National 6 | National 5, National 6 | ||
| Drive System | Model | TZ370XS-LKM0851 | TZ370XS-LKM0851 | TZ370XS-LKM0851 | TZ370XS-LKM0851 | |
| Type | Permanent magnet synchronous motor | Permanent magnet synchronous motor | Permanent magnet synchronous motor | Permanent magnet synchronous motor | ||
| Rated/peak power (kw/rpm) | 75/120 | 75/120 | 75/120 | 75/120 | ||
| Rated/peak torque (N.m/rpm) | 350/850 | 350/850 | 350/850 | 350/850 | ||
| Power battery | Type | Lithium iron phosphate | Lithium iron phosphate | Lithium iron phosphate | Lithium iron phosphate | |
| Energy Density Wh/kg | 153.84 | 153.84 | 153.84 | 153.84 | ||
| Total power storage（kWh） | 106.95Ningde | 106.95Ningde | 106.95Ningde | 106.95Ningde | ||
| Recharge Mileage (km) | 300 Full load isokinetic method | 300 Full load isokinetic method | 300 Full load isokinetic method | 300 Full load isokinetic method | ||
| Dedicated performance | Cabinet material | Steel corrugated | ○ | ○ | ○ | ○ |
| Composite panels | ○ | ○ | ○ | ○ | ||
| Aluminum flat plate | ○ | ○ | ○ | ○ | ||
| One-sided door | ○ | ○ | ○ | ○ | ||
| Double-leaf side doors | ○ | ○ | ○ | ○ | ||
| Box volume | 25 m³ | 27 m³ | 29.5 m³ | 34 m³ | ||
| Cabinet size | 5100×2200×2200 | 5600×2200×2200 | 6100×2200×2200 | 7000×2200×2200 | ||
| Factory standards | The bottom plate is bent as a whole 150mm skirt, 304 stainless steel hardware, left and right side protection, rear protection, box rain test, reflective label | The bottom plate is bent as a whole 150mm skirt, 304 stainless steel hardware, left and right side protection, rear protection, box rain test, reflective label | The bottom plate is bent as a whole 150mm skirt, 304 stainless steel hardware, left and right side protection, rear protection, box rain test, reflective label | The bottom plate is bent as a whole 150mm skirt, 304 stainless steel hardware, left and right side protection, rear protection, box rain test, reflective label | ||
| Note: Please contact us for detailed configuration for confirmation, support customization | ||||||
