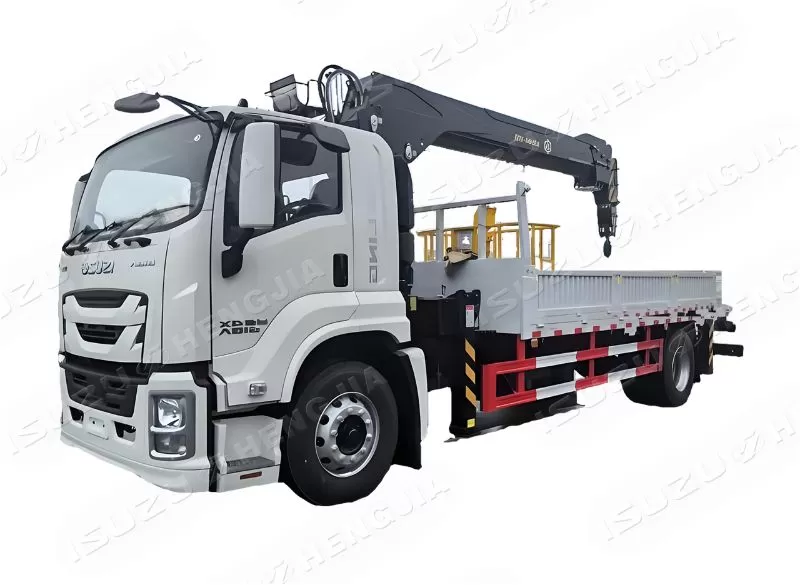

4X2 GIGA VC66 Truck Mounted Crane

Wheelbase	5600mm-5800mm
Drive	4X2/4X4
Engine Model	6UZ1/6WG1
Engine Horsepower	350HP-520HP
Load	10T
Crane tonnage	8000 Kg-1000Kg
Box material	Q235/Q355/High strength steel

Inquire Now Next Product

Product Configuration

Components	Truck crane is a kind of equipment that realizes the lifting, rotation and lifting of goods through hydraulic lifting and telescopic system. It mainly consists of four parts: chassis, crane, cargo box and hydraulic system. ‌
Main components	The carriage is made of high-quality steel, with strong rigidity and strength, durable and not easy to deform. The crane is divided into a base and a crane boom. A 360-degree turntable is installed on the base to facilitate the crane to work at any angle. The overall cross subbeam is configured to strengthen the beam strength and the load of the whole vehicle. The front and rear hydraulic legs are designed. The hydraulic system is equipped with a variety of proportional multi-way valves and balance valves to ensure the stability and safety of the body during work.
Durable	The crane is made of high-strength manganese steel, hexagonal working arm, and a single-bar zipper synchronization device. There are a variety of pump bodies built in the crane, and each pump body is connected through a multi-way valve and a balance valve to ensure that the crane works smoothly and stably.
Structural design	Lightweight design of the whole vehicle, modular production, high appearance and value-preserving. Made of high-strength steel, light weight, high strength, stable and reliable.
Vehicle advantages	Unique, the core parts of the synchronous telescopic boom are imported parts, with stable quality. The electronic control system is developed by the original factory, and the dual rotary drive is specially designed for the vehicle, which cooperates with each other to give full play to its comprehensive performance.

Vehicle Diagram

Single cylinder cable synchronization device
Rotating device
Hydraulic outriggers
Control device
Integral cross-beam
Crane boom

Vehicle Diagram

Truck Mounted Crane

Model	Cab type	WB	OAL	OW	OH	FOH	ROH	L	W	H
4X2VC66	row half	5600	9000	2550	3650	1335	2065	5400	2450	600
4X2VC66	row half	5800	9200	2550	3650	1335	2065	5600	2450	600
Note: The above dimensions are for reference only and can be customized as required

< td> < td>

Isuzu 4X2 VC66 Truck-mounted Crane
Wheelbase	5600	5800
Engine	380hp	350hp
Transmission	Fast 12JSD180TA	Fast 12JSD180TA
Box material	Q235/Q355	Q235/Q355
Cabinet size	5400X2450X600	5600X2450X600
Crane brand	XCMG/Palfinger	XCMG/Palfinger
Crane tonnage	8000 Kg	10000 Kg
Factory standard	Full rotation, no seat, standard front legs, left and right side protection, rear Protective and reflective stickers	Full rotation, no seat, standard front legs, left and right side protection, rear protection, reflective stickers

Product name			Isuzu 4X2 VC66 truck crane
Vehicle parameters	Vehicle wheelbase (mm)		5600	5800
	Vehicle size()		9000X2550X3650	9200X2550X3650
	Total mass (Kg)		22000	22000
	Curb mass (Kg)		11525	11825
	Number of passengers in the cab		3	3
	Maximum speed		90	90
	Tire specifications		385/65R22.5 20PR/ 315/80R22.5 20PR	385/65R22.5 20PR/ 315/80R22.5 20PR
	Number of tires		6+1	6+1
	Emission standards		National V, National VI	National V, National VI
Transmission parameters	Transmission model		Fast 12JSD180TA	Fast 12JSD180TA
	Gear position		12Forward +2 Reverse	12Forward +2 Reverse
	6UZ1-TCG60	257kw/350hp	/	○
	6UZ1-TCG61	279kw/380hp	○	/
Special performance	Box material	Q235	○	○
		Q355	○	○
	Box size		5400X2450X600	5600X2450X600
	Crane brand		XCMG/Palfinger	XCMG/Palfinger
	Crane tonnage		8000 Kg	10000 Kg
	Factory standard		Full rotation, no seat, standard front legs, left and right side protection, rear protection, reflective stickers	Full rotation, no seat, standard front legs, left and right side protection, rear protection, reflective stickers
Note: Please contact us for confirmation of detailed configuration, customization is supported
