Cargo Crane
| Wheelbase | 4350+1370mm |
| Drive | 6X4/6X6 |
| Engine model | 6HK1 |
| Engine horsepower | 300HP |
| Load | 10T |
| Crane tonnage | 10000Kg |
| Box material | Q235/Q355 |
Product Configuration
| Components | Truck crane is a kind of equipment that realizes the lifting, rotation and lifting of goods through hydraulic lifting and telescopic system. It mainly consists of four parts: chassis, crane, cargo box and hydraulic system. | |||
| Main components | The carriage is made of high-quality steel, with strong rigidity and strength, durable and not easy to deform. The crane is divided into a base and a crane boom. A 360-degree turntable is installed on the base to facilitate the crane to work at any angle. The overall cross subbeam is configured to strengthen the beam strength and the load of the whole vehicle. The front and rear hydraulic legs are designed. The hydraulic system is equipped with a variety of proportional multi-way valves and balance valves to ensure the stability and safety of the body during work. | |||
| Durable | The crane is made of high-strength manganese steel, hexagonal working arm, and a single-bar zipper synchronization device. There are a variety of pump bodies built in the crane, and each pump body is connected through a multi-way valve and a balance valve to ensure that the crane works smoothly and stably. | |||
| Structural design | Lightweight design of the whole vehicle, modular production, high appearance and value-preserving. Made of high-strength steel, light weight, high strength, stable and reliable. | |||
| Vehicle advantages | Unique, the core parts of the synchronous telescopic boom are imported parts, with stable quality. The electronic control system is developed by the original factory, and the dual rotary drive is specially designed for the vehicle, which cooperates with each other to give full play to its comprehensive performance. | |||
Vehicle Diagram
Single cylinder cable synchronization device
Rotating device
Hydraulic outriggers
Control device
Integral cross-beam
Crane boom

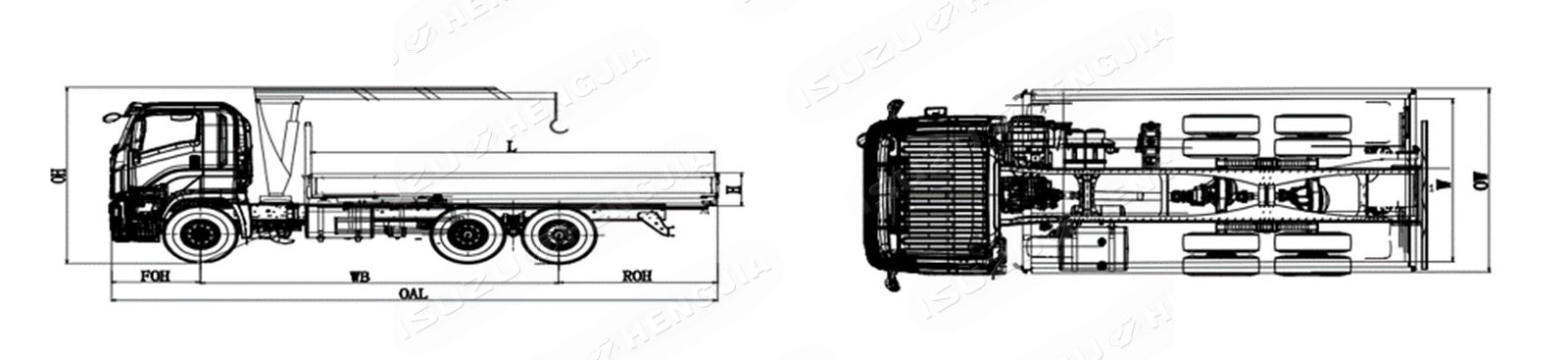

Vehicle Diagram
| Model | Cab type | WB | OAL | OW | OH | FOH | ROH | L | W | H |
| 6X4VC66 | row half | 4600+1370 | 9900 | 2550 | 3650 | 1335 | 2595 | 6600 | 2450 | 600 |
| 5100+1370 | 10500 | 2550 | 3650 | 1335 | 2695 | 6800 | 2450 | 600 | ||
| 5820+1370 | 11500 | 2550 | 3650 | 1335 | 2975 | 7600 | 2450 | 600 | ||
| Note: The above dimensions are for reference only and can be customized as required | ||||||||||
| Isuzu FVZ Truck Crane | |
| Wheelbase | 5100+1300 |
| Engine | 300hp |
| Transmission | Fast 9JS119TA |
| Cabinet material | Q235/Q355 |
| Box size | 6500X2450X600 |
| Crane brand | XCMG/Palfinger |
| Crane tonnage | 10000 Kg |
| Factory standard | Fully rotating, no seat, standard front legs, left and right side protection, rear protection, reflective stickers |
| Product name | Isuzu FVZ truck crane | ||
| Vehicle parameters | Vehicle wheelbase (mm) | 5100+1300 | |
| Vehicle size() | 9600X2490X2900 | ||
| Total mass (Kg) | 25000 | ||
| Curb mass (Kg) | 15050 | ||
| Number of passengers in the cab | 3 | ||
| Maximum speed | 105 | ||
| Tire specifications | 295/80R22.5 16PR | ||
| Number of tires | 10+1 | ||
| Emission standards | National V, National VI | ||
| Transmission parameters | Transmission model | Fast 9JS119TA | |
| Gear position | 9Forward +1 Reverse | ||
| 6HK1-TCH | 221kw/300hp | ○ | |
| 6HK1-TCG60 | 221kw/300hp | ○ | |
| Special performance | Box material | Q235 | ○ |
| Q355 | ○ | ||
| Box size | 6500X2450X600 | ||
| Crane brand | XCMG/Palfinger | ||
| Crane tonnage | 10000 Kg | ||
| Factory standard | Full rotation, no seat, standard front legs, left and right side protection, rear protection, reflective label | ||
| Note: Please contact us for detailed configuration confirmation, customization is supported | |||
