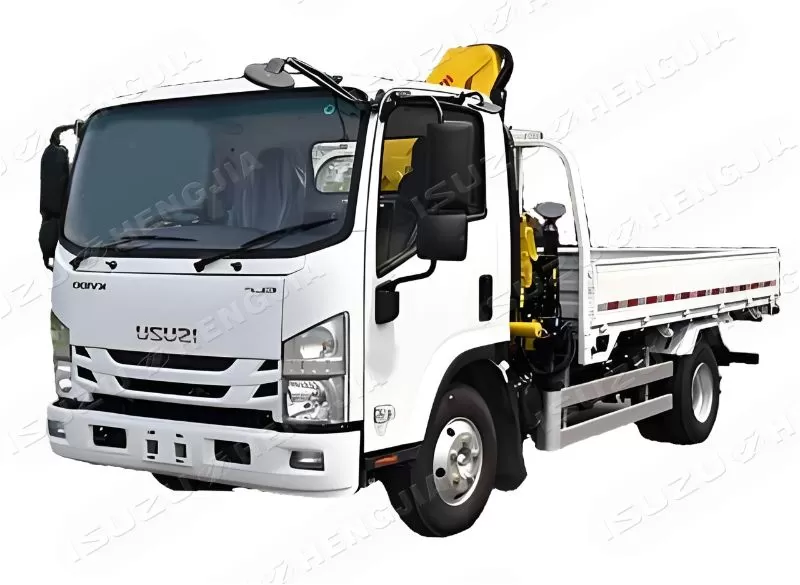

ISUZU NKR/KV100 Truck Mounted Crane

Wheelbase	2765mm-3815mm
Drive	4X2/4X4
Engine model	4KH1
Engine horsepower	98HP-140HP
Load	2T-3T
Crane tonnage	3000 Kg-4000Kg
Box material	Q235/Q355

Inquire Now Next Product

Product Configuration

Components	Truck crane is a kind of equipment that realizes the lifting, rotation and lifting of goods through hydraulic lifting and telescopic system. It mainly consists of four parts: chassis, crane, cargo box and hydraulic system. ‌
Main components	The carriage is made of high-quality steel, with strong rigidity and strength, durable and not easy to deform. The crane is divided into a base and a crane boom. A 360-degree turntable is installed on the base to facilitate the crane to work at any angle. The overall cross subbeam is configured to strengthen the beam strength and the load of the whole vehicle. The front and rear hydraulic legs are designed. The hydraulic system is equipped with a variety of proportional multi-way valves and balance valves to ensure the stability and safety of the body during work.
Durable	The crane is made of high-strength manganese steel, hexagonal working arm, and a single-bar zipper synchronization device. There are a variety of pump bodies built in the crane, and each pump body is connected through a multi-way valve and a balance valve to ensure that the crane works smoothly and stably.
Structural design	Lightweight design of the whole vehicle, modular production, high appearance and value-preserving. Made of high-strength steel, light weight, high strength, stable and reliable.
Vehicle advantages	Unique, the core parts of the synchronous telescopic boom are imported parts, with stable quality. The electronic control system is developed by the original factory, and the dual rotary drive is specially designed for the vehicle, which cooperates with each other to give full play to its comprehensive performance.

Vehicle Diagram

Single cylinder cable synchronization device
Rotating device
Hydraulic outriggers
Control device
Integral cross-beam
Crane boom

Vehicle Diagram

Truck Mounted Crane

model	Cab type	WB	OAL	OW	OH	FOH	ROH	L	W	H
KV100	Solo queue	3360	5995	2300	2900	1020	1615	3200	2200	380
KV100	Solo queue	3815	6800	2300	2900	1020	1965	3800	2200	380
Note: The above dimensions are for reference only and can be customized as required

Isuzu KV100 Truck Crane
Wheelbase	3360	3815
Engine	98hp/115hp/120hp/140hp	98hp/115hp/120hp/140hp
Transmission	Isuzu MSB	Isuzu MSB
Box material	Q235/Q355	Q235/Q355
Cabinet size	3200X2000X380	3800X2000X380
Crane brand	XCMG/Palfinger	XCMG/Palfinger
Crane tonnage	3000 Kg	4000 Kg
Factory standard	Full rotation, no seat, standard front legs, left and right side protection, rear Protective and reflective stickers

Product Name			Isuzu KV100 Truck Crane
Vehicle Parameters	Vehicle wheelbase (mm)		3360	3815
	Vehicle size()		5995X2300X2600	6800X2300X2600
	Total mass (Kg)		8280	8280
	Curb mass (Kg)		4920	5100
	Number of passengers in the cab		2	2
	Maximum speed		98	98
	Tire specifications		7.00R16LT 8PR	7.50R16LT 14PR
	Number of tires		6+1	6+1
	Emission standards		National V, National VI	National V, National VI
Transmission parameters	Transmission model		Isuzu MSB	Isuzu MSB
	Gear position		5Forward + 1 Reverse	5Forward + 1 Reverse
	4KH1CN5LS	72kw/98hp	○	○
	4KH1CN5MD	83kw/115hp	○	○
	4KH1N6MD	101kW/140hp	○	-
	4KH1CN6LB	88kw/120hp	○	○
Special performance	Cabinet material	Q235	○	○
	Cabinet material	Q355	○	○
	Cabinet size		3200X2000X380	3800X2000X380
	Crane brand		XCMG/Palfinger	XCMG/Palfinger
	Crane tonnage		3000 Kg	4000 Kg
	Factory standard		Full rotation, no seat, standard front outrigger, left and right side protection, rear protection, reflective label	Full rotation, no seat, standard front legs, left and right side protection, rear protection, reflective stickers
Note: Please contact us for detailed configuration, support customization
