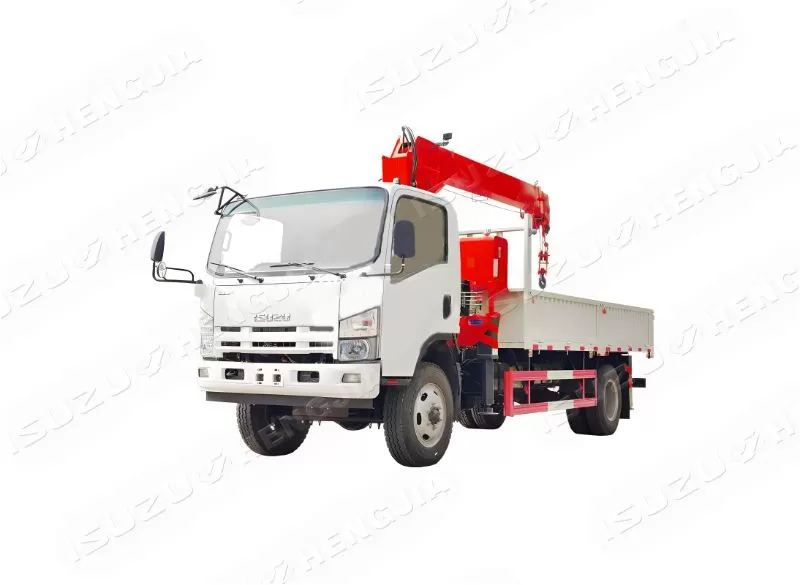

ISUZU NPR/700P Truck Mounted Crane

Wheelbase	3360mm-3815mm
Drive	4X2/4X4
Engine model	4HK1
Engine horsepower	189HP-205HP
Load	3.5T-4.5T
Crane tonnage	5000 Kg-6300Kg
Box material	Q235/Q355

Inquire Now Next Product

Product Configuration

Components	Truck crane is a kind of equipment that realizes the lifting, rotation and lifting of goods through hydraulic lifting and telescopic system. It mainly consists of four parts: chassis, crane, cargo box and hydraulic system. ‌
Main components	The carriage is made of high-quality steel, with strong rigidity and strength, durable and not easy to deform. The crane is divided into a base and a crane boom. A 360-degree turntable is installed on the base to facilitate the crane to work at any angle. The overall cross subbeam is configured to strengthen the beam strength and the load of the whole vehicle. The front and rear hydraulic legs are designed. The hydraulic system is equipped with a variety of proportional multi-way valves and balance valves to ensure the stability and safety of the body during work.
Durable	The crane is made of high-strength manganese steel, hexagonal working arm, and a single-bar zipper synchronization device. There are a variety of pump bodies built in the crane, and each pump body is connected through a multi-way valve and a balance valve to ensure that the crane works smoothly and stably.
Structural design	Lightweight design of the whole vehicle, modular production, high appearance and value-preserving. Made of high-strength steel, light weight, high strength, stable and reliable.
Vehicle advantages	Unique, the core parts of the synchronous telescopic boom are imported parts, with stable quality. The electronic control system is developed by the original factory, and the dual rotary drive is specially designed for the vehicle, which cooperates with each other to give full play to its comprehensive performance.

Vehicle Diagram

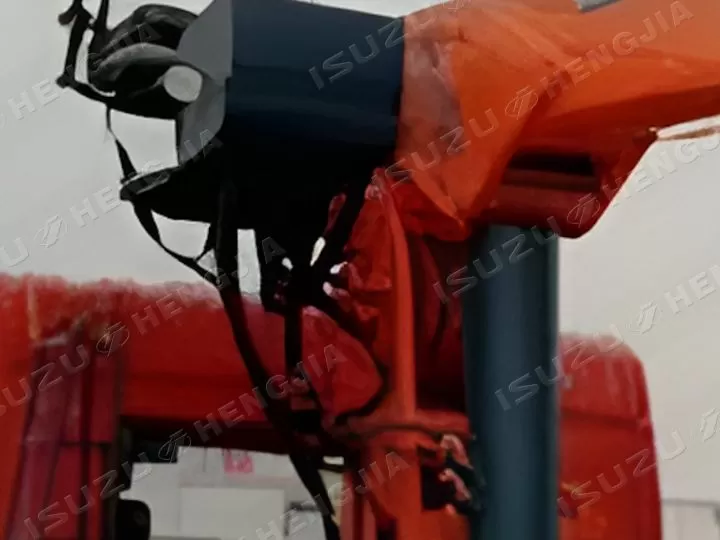

Single cylinder cable synchronization device

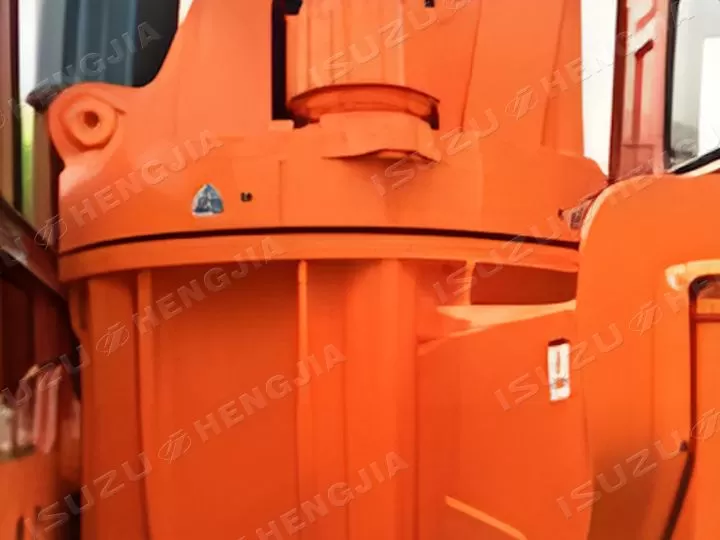

Rotating device

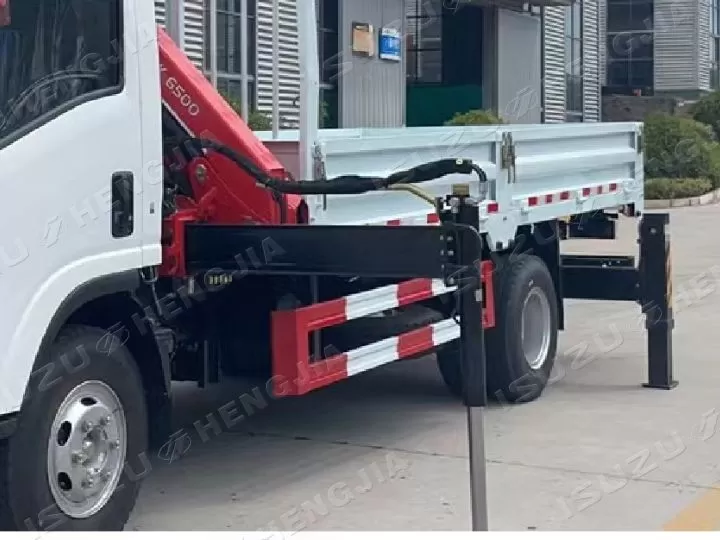

Hydraulic outriggers

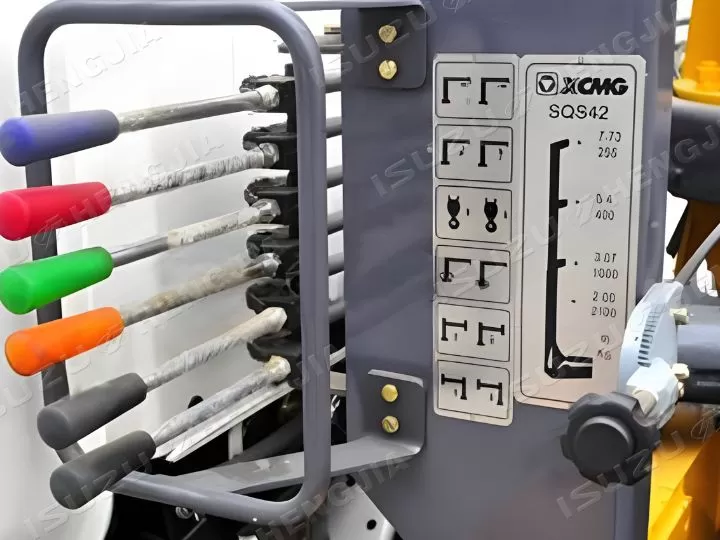

Control device

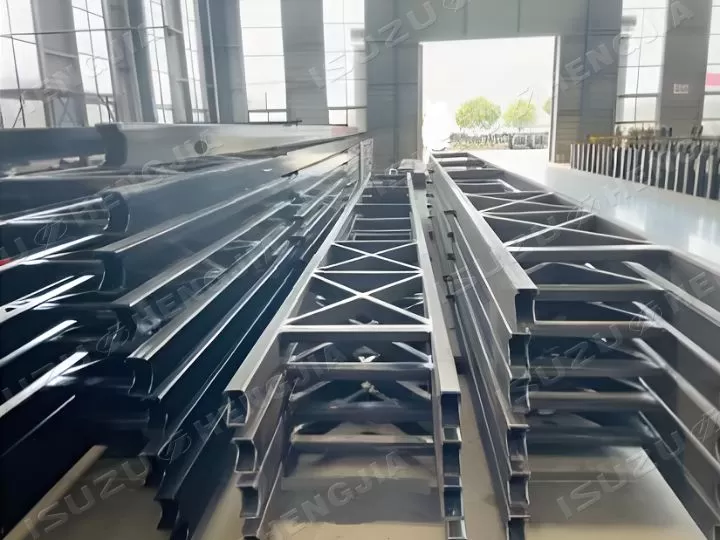

Integral cross-beam

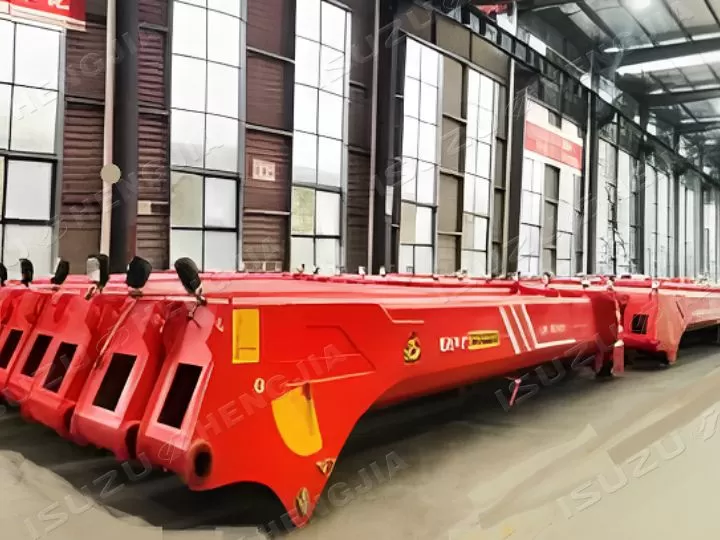

Crane boom

Vehicle Diagram

Truck Mounted Crane

Model	Cab type	WB	OAL	OW	OH	FOH	ROH	L	W	H
700P	Solo queue	3360	5995	2300	2900	1110	1525	3400	2200	380
700P	Solo queue	3815	6800	2300	2900	1110	1875	4200	2200	380
Note: The above dimensions are for reference only and can be customized as required

Isuzu 700P Truck-mounted Crane
Wheelbase	3360	3815
Engine	189hp/205hp	189hp/205hp
Transmission	Isuzu MLD	Isuzu MLD
Box material	Q235/Q355	Q235/Q355
Cabinet size	3400X2200X380	4200X2200X380
Crane brand	XCMG/Palfinger	XCMG/Palfinger
Crane tonnage	5000 Kg	6300 Kg
Factory standard	Full rotation, no seat, standard front legs, left and right side protection, rear protection, reflective stickers	Full rotation, no seat, standard front legs, left and right side protection, rear protection , reflective cursor stickers

Product Name			Isuzu 700P Truck Crane
Vehicle Parameters	Wheelbase (mm)		3360	3815
	Vehicle size ()		5995X2300X2900	6800X2300X2900
	Total mass (Kg)		10550	10550
	Curb mass (Kg)		5970	6180
	Number of passengers in the cab		3	3
	Maximum speed		110	110
	Tire specifications		235/75R17.5 16PR	235/75R17.5 16PR
	Number of tires		6+1	6+1
	Emission standards		National V, National VI	National V, National VI
Transmission parameters	Transmission model		Isuzu MLD	Isuzu MLD
	Gear position		6Forward + 1 Reverse	6Forward + 1 Reverse
	4HK1-TCG60	151kw/205hp	○	○
	4HK1-TCG61	139kw/189hp	○	○
Special performance	Box material	Q235	○	○
		Q355	○	○
	Box size		3400X2200X380	4200X2200X380
	Crane brand		XCMG/Palfinger	XCMG/Palfinger
	Crane tonnage		5000 Kg	6300 Kg
	Factory standard		Full rotation, no seat, standard front legs, left and right side protection, rear protection, reflective stickers	Full rotation, no seat, standard front legs, left and right side protection, rear protection, reflective stickers
Note: Please contact us for confirmation of detailed configuration, support customization
