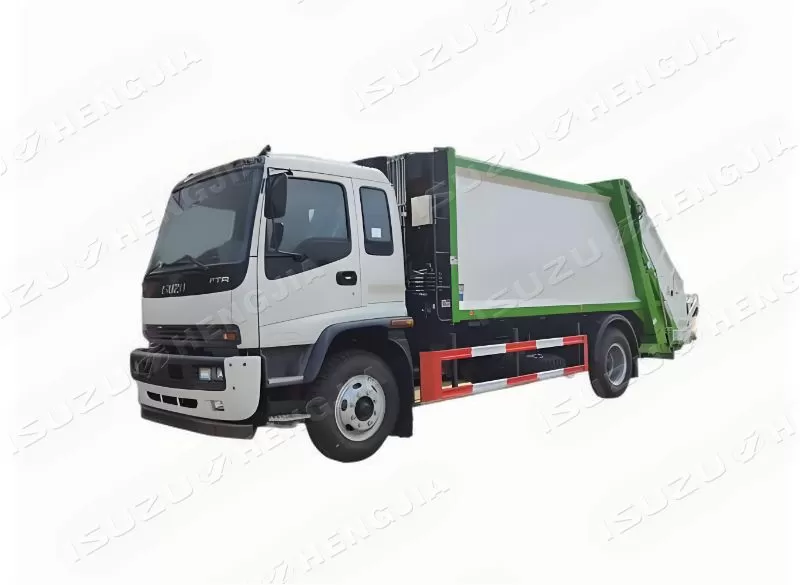

Compressed Garbage Truck
| Wheelbase | 3900mm-5550mm |
| Drive | 4X2/4X4 |
| Engine model | 4HK1 |
| Engine horsepower | 205HP-224HP |
| Load | 9T-10T |
| Box volume | 8m³-14m³ |
| Box material | Q355 |
Product Configuration
| Box body | The box body is a rectangular box body, made of Q355 high-strength steel, with strong rigidity and strength, durable and not easy to deform | |||
| Pressing and filling mechanism | The pressing and filling mechanism is composed of a slide plate and a scraper. The garbage in the bucket is pressed into the box body by sliding the slide plate up and down and rotating the scraper. All components of the linkage operation adopt a beam-slab structure with good stress resistance, which is strong and light: the hopper of the filler is made of wear-resistant high-strength steel, which has good wear resistance and increases the service life. A sewage tank is installed under the filler to prevent secondary pollution. | |||
| Main components | Domestic high-quality components such as Suizhou Xingguangtong oil cylinder, Zhongmei multi-way valve, Hefei Changyuan gear pump, Tianhe high-pressure oil pipe, CNA electronic control system, etc. are preferred | |||
| Spraying | Domestic high-quality paint is preferred, with strong adhesion, wear resistance, acid and alkali resistance, and good heat resistance. | |||
| Lifting mechanism | The lifting device adopts a hydraulic lifting safety circuit, and a one-way balance valve is set on the lifting cylinder in the wave pressure system. The valve cuts off the direct connection between the lifting cylinder and the wave pressure hose. Even if the oil pipe bursts, the filler will not fall suddenly, which improves the safety of use. | |||
| Professional customization | Seven years of modification experience, free customization of modification plans according to vehicle needs | |||
| Vehicle advantages | Isuzu chassis + high-quality cargo compartment perfect match. During the development and design process, the chassis and body are matched and designed according to the whole vehicle thinking to give full play to their comprehensive performance, not simply pieced together. | |||
Vehicle Diagram
Box
Hydraulic mechanism
Hanging barrel flip
Pressure filling mechanism
Lifting mechanism
Control mechanism

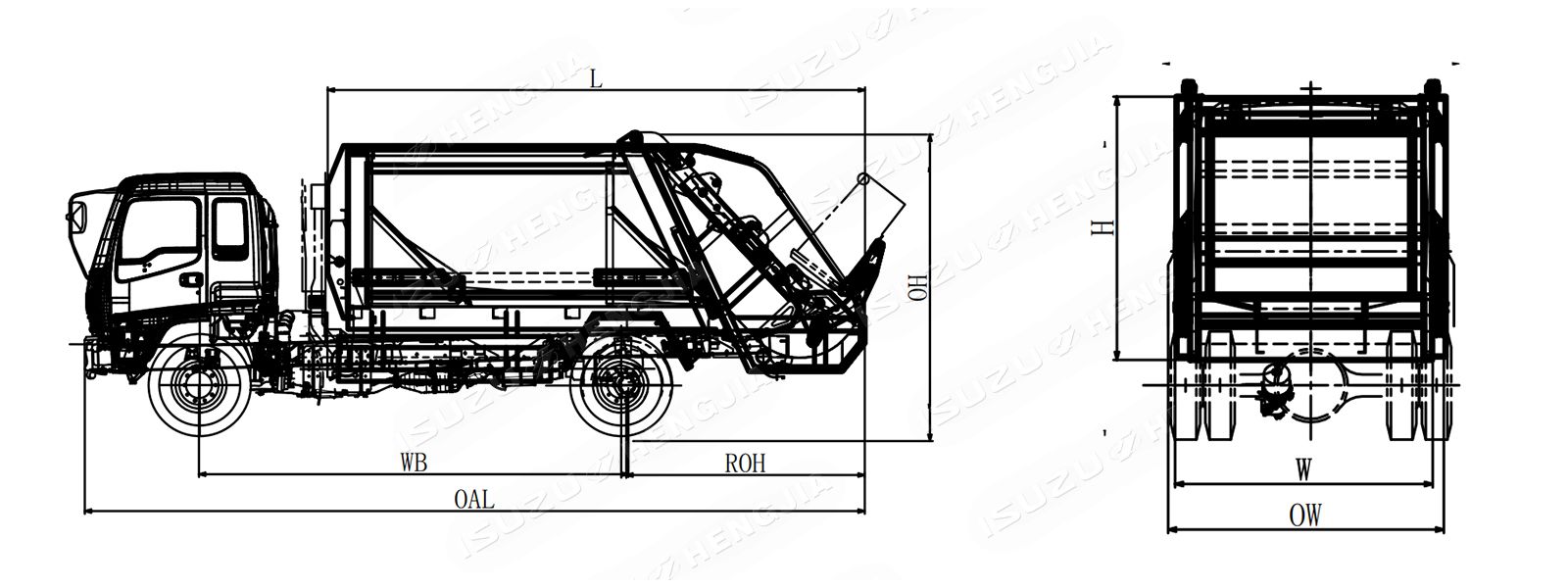

Vehicle Diagram
| Model | Cab type | WB | OAL | OW | OH | FOH | ROH | L | W | H |
| FTR | row half | 3900 | 7600 | 2550 | 3200 | 1335 | 2365 | 5100 | 2450 | 2300 |
| 4500 | 7900 | 2550 | 3200 | 1335 | 2065 | 5650 | 2450 | 2300 | ||
| 5550 | 9800 | 2550 | 3200 | 1335 | 2915 | 5900 | 2450 | 2300 | ||
| Note: The above dimensions are for reference only and can be customized as required | ||||||||||
| Isuzu FTR Compact Garbage Truck | |||
| Wheelbase | 3900 | 4500 | 5550 |
| Box volume | 8 m³ | 10 m³ | 14 m³ |
| Box size | 5300×2450×2300 | 5600×2450×2300 | 6900×2450×2300 |
| Engine | 205hp/224hp | 205hp/224hp | 205hp/224hp |
| Transmission | Isuzu MLD | Isuzu MLD | Isuzu MLD |
| Oil cylinder | Suizhou Xingguangtong | Suizhou Xingguangtong | Suizhou Xingguangtong |
| Multi-way valve | Zhongmei | Zhongmei | Zhongmei |
| Electronic control system | Domestic CAN | Domestic CAN | Domestic CAN |
| Box material | Q355 | ||
| Product name | Isuzu FTR Compressed Garbage Truck | ||||
| Vehicle parameters | Vehicle wheelbase (mm) | 3900 | 4500 | 5550 | |
| Vehicle size() | 7600×2550×3200 | 7800×2550×3200 | 9800×2550X3200 | ||
| Gross mass (Kg) | 18000 | 18000 | 18000 | ||
| Curb mass (Kg) | 6830 | 7120 | 7530 | ||
| Number of passengers in the cab | 3 | 3 | 3 | ||
| Maximum speed | 110 | 110 | 110 | ||
| Tire specifications | 11.00R22.5 16PR | 11.00R22.5 16PR | 11.00R22.5 16PR | ||
| Number of tires | 6+1 | 6+1 | 6+1 | ||
| Emission standards | National V, National VI | National V, National VI | National V, National VI | ||
| Transmission parameters | Transmission model | Isuzu MLD | Isuzu MLD | Isuzu MLD | |
| Gear gear | 6Forward + 1 Reverse | 6Forward + 1 Reverse | 6Forward + 1 Reverse | ||
| 4HK1-TC50 | 151kw/205hp | ○ | ○ | ○ | |
| 4HK1-TCG60 | 151kw/205hp | ○ | ○ | ○ | |
| 4HK1-TCG62 | 164kw/224hp | ○ | ○ | ○ | |
| Special performance | Box material | Q355 | ○ | ○ | ○ |
| Box volume | 8 m³ | 10 m³ | 14 m³ | ||
| Box size | 5300×2450×2300 | 5600×2450×2300 | 6900×2450×2300 | ||
| Cylinder | Suizhou Xingguangtong | Suizhou Xingguangtong | Suizhou Xingguangtong | ||
| Multi-way valve | Zhongmei | Zhongmei | Zhongmei | ||
| Electronic control system | Domestic CAN | Domestic CAN | Domestic CAN | ||
| Factory standard | Box material side 4 bottom 5, left and right side protection, reflective stickers | Box material side 4 bottom 5, left and right side protection, reflective stickers | Box material side 4 bottom 5, left and right side protection, reflective stickers | ||
| Note: Please contact us for confirmation of detailed configuration, support customization | |||||
