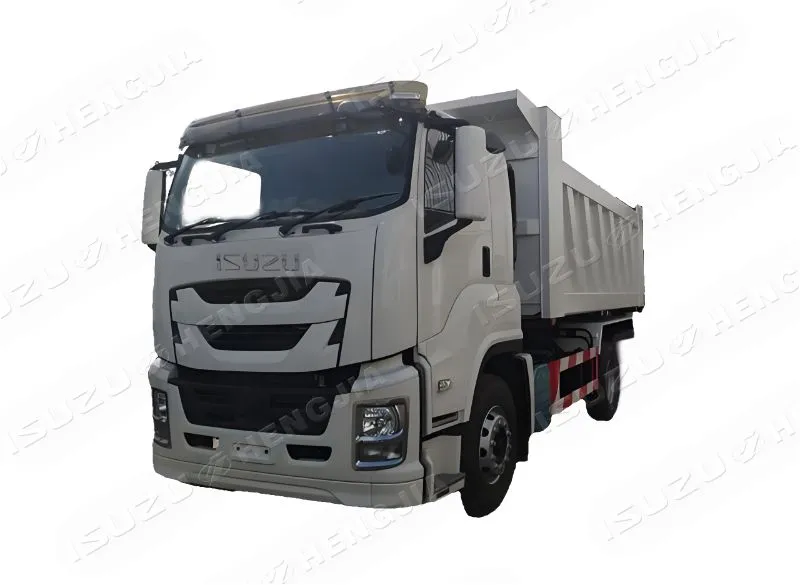

Dump Truck
| Drive | 4X2/4X4 |
| Engine model | 6UZ1/6WG1 |
| Engine horsepower | 350HP-520HP |
| Load | 10T |
| Box volume | 11m³ |
| Box material | Q235/Q355/high-strength steel |
Product Configuration
| Structure | The double-bar middle top structure of the dump truck is adopted, which makes the lifting stable and easy to operate. | |||
| Durability | The oil cylinder has strong lifting force, and the lifting durability test reaches 20,000 times without oil leakage | |||
| Lifting angle | The lifting angle of the car body of some models can reach 48°, and the lifting and lowering time of the car body is ≤15 seconds, realizing fast and stable unloading. | |||
| Parts | The dumping mechanism adopts well-known domestic brands, with high reliability and less maintenance | |||
| Box | The entire box is made of high-carbon steel, with strong rigidity and strength, durable and not easy to deform | |||
| Professional customization | Seven years of modification experience, free customization of modification plans according to vehicle needs | |||
| Vehicle advantages | Isuzu chassis + high-quality dump cargo box + domestic high-quality tilting mechanism are perfectly matched. During the development and design process, the chassis, body, and dumping system are matched and designed according to the whole vehicle concept to give full play to their comprehensive performance, not simply pieced together. | |||
Vehicle Diagram
Lift control valve
Power take-off assembly
Hydraulic cylinder
Side protection
Tianzi grid box
Hydraulic oil tank
Vehicle Diagram
| Model | Cab type | WB | OAL | OW | OH | FOH | ROH | L | W | H |
| 4X2 VC66 | Row in half | 3900 | 7250 | 2550 | 3200 | 1335 | 2015 | 4600 | 2400 | 1000 |
| Note: The above dimensions are for reference and can be customized according to needs | ||||||||||
| Isuzu 4X2 VC66 dump truck | |
| wheelbase | 3900 |
| Box volume | 11 m³ |
| Cabinet size | 4600×2400×1000 |
| motor | 380hp |
| Gearbox | Fast 12JSD180TA |
| Cabinet material | Q345/Q235/High strength steel |
| Product name | Isuzu 4X2 VC66 dump truck | ||
| Vehicle parameters | Wheelbase (mm) | 3900 | |
| Vehicle size() | 7250X2550X3200 | ||
| Gross weight (Kg) | 22000 | ||
| Curb weight (Kg) | 11625 | ||
| Number of passengers in the cab | 3 | ||
| Top speed | 105 | ||
| Tire specifications | 385/65R22.5 20PR/ 315/80R22.5 20PR | ||
| Number of tires | 6+1 | ||
| Emission standards | National VI | ||
| Transformation parameters | Transmission model | Fast 12JSD180TA | |
| Gear gear | 12Forward +2 Reverse | ||
| 6UZ1-TCG61 | 279kw/380hp | ○ | |
| Dedicated performance | Cabinet material | Q235 | ○ |
| Q345 | ○ | ||
| High-strength steel | ○ | ||
| Lifting method | Front top lift | ||
| Box volume | 11m³ | ||
| Cabinet size | 4600×2400×1000 | ||
| Factory standards | The bottom plate is 4mm / side plate 3mm, the flip mechanism through the shaft, the integral rear fender is welded on the cargo box, the left and right side protection, the rear protection, and the reflective label | ||
| Note: Please contact us for detailed configuration for confirmation, support customization | |||
