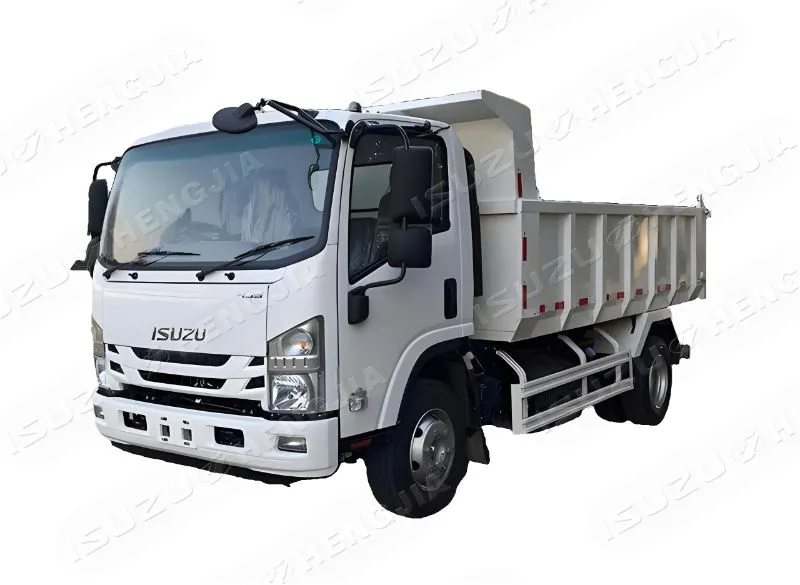

ISUZU NKR /700P Dump Truck

Inquire Now Next Product

Product Configuration

Structure	The double-bar middle top structure of the dump truck is adopted, which makes the lifting stable and easy to operate.
Durability	The oil cylinder has strong lifting force, and the lifting durability test reaches 20,000 times without oil leakage
Lifting angle	The lifting angle of the car body of some models can reach 48°, and the lifting and lowering time of the car body is ≤15 seconds, realizing fast and stable unloading.
Parts	The dumping mechanism adopts well-known domestic brands, with high reliability and less maintenance
Box	The entire box is made of high-carbon steel, with strong rigidity and strength, durable and not easy to deform
Professional customization	Seven years of modification experience, free customization of modification plans according to vehicle needs
Vehicle advantages	Isuzu chassis + high-quality dump cargo box + domestic high-quality tilting mechanism are perfectly matched. During the development and design process, the chassis, body, and dumping system are matched and designed according to the whole vehicle concept to give full play to their comprehensive performance, not simply pieced together.

Vehicle Diagram

Vehicle Diagram

ump Truck

Model	Cab type	WB	OAL	OW	OH	FOH	ROH	L	W	H
700P	Single row	3360	5200	2300	2300	1110	730	3800	2200	500
700P	Single row	3815	5800	2300	2300	1110	875	4200	2200	500
Note: The above dimensions are for reference and can be customized according to needs

Product name			Isuzu 700P dump truck
Vehicle parameters	Wheelbase (mm)		3360	3815
	Vehicle size()		5200X2300X2300	5800X2300X2300
	Gross weight (Kg)		10550	10550
	Curb weight (Kg)		4275	4850
	Number of passengers in the cab		2	2
	Top speed		110	110
	Tire specifications		235/75R17.5 16PR	235/75R17.5 16PR
	Number of tires		6+1	6+1
	Emission standards		National 5, National 6	National 5, National 6
Transformation parameters	Transmission model		Isuzu MLD	Isuzu MLD
	Gear gear		6Forward + 1 Reverse	6Forward + 1 Reverse
	4HK1-TCG60	151kw/205hp	○	○
	4HK1-TCG61	139kw/189hp	○	○
Dedicated performance	Cabinet material	Q235	○	○
		Q345	○	○
		High-strength steel	○	○
	Lifting method		Parallel bars lift	Parallel bars lift
	Box volume		5 m³	6 m³
	Cabinet size		3800×2100×600	4200X2100X600
	Factory standards		The bottom plate is 4mm / side plate 3mm, the flip mechanism through the shaft, the integral rear fender is welded on the cargo box, the left and right side protection, the rear protection, and the reflective label	The bottom plate is 4mm / side plate 3mm, the flip mechanism through the shaft, the integral rear fender is welded on the cargo box, the left and right side protection, the rear protection, and the reflective label
Note: Please contact us for detailed configuration for confirmation, support customization
