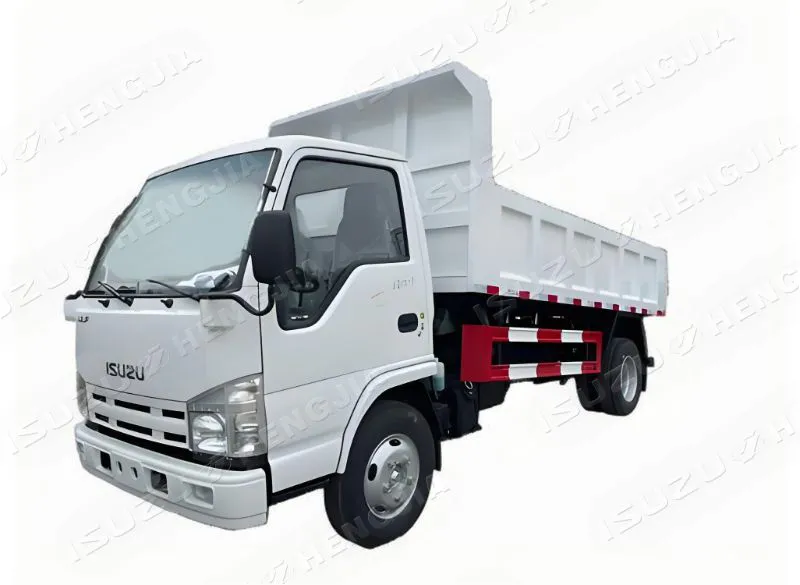

ISUZU NKR EV/EV100 Dump Truck

Drive motor model	YTD060W23
Generator power	60KW
Load	2T-4T
Power battery storage capacity	96.77kWh-106.95kWh
Cruising range	330-433km
Box volume	4m³-5m³

Inquire Now Next Product

Product Configuration

Structure	The double-bar middle top structure of the dump truck is adopted, which makes the lifting stable and easy to operate.
Durability	The oil cylinder has strong lifting force, and the lifting durability test reaches 20,000 times without oil leakage
Lifting angle	The lifting angle of the car body of some models can reach 48°, and the lifting and lowering time of the car body is ≤15 seconds, realizing fast and stable unloading.
Parts	The dumping mechanism adopts well-known domestic brands, with high reliability and less maintenance
Box	The entire box is made of high-carbon steel, with strong rigidity and strength, durable and not easy to deform
Professional customization	Seven years of modification experience, free customization of modification plans according to vehicle needs
Vehicle advantages	Isuzu chassis + high-quality dump cargo box + domestic high-quality tilting mechanism are perfectly matched. During the development and design process, the chassis, body, and dumping system are matched and designed according to the whole vehicle concept to give full play to their comprehensive performance, not simply pieced together.

Vehicle Diagram

Lift control valve
Power take-off assembly
Hydraulic cylinder
Side protection
Tianzi grid box
Hydraulic oil tank

Vehicle Diagram

ump Truck

Model	Cab type	WB	OAL	OW	OH	FOH	ROH	L	W	H
EV100	Single row	3360	5600	1950	2300	1015	1225	3800	1900	500
EV100	Single row	3815	6400	1950	2300	1015	1570	4500	1900	500
Note: The above dimensions are for reference and can be customized according to needs

Isuzu EV100 dump truck
wheelbase	3360	3815
Box volume	4 m³	5 m³
Cabinet size	3800X1900X500	4500×1900×500
Drive System (kw/rpm)	60/110	60/110
Cruising range (km)	330km/365km/433km	210km/255km

Product name			Isuzu EV100 dump truck
Vehicle parameters	Wheelbase (mm)		3360			3815
	Vehicle size()		5600X1950X2300			6400X1950X2300
	Gross weight (Kg)		4495/7300			7300
	Curb weight (Kg)		3185			3750
	Number of passengers in the cab		2			2
	Top speed		98			98
	Tire specifications		7.00R16LT 8PR			7.00R16LT 8PR
	Number of tires		6+1			6+1
Drive System	Model		YTD060W23			YTD060W23
	Type		Permanent magnet synchronous motor			Permanent magnet synchronous motor
	Rated/peak power (kw/rpm)		60/110			60/110
	Rated/peak torque (N.m/rpm)		310/1000			310/1000
Power battery	Type		Lithium iron phosphate			Lithium iron phosphate
	Energy Density Wh/kg		130.33	146.7	153.84	153.84	130.33
	Total power storage（kWh）		96.77Guoxuan	81.14Ningde	106.95Ningde	106.95Ningde	96.77Guoxuan
Recharge mileage（km)			365 Full load isokinetic method	330 Full load isokinetic method	433 Full load isokinetic method	255Full load isokinetic method	210Full load isokinetic method
Dedicated performance	Cabinet material	Q235	○			○
		Q345	○			○
		High-strength steel	○			○
	Lifting method		Parallel bars lift			Parallel bars lift
	Box volume		4 m³			5 m³
	Cabinet size		3800X1900X500			4500×1900×500
	Factory standards		The bottom plate is 4mm / side plate 3mm, the flip mechanism through the shaft, the integral rear fender is welded on the cargo box, the left and right side protection, the rear protection, and the reflective label			The bottom plate is 4mm / side plate 3mm, the flip mechanism through the shaft, the integral rear fender is welded on the cargo box, the left and right side protection, the rear protection, and the reflective label
Note: Please contact us for detailed configuration for confirmation, support customization
