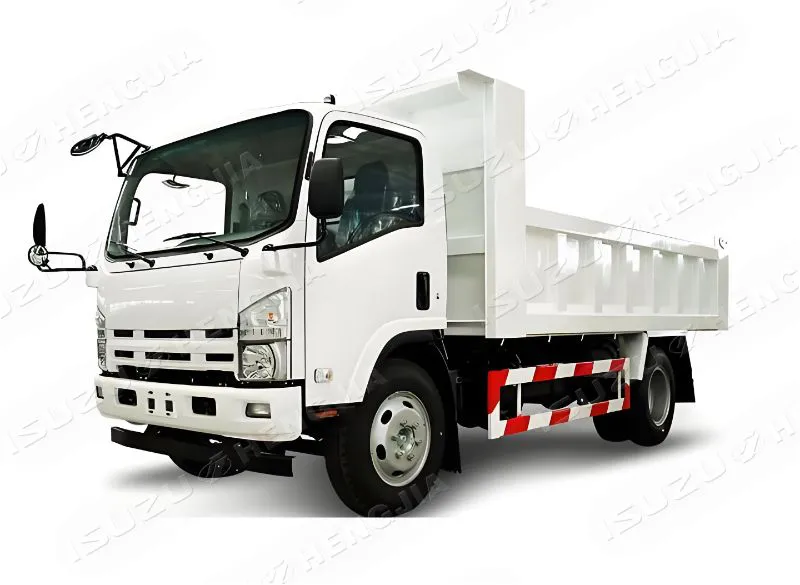

ISUZU NKR /M100 Dump Truck

Wheelbase	2795mm-3815mm
Drive	4X2/4X4
Engine model	4KH1
Engine horsepower	115HP-130HP
Load	2T-6T
Box volume	3m³-5 m³
Box material	Q235/Q355/high-strength steel

Inquire Now Next Product

Product Configuration

Structure	The double-bar middle top structure of the dump truck is adopted, which makes the lifting stable and easy to operate.
Durability	The oil cylinder has strong lifting force, and the lifting durability test reaches 20,000 times without oil leakage
Lifting angle	The lifting angle of the car body of some models can reach 48°, and the lifting and lowering time of the car body is ≤15 seconds, realizing fast and stable unloading.
Parts	The dumping mechanism adopts well-known domestic brands, with high reliability and less maintenance
Box	The entire box is made of high-carbon steel, with strong rigidity and strength, durable and not easy to deform
Professional customization	Seven years of modification experience, free customization of modification plans according to vehicle needs
Vehicle advantages	Isuzu chassis + high-quality dump cargo box + domestic high-quality tilting mechanism are perfectly matched. During the development and design process, the chassis, body, and dumping system are matched and designed according to the whole vehicle concept to give full play to their comprehensive performance, not simply pieced together.

Vehicle Diagram

Lift control valve
Power take-off assembly
Hydraulic cylinder
Side protection
Tianzi grid box
Hydraulic oil tank

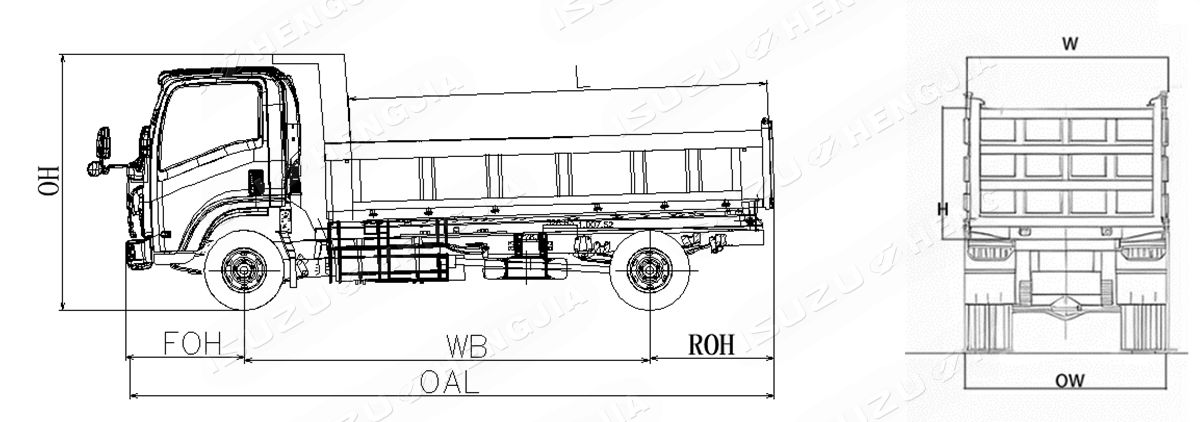

Vehicle Diagram

ump Truck

Model	Cab type	WB	OAL	OW	OH	FOH	ROH	L	W	H
M100	Single row	2765	5000	2220	2300	1015	1220	3200	2200	500
		3360	5600	2220	2300	1015	1225	3600	2200	500
		3815	6400	2220	2300	1015	1570	4300	2200	500
Note: The above dimensions are for reference and can be customized according to needs

Isuzu M100 dump truck
wheelbase	2765	3360	3815
Box volume	3 m³	4 m³	5 m³
Cabinet size	3000×2150×500	3600X2150×500	4300×2150×500
motor	115hp/120hp/130hp	115hp/120hp/130hp	115hp/120hp/130hp
Gearbox	Isuzu MSB	Isuzu MSB	Isuzu MSB

Product name			Isuzu M100 dump truck
Vehicle parameters	Wheelbase (mm)		2795	3365	3815
	Vehicle size()		5000X2220X2440	5995X2220X2440	6800X2220X2440
	Gross weight (Kg)		4495	8280	7300
	Curb weight (Kg)		3250	3565	3820
	Number of passengers in the cab		2	2	2
	Top speed		98	98	98
	Tire specifications		7.50R16LT 14PR	7.50R16LT 14PR	7.50R16LT 14PR
	Number of tires		6+1	6+1	6+1
	Emission standards		National VI	National 5, National 6	National 5, National 6
Transformation parameters	Transmission model		Isuzu MSB	Isuzu MSB	Isuzu MSB
	Gear gear		5Forward + 1 Reverse	5Forward + 1 Reverse	5Forward + 1 Reverse
	4KH1CN5LS	72kw/98hp	\	○	\
	4KH1CN5MD	83kw/115hp	\	○	\
	4KH1CN5HD	95kw/130hp	○	○	○
Dedicated performance	Cabinet material	Q235	○	○	○
		Q345	○	○	○
		High-strength steel	○	○	○
	Lifting method		Parallel bars lift	Parallel bars lift	Parallel bars lift
	Box volume		3 m³	4 m³	5 m³
	Cabinet size		3000×2150×500	3600X2150×500	4300×2150×500
	Factory standards		The bottom plate is 4mm / side plate 3mm, the flip mechanism through the shaft, the integral rear fender is welded on the cargo box, the left and right side protection, the rear protection, and the reflective label	The bottom plate is 4mm / side plate 3mm, the flip mechanism through the shaft, the integral rear fender is welded on the cargo box, the left and right side protection, the rear protection, and the reflective label	The bottom plate is 4mm / side plate 3mm, the flip mechanism through the shaft, the integral rear fender is welded on the cargo box, the left and right side protection, the rear protection, and the reflective label
Note: Please contact us for detailed configuration for confirmation, support customization
