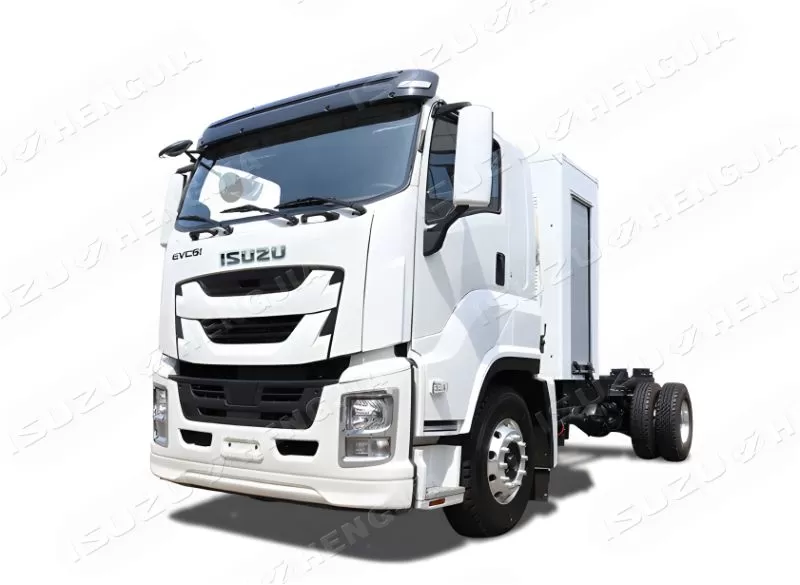

4X2 EVC61 TRATOR

Wheelbase	3900mm
Drive	4X2/6×4
Drive motor model	TZ460XS-LKM2401
Generator power	270KW
Traction mass	18T-22T
Power battery storage capacity	281.91kWh
Cruising range	240km

Inquire Now Next Product

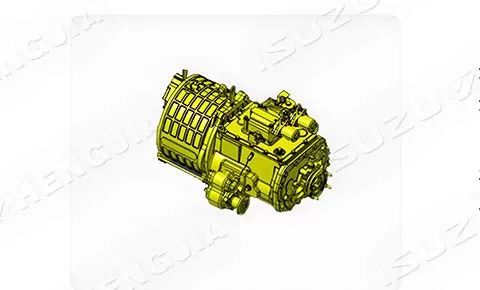

Drive Motor

Powerful
Maximum power: 185KW
Maximum torque: 1300N.m
Permanent magnet synchronous motor, sufficient power
Maximum speed 100km/h.

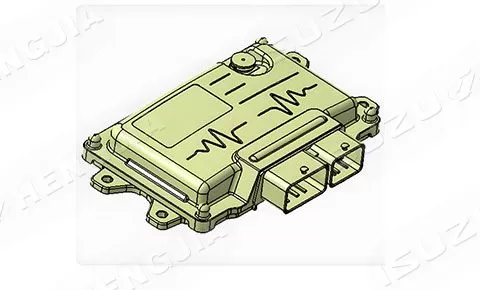

Vehicle Control Unit (VCU)

The hill assist system is set up to prevent slipping
The high-efficiency energy recovery system (maximum recovery efficiency of 20%) has a longer battery life; it is equipped with a cruise control function, making driving easy and comfortable.

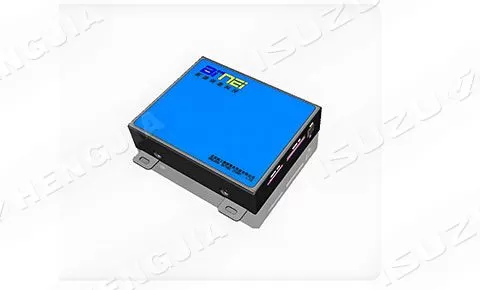

Smart Terminal

Precise Management
Real-time monitoring of vehicle fault information, vehicle location and driver driving behavior, and the remote monitoring platform can monitor vehicle status in real time
Frame

The cutting-edge iso-stress concept is adopted to achieve lightweight, compactness and flatness. Compared with the same size, the chassis of the same load level is 11% lighter than that of competitors.

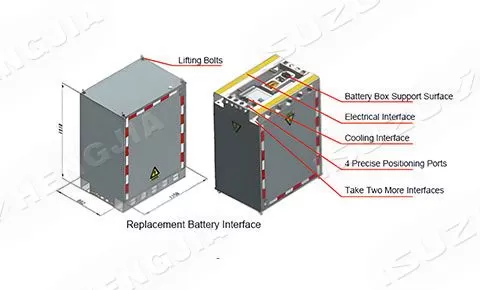

Battery Pack

Adopt high-density lithium iron phosphate battery, high safety and reliability, cycle life can reach 3000 times. Fast charging speed. Long battery life, up to 8 years.

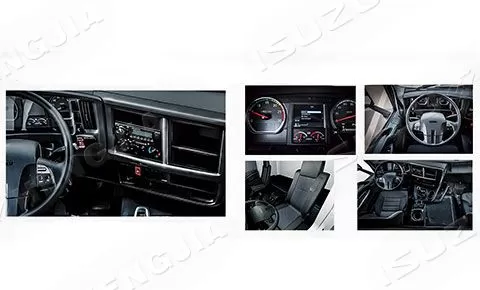

Complete Vehicle

Comfortable driving environment
Highly integrated comfort and efficiency, focused on reducing driving fatigue
Reasonable partition configuration based on frequency of useComfortable driving environment
Highly integrated comfort and efficiency, focused on reducing driving fatigue
Reasonable partition configuration based on frequency of use

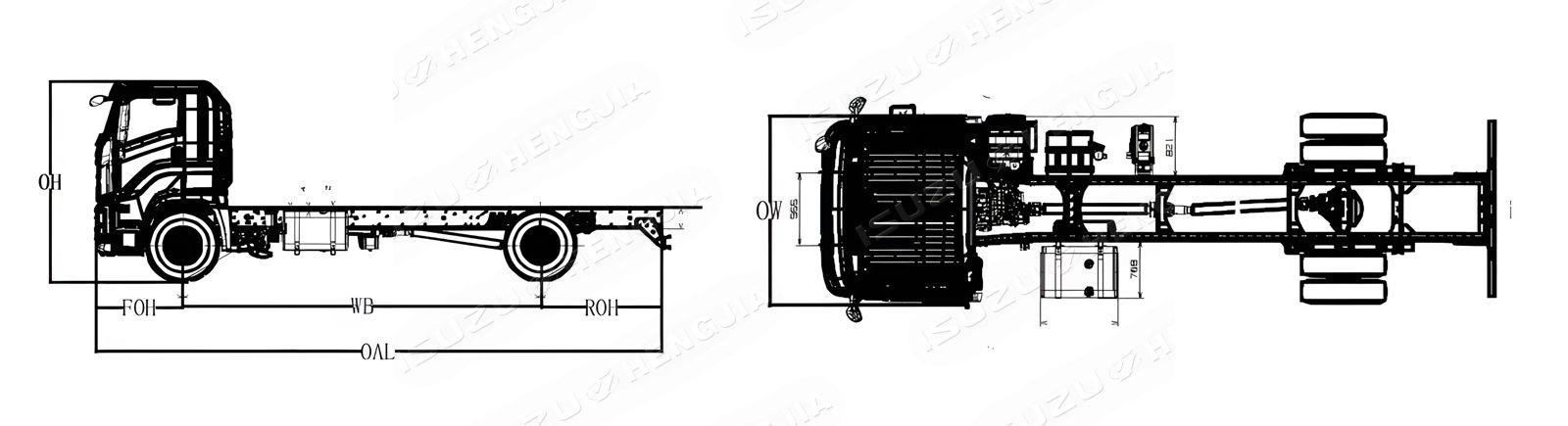

Vehicle Diagram

4X2 EVC61 TRATOR

Model		Cab type		WB	OAL	OW	OH	FOH	ROH
EVC61		Solo queue		3900	6240	2540	3055	1370	970

Product Name		Isuzu EVC61 truck
Drive Type		4x2	6x4	6x4
Wheelbase	mm	3900	3800+1370	3800+1370
Cabin chassis weight	GVW (kg)	18000	25000	25000
Cabin chassis weight	Curb Weight (kg)	7640	10180	10180
Cab	Double/Single	Single row	Single row	Single row
Cab	Driver & Passenger&	2	2	2
Overall size	LengthWidthHeight (mm)	6240X2540X3055	7310X2540X3350	7310X2540X3350
Wheel Distance	Front (mm)	2065	2065	2065
Wheel Distance	Rear (mm)	1855	1855	1855
Axle payload	Front/Rear Axle (kg)	6500/11500	7000/18000()	7000/18000()
Front/Rear suspention/(mm)		1370/970	1370/770	1370/770
Max. Speed (km/h)		89	89	89
Brake System	Air /Oil /	Oil	Oil	Oil
Drive System	Model	TZ460XS-LKM2401	TZ410XS-LKM2001	TZ460XS-LKM2401
	Type	Permanent magnet synchronous motor	Permanent magnet synchronous motor	Permanent magnet synchronous motor
	Rated/peak power /(kw/rpm)	270/405	240/360	270/405
	Rated/peak torque /(N.m/rpm)	1150/2400	1000/2000	1150/2400
Transmission	AMT Ratio	8.388\3.535\1.739\1.000	8.388\3.535\1.739\1.000	8.388\3.535\1.739\1.000
Power battery	Type	Lithium iron phosphate	Lithium iron phosphate	Lithium iron phosphate
	Energy Density Wh/kg	157.57	160.26	160.26
	Total power storage （kWh）	281.91	281.91	281.91
recharge mileage （km)		240 Full load isokinetic method>	220 Full load isokinetic method	220 Full load isokinetic method
Low-voltage battery		24V, dual battery, 120Ah	24V, dual battery, 120Ah	24V, dual battery, 120Ah
Tires and steel rims	295/80R22.5 18PR (aluminum alloy steel ring)	○	○	○
	295/80R22.5 18PR (high strength steel ring)	●	●	●
	12R22.5 18PR(high strength steel ring)	○	○	○
	12R22.5 18PR(aluminum alloy steel ring)	○	○	○
Comfortable configuration	Tilted cabin	●	●	●
	Power steering	●	●	●
	air conditioning	●	●	●
	Seat fabric is Textile	●	●	●
	Radio Player （MP3）	●	●	●
Charging method	Fast charge	●	●	●
Charging method	Slow charge	●	●	●
