ISUZU NKR EV/EVM100

Product Configuration

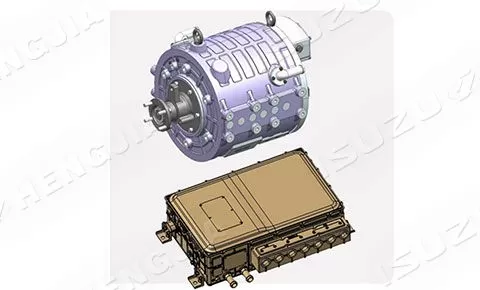

• Drive System

  Maximum power: 110kw Maximum torque: 1000N. m The drive control system adopts a four in one integrated controller, with a simple layout and high power density. The motor controller adopts a dual closed-loop control system for speed and torque, with precise control, high efficiency, and long range.

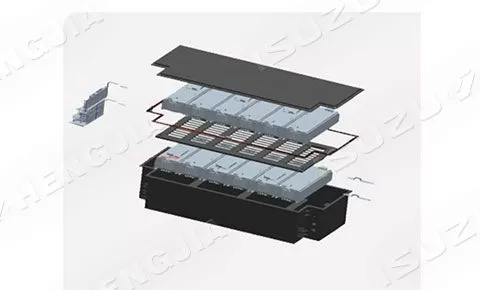

• Power battery

  Using lithium iron phosphate batteries, it has high safety and reliability, with a cycle life of up to 3000 times, fast charging speed, and supports 1C charging, The battery has a long service life, up to 8 years.

• Frame

  The cutting-edge iso-stress concept is adopted to achieve lightweight, compactness and flatness. Compared with the same size, the chassis with the same load level is 11% lighter than that of competitors.

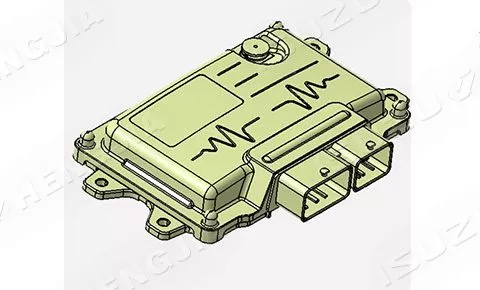

• Vehicle Control Unit

  Adopting a dual core main and auxiliary chip architecture, the ramp assist system is set up more safely, ensuring that the vehicle does not slide when starting on a ramp; The high-efficiency energy recovery system (with a maximum recovery efficiency of 20%) can increase the range by up to 10%.

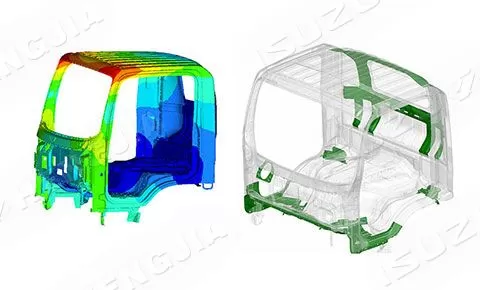

• Brand-new cab

  Meeting the strict requirements of collision regulations in Europe, key parts are equipped with enhanced protection and beam safety, and more active safety features such as ABS air brake are provided, improving comfort by about 12% and reducing vibration.

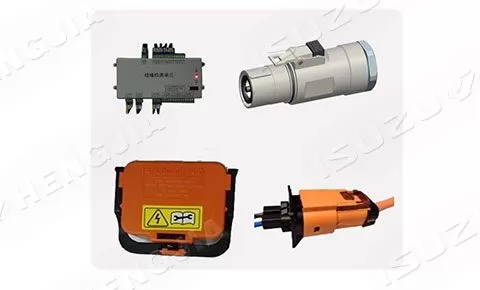

• Electrical system

  The internal high-voltage interlock design of the vehicle's electronic control and battery high-voltage box, with a high level of insulation protection safety, is equipped with an insulation detection module for safer vehicle operation. The battery MSD maintenance switch is also included for safer vehicle maintenance and repair. The plug-in is waterproof, sealed, reliable, and durable, ensuring the stability of vehicle operation.
