Fire Truck
| model | 4X2 GIGA VC66 fire truck |
| wheelbase | 3900mm-5600mm |
| drive | 4X2/4X4 |
| Engine model | 6UZ1/6WG1 |
| engine power | 350HP-520HP |
| Range of water cannon | ≥55m |
| Tank carrying capacity | 6000kg-8000kg |
| Cabinet material | Carbon steel+aluminum alloy |
Product Configuration
| component | The dedicated part consists of a liquid tank, a pump room, an equipment box, a power output and transmission system, a piping system, an electrical system, two folding arm frames, etc | ||||||||||||||||
| Box body | The carriage is made of high-quality steel, high-strength aluminum alloy profiles, and both the inner and outer skins are made of corrugated aluminum plates. The tank body is designed with multiple anti wave plates; Materials available include stainless steel, aluminum alloy, and polypropylene. | ||||||||||||||||
| Main components | The standard configuration of the fire pump is a domestic brand. The fire water cannon is a domestically produced electric control cannon from West, with a long range and strong firefighting combat capability. The pump room is equipped with a water pump system, various instruments, indicator lights, level gauges, pressure gauges, vacuum gauges, and other devices | ||||||||||||||||
| durable | The outer frame of the equipment compartment is made of high-quality carbon steel plates, the inner frame is made of high-strength aluminum alloy profiles, and is designed and manufactured with a concealed overlapping structure. The interior panel is made of patterned aluminum plate and has undergone anodizing treatment on the surface, making it sturdy and durable | ||||||||||||||||
| Structure Design | In terms of structure, the equipment compartment is arranged reasonably, making equipment access more convenient, and a specially designed fixture fixing device makes equipment storage more secure; The rolling shutter door is designed and made of high-quality aluminum alloy, with flexible opening and closing, low noise, good sealing, and beautiful appearance. | ||||||||||||||||
| Vehicle advantages | The Isuzu chassis and high-quality cabin are perfectly matched. In the development and design process, the chassis and trunk are matched and designed according to the whole vehicle thinking, fully utilizing their comprehensive performance, rather than simply piecing them together | ||||||||||||||||
Vehicle Diagram
Box body
Escalator
Fire water monitor

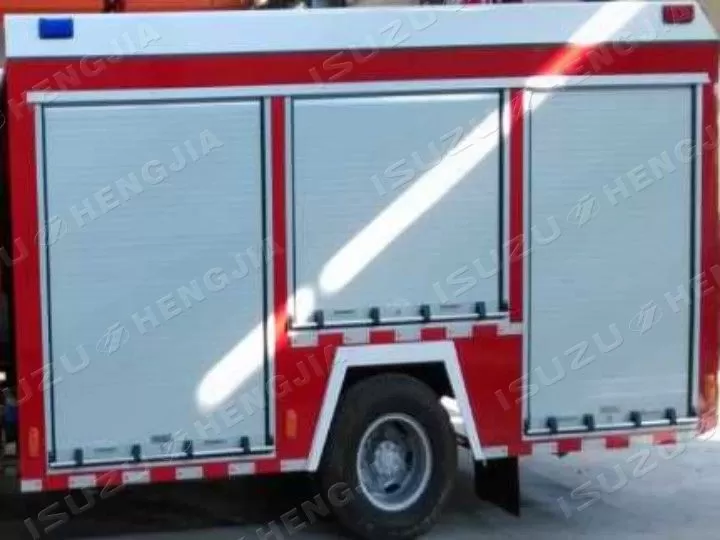

Aluminum alloy frame and rolling shutter door

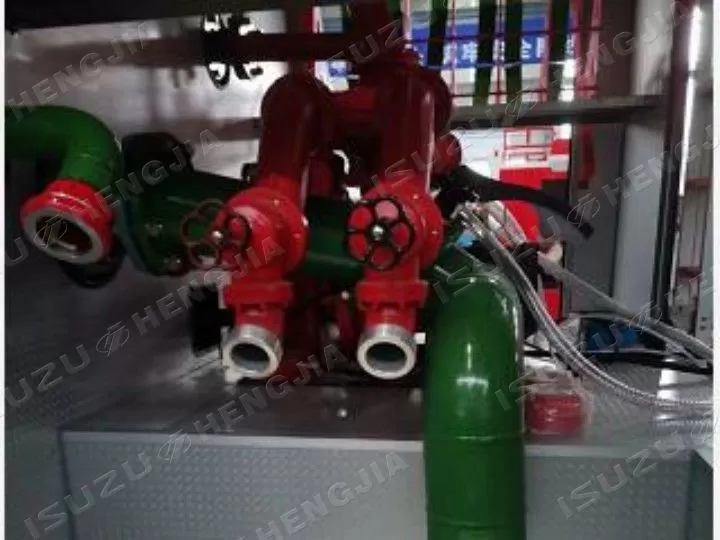

pipe system

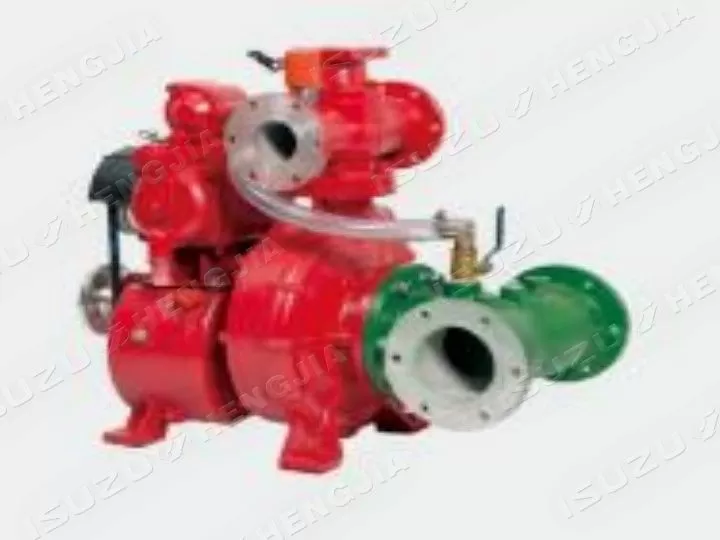

Fire pump
Vehicle Diagram
| model | Type of cab | WB | OAL | OW | OH | FOH | ROH | L | W | H |
| 4X2 VC66 | Double row | 3900 | 7600 | 2540 | 3700 | 1370 | 2330 | 4600 | 2540 | 2500 |
| 4600 | 8380 | 2540 | 3700 | 1370 | 2410 | 5300 | 2540 | 2500 | ||
| 5600 | 9400 | 2540 | 3700 | 1370 | 2430 | 6400 | 2540 | 2500 |
| 4X2 GIGA VC66 fire truck | |||
| wheelbase | 3900 | 4600 | 5600 |
| engine | 380hp | 380hp | 380hp |
| Transmission | Fast 12JSD180TA | Fast 12JSD180TA | Fast 12JSD180TA |
| Range of water cannon | ≥55m | ≥55m | ≥60m |
| Fire pump model | CB10/40-XZ | CB10/40-XZ | CB10/60-XZ |
| Fire pump flow rate | 40L/s @1.0MPa | 40L/s @1.0MPa | 60L/s @1.0MPa |
| Tank carrying capacity | 6000kg | 6000kg | 8000kg |
| product name | 4X2 GIGA VC66 fire truck | ||||
| Vehicle parameters | Vehicle wheelbase (mm) | 3900 | 4600 | 5600 | |
| Vehicle size (mm) | 7600×2540×3700 | 8380×2540×3700 | 9400×2540×3700 | ||
| Total weight (Kg) | 22000 | 22000 | 22000 | ||
| Curb weight (Kg) | 12860 | 13450 | 13950 | ||
| Number of passengers in the cab | 3+3 | 3+3 | 3+3 | ||
| maximum speed | 90 | 90 | 90 | ||
| Tire Size | 385/65R22.5 20PR/ 315/80R22.5 20PR | 385/65R22.5 20PR/ 315/80R22.5 20PR | 385/65R22.5 20PR/ 315/80R22.5 20PR | ||
| Number of tires | 6+1 | 6+1 | 6+1 | ||
| emission standard | National 5 、 National 6 | National 5 、 National 6 | National 5 、 National 6 | ||
| Engine and transmission variable parameters | Transmission model | Fast 12JSD180TA | Fast 12JSD180TA | Fast 12JSD180TA | |
| Gear | 12Forward +2 Reverse | 12Forward +2 Reverse | 12Forward +2 Reverse | ||
| 6UZ1-TCG61 | 279kw/380hp | ○ | ○ | ○ | |
| Specialized performance | Cabinet material | Carbon steel+aluminum alloy | Carbon steel+aluminum alloy | Carbon steel+aluminum alloy | |
| Fire monitor | Water cannon model | PL8/32 | PL8/32 | PS10/50W-D | |
| Range of water cannon | ≥55m | ≥55m | ≥60m | ||
| Foam monitor model | PH64 | PH64 | PH64 | ||
| Range of foam gun | water≥55m，Foam≥50m | water≥55m，Foam≥50m | water≥55m，Foam≥50m | ||
| Fire pump | model | CB10/40-XZ | CB10/40-XZ | CB10/60-XZ | |
| internet traffic | 40L/s @1.0MPa | 40L/s @1.0MPa | 60L/s @1.0MPa | ||
| Tank carrying capacity | Water tanker truck | water6000kg | water6000kg | water8000kg | |
| Foam car | water5000kg+Foam1000kg | water5000kg+Foam1000kg | water6000kg+Foam2000kg | ||
| Factory standards | The pump room is located at the rear of the vehicle, with aluminum alloy rolling shutter doors on both sides and the rear. There are lighting fixtures inside, and some commonly used equipment can be placed on both sides of the pump room. | The pump room is located at the rear of the vehicle, with aluminum alloy rolling shutter doors on both sides and the rear. There are lighting fixtures inside, and some commonly used equipment can be placed on both sides of the pump room.。 | The pump room is located at the rear of the vehicle, with aluminum alloy rolling shutter doors on both sides and the rear. There are lighting fixtures inside, and some commonly used equipment can be placed on both sides of the pump room. | ||
Note: For detailed configuration, please contact us for confirmation. Customization is supported
