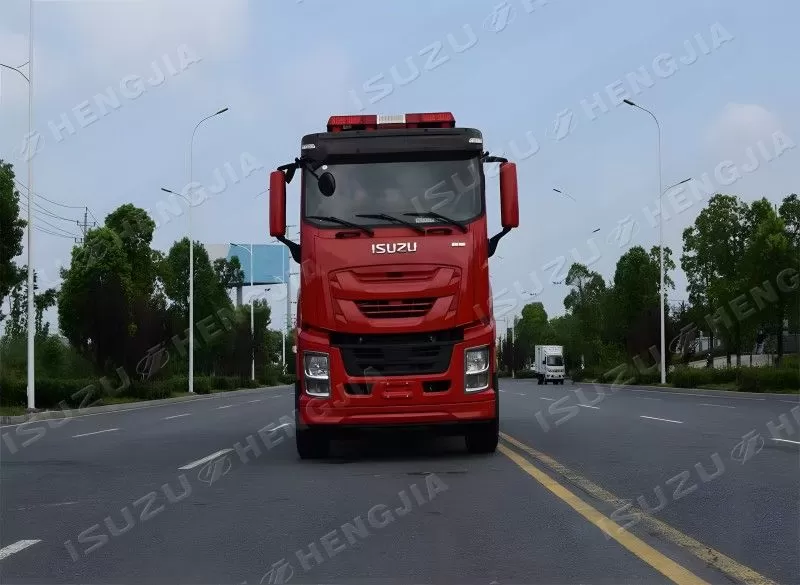

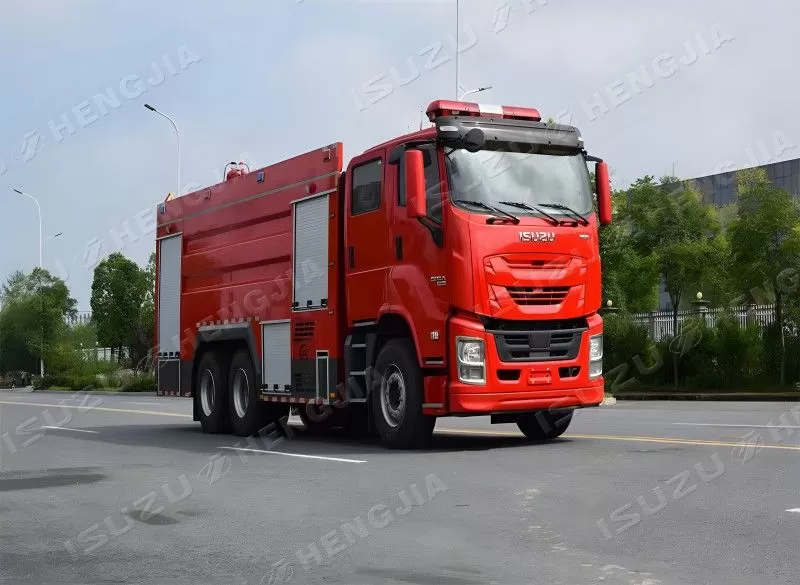

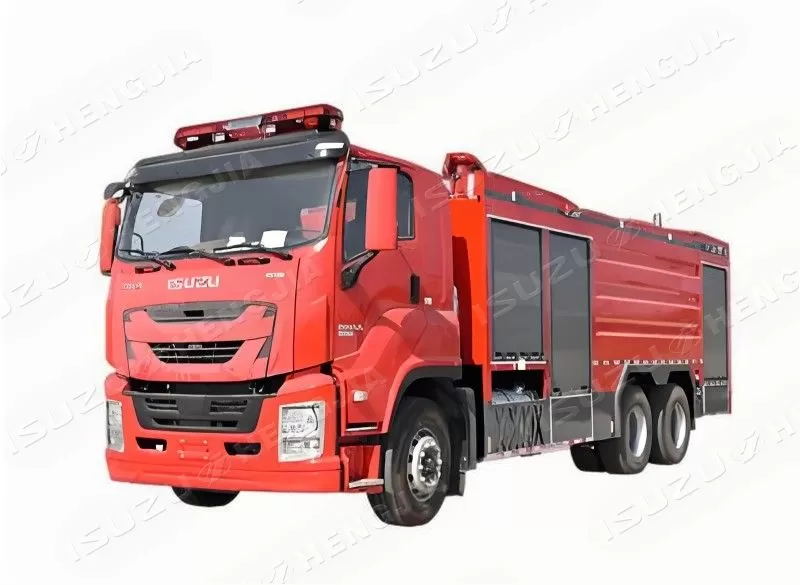

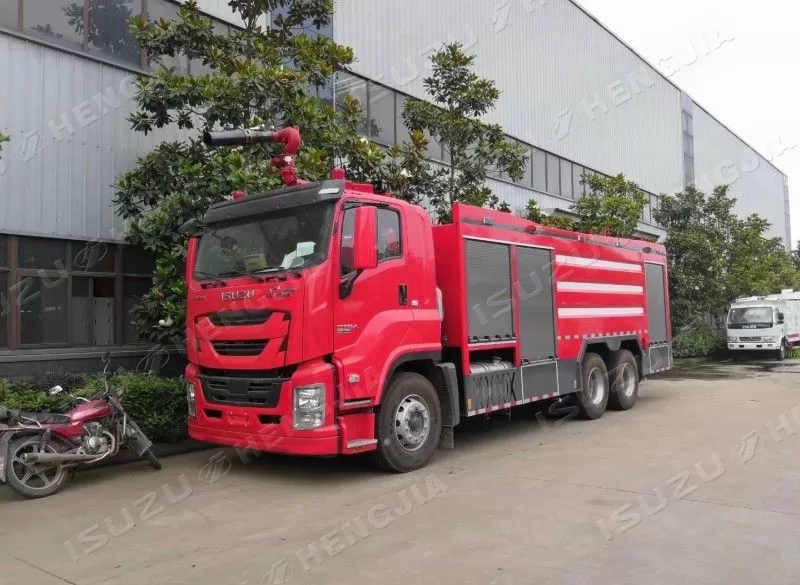

6X4 GIGA VC66 fire truck

model	6X4 GIGA VC66 fire truck
wheelbase	5100+1370mm
drive	6X4/6X6
Engine model	6UZ1/6WG1
engine power	350HP-520HP
Range of water cannon	≥55m
Tank carrying capacity	16000kg
Cabinet material	Carbon steel+aluminum alloy

Inquire Now Next Product

Product Configuration

component

The dedicated part consists of a liquid tank, a pump room, an equipment box, a power output and transmission system, a piping system, an electrical system, two folding arm frames, etc

Box body

The carriage is made of high-quality steel, high-strength aluminum alloy profiles, and both the inner and outer skins are made of corrugated aluminum plates. The tank body is designed with multiple anti wave plates; Materials available include stainless steel, aluminum alloy, and polypropylene.

Main components

The standard configuration of the fire pump is a domestic brand. The fire water cannon is a domestically produced electric control cannon from West, with a long range and strong firefighting combat capability. The pump room is equipped with a water pump system, various instruments, indicator lights, level gauges, pressure gauges, vacuum gauges, and other devices

durable

The outer frame of the equipment compartment is made of high-quality carbon steel plates, the inner frame is made of high-strength aluminum alloy profiles, and is designed and manufactured with a concealed overlapping structure. The interior panel is made of patterned aluminum plate and has undergone anodizing treatment on the surface, making it sturdy and durable

Structure Design

In terms of structure, the equipment compartment is arranged reasonably, making equipment access more convenient, and a specially designed fixture fixing device makes equipment storage more secure; The rolling shutter door is designed and made of high-quality aluminum alloy, with flexible opening and closing, low noise, good sealing, and beautiful appearance.

Vehicle advantages

The Isuzu chassis and high-quality cabin are perfectly matched. In the development and design process, the chassis and trunk are matched and designed according to the whole vehicle thinking, fully utilizing their comprehensive performance, rather than simply piecing them together

Vehicle Diagram

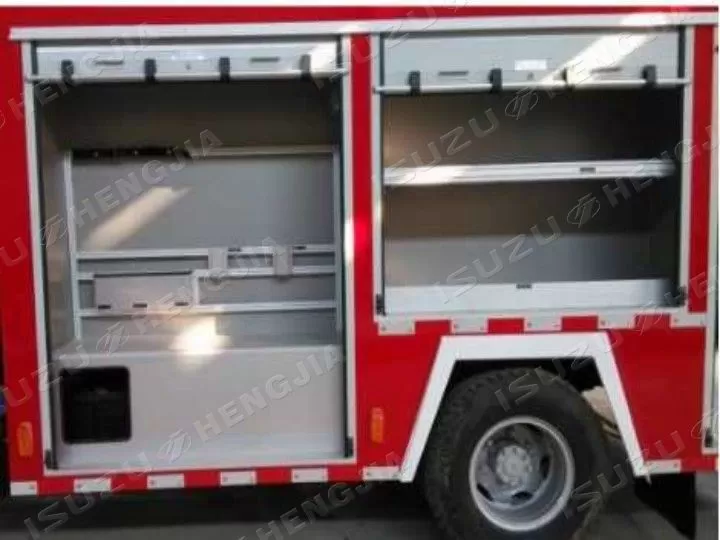

Box body

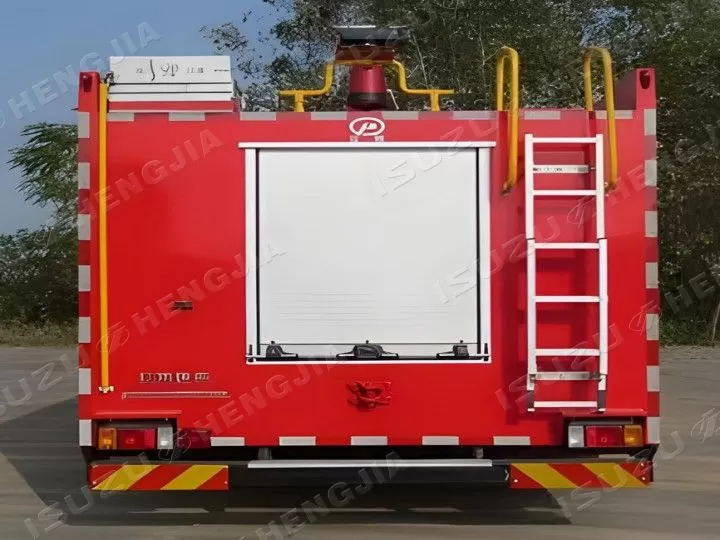

Escalator

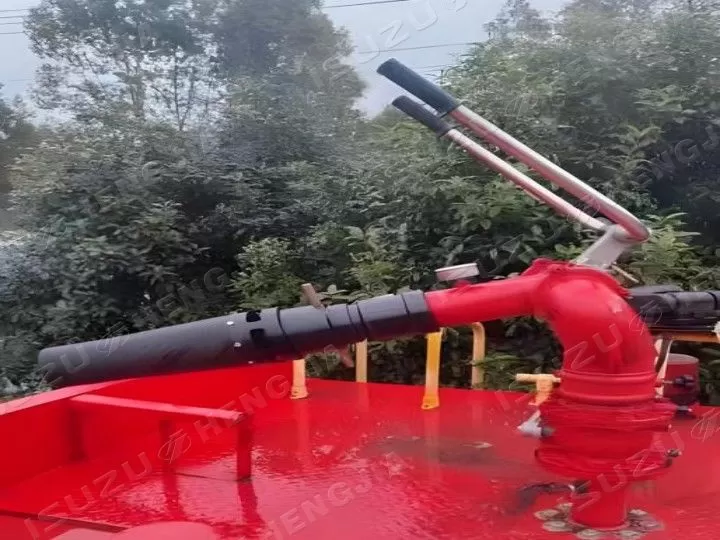

Fire water monitor

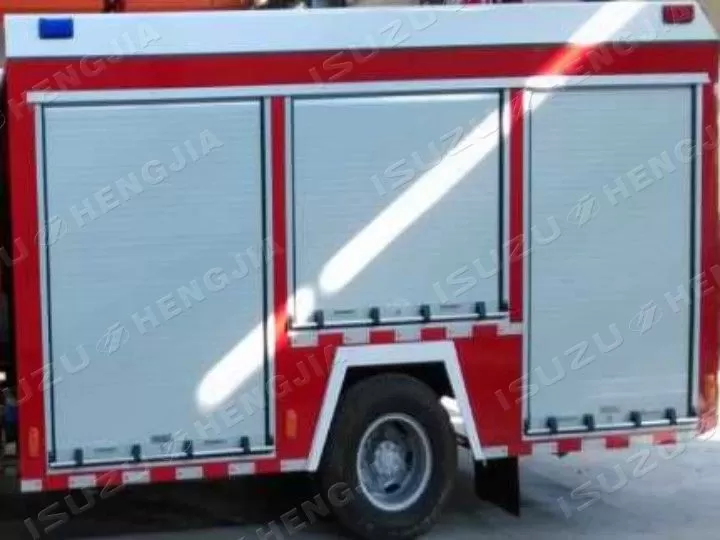

Aluminum alloy frame and rolling shutter door

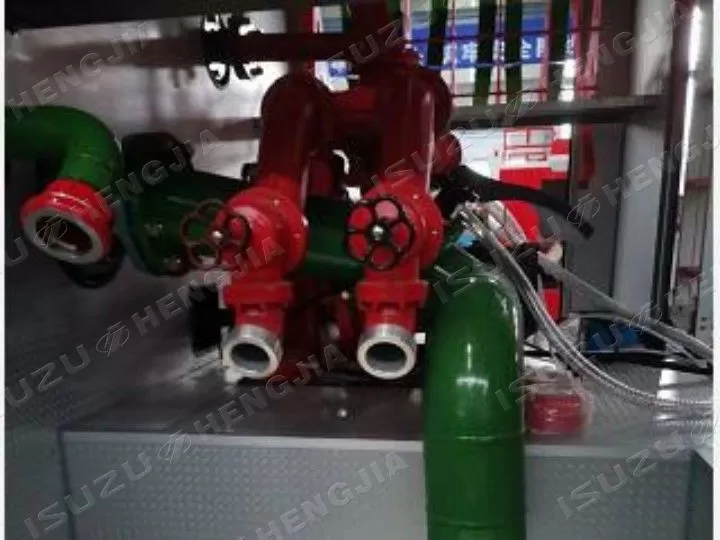

pipe system

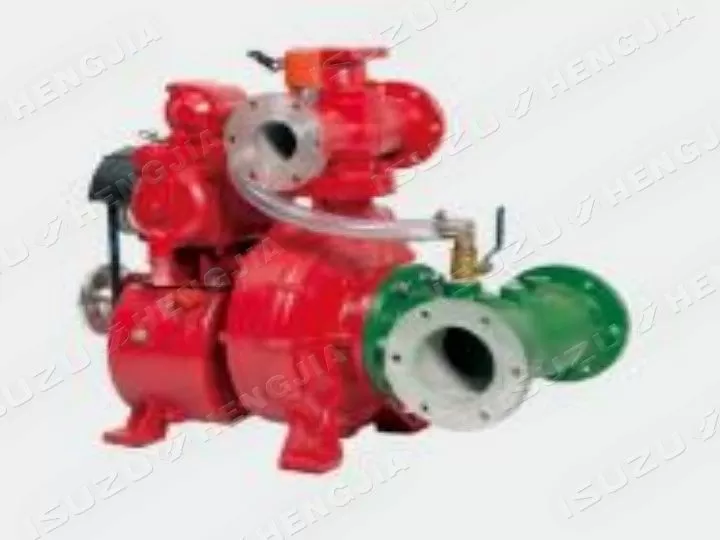

Fire pump

Vehicle Diagram

model	Type of cab	WB	OAL	OW	OH	FOH	ROH	L	W	H
6X4 VC66	Double row	5100+1370	10500	2540	4000	1370	2660	7500	2540	2700

6X4 GIGA VC66 fire truck
wheelbase	5100+1370
engine	380hp
Transmission	ZF 8S2330TD
Range of water cannon	≥75m
Fire pump model	CB10/60-XZ
Fire pump flow rate	60L/s @1.0MPa
Tank carrying capacity	16000kg

product name			6X4 GIGA VC66 fire truck
Vehicle parameters	Vehicle wheelbase (mm)		5100+1370
	Vehicle size (mm)		10500X2540X4000
	Total weight (Kg)		35000
	Curb weight (Kg)		13860
	Number of passengers in the cab		3+3
	maximum speed		90
	Tire Size		385/65R22.5 20PR/ 315/80R22.5 20PR
	Number of tires		10+1
	emission standard		National 5 、 National 6
Engine and transmission variable parameters	Transmission model		ZF 8S2330TD
	Gear		8Forward +2 Reverse
	6UZ1-TCG61	279kw/380hp	○
Specialized performance	Cabinet material		Carbon steel+aluminum alloy
	Fire monitor	Water cannon model	PL8/60W
		Range of water cannon	≥75m
		Foam monitor model	P8/48
		Range of foam gun	Water≥70m，Foam≥60m
	Fire pump	model	CB10/60-XZ
		internet traffic	60L/s @1.0MPa
	Tank carrying capacity	Water tanker truck	Water16000kg
		Foam car	Water13300kg+Foam2700kg

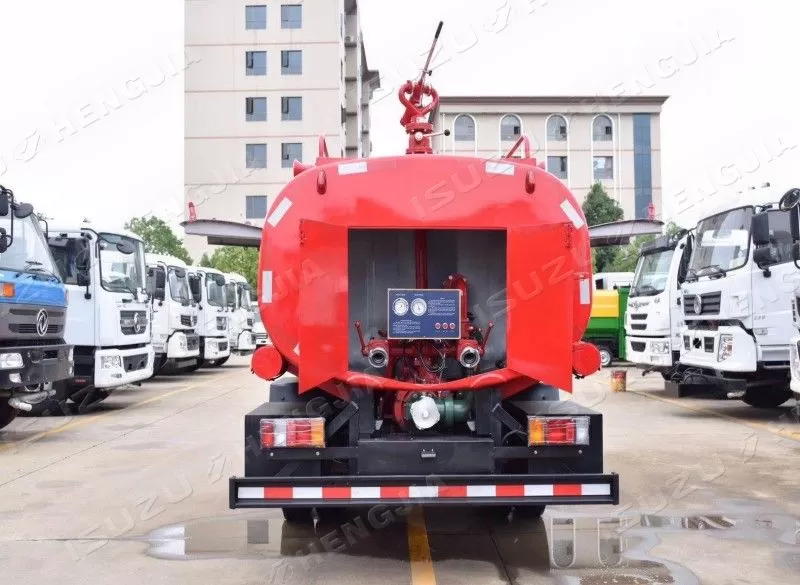

	Factory standards		The pump room is located at the rear of the vehicle, with aluminum alloy rolling shutter doors on both sides and the rear. There are lighting fixtures inside, and some commonly used equipment can be placed on both sides of the pump room.

Note: For detailed configuration, please contact us for confirmation. Customization is supported
