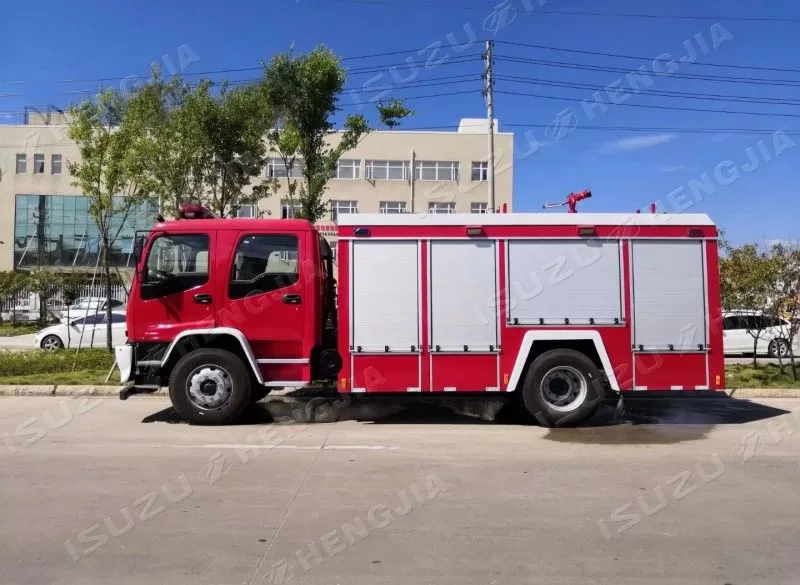

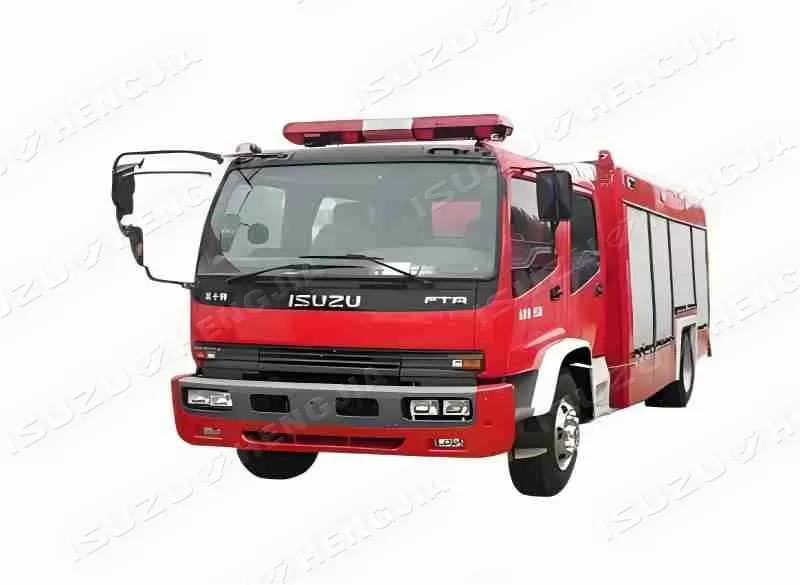

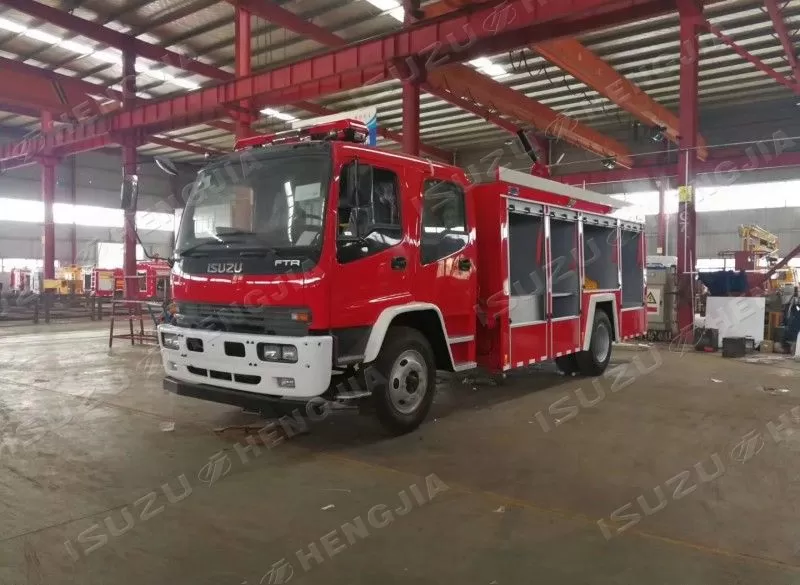

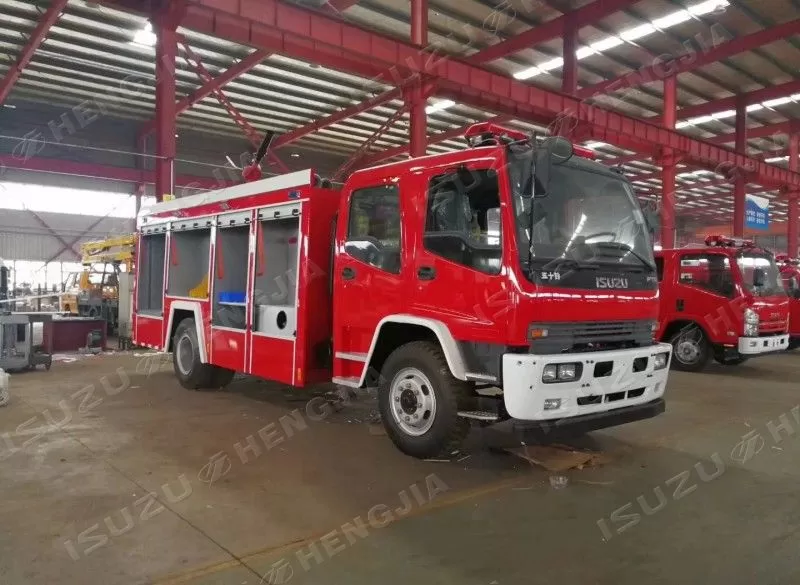

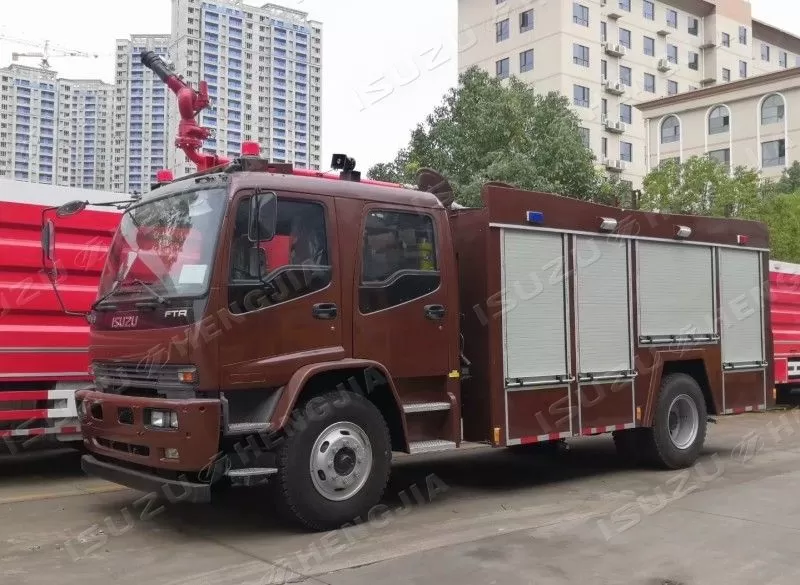

ISUZU F/FTR Fire Truck

model	FTR fire truck
wheelbase	4500mm-5000mm
drive	4X2/4X4
Engine model	4HK1
engine power	205HP-224HP
Range of water cannon	≥55m
Tank carrying capacity	6000kg-8000kg
Cabinet material	Carbon steel+aluminum alloy

Inquire Now Next Product

Product Configuration

component

The dedicated part consists of a liquid tank, a pump room, an equipment box, a power output and transmission system, a piping system, an electrical system, two folding arm frames, etc

Box body

The carriage is made of high-quality steel, high-strength aluminum alloy profiles, and both the inner and outer skins are made of corrugated aluminum plates. The tank body is designed with multiple anti wave plates; Materials available include stainless steel, aluminum alloy, and polypropylene.

Main components

The standard configuration of the fire pump is a domestic brand. The fire water cannon is a domestically produced electric control cannon from West, with a long range and strong firefighting combat capability. The pump room is equipped with a water pump system, various instruments, indicator lights, level gauges, pressure gauges, vacuum gauges, and other devices

durable

The outer frame of the equipment compartment is made of high-quality carbon steel plates, the inner frame is made of high-strength aluminum alloy profiles, and is designed and manufactured with a concealed overlapping structure. The interior panel is made of patterned aluminum plate and has undergone anodizing treatment on the surface, making it sturdy and durable

Structure Design

In terms of structure, the equipment compartment is arranged reasonably, making equipment access more convenient, and a specially designed fixture fixing device makes equipment storage more secure; The rolling shutter door is designed and made of high-quality aluminum alloy, with flexible opening and closing, low noise, good sealing, and beautiful appearance.

Vehicle advantages

The Isuzu chassis and high-quality cabin are perfectly matched. In the development and design process, the chassis and trunk are matched and designed according to the whole vehicle thinking, fully utilizing their comprehensive performance, rather than simply piecing them together

Vehicle Diagram

Box body
Escalator
Fire water monitor
Aluminum alloy frame and rolling shutter door
pipe system
Fire pump

model	Type of cab	WB	OAL	OW	OH	FOH	ROH	L	W	H
FTR	Double row	3815	8245	2490	3500	1335	3095	5445	2400	2600
FTR	Double row	4475	8630	2500	3580	1335	2820	5830	2400	2600

Isuzu FTR fire truck
wheelbase	4500	5000
engine	205hp/224hp	205hp/224hp
Transmission	Isuzu MLD	Isuzu MLD
Range of water cannon	≥55m	≥60m
Fire pump model	CB10/40-XZ	CB10/60-XZ
Fire pump flow rate	40L/s @1.0MPa	60L/s @1.0MPa
Tank carrying capacity	6000kg	8000kg

product name			Isuzu FTR fire truck
Vehicle parameters	Vehicle wheelbase (mm)		4500	5000
	Vehicle size (mm)		8245×2490×3500	8630×2500×3580
	Total weight (Kg)		18000	18000
	Curb weight (Kg)		10450	10950
	Number of passengers in the cab		3+3	3+3
	maximum speed		90	90
	Tire Size		11.00R22.5 16PR	11.00R22.5 16PR
	Number of tires		6+1	6+1
	emission standard		National 5 、 National 6	National 5 、 National 6
Engine and transmission variable parameters	Transmission model		Isuzu MLD	Isuzu MLD
	Gear		6Forward + 1 Reverse	6Forward + 1 Reverse
	4HK1-TC50	151kw/205hp	○	○
	4HK1-TCG60	151kw/205hp	○	○
	4HK1-TCG62	164kw/224hp	○	○
Specialized performance	Cabinet material		Carbon steel+aluminum alloy	Carbon steel+aluminum alloy
	Fire monitor	Water cannon model	PL8/32	PS10/50W-D
		Range of water cannon	≥55m	≥60m
		Foam monitor model	PH64	PH64
		Range of foam gun	water≥55m，Foam≥50m	water≥55m，Foam≥50m
	Fire pump	model	CB10/40-XZ	CB10/60-XZ
	Fire pump	internet traffic	40L/s @1.0MPa	60L/s @1.0MPa
	Tank carrying capacity	Water tanker truck	Water6000kg	Water8000kg
	Tank carrying capacity	Foam car	Water5000kg+Foam1000kg	Water6000kg+Foam2000kg
	Factory standards		The pump room is located at the rear of the vehicle, with aluminum alloy rolling shutter doors on both sides and the rear. There are lighting fixtures inside, and some commonly used equipment can be placed on both sides of the pump room	The pump room is located at the rear of the vehicle, with aluminum alloy rolling shutter doors on both sides and the rear. There are lighting fixtures inside, and some commonly used equipment can be placed on both sides of the pump room

Note: For detailed configuration, please contact us for confirmation. Customization is supported
