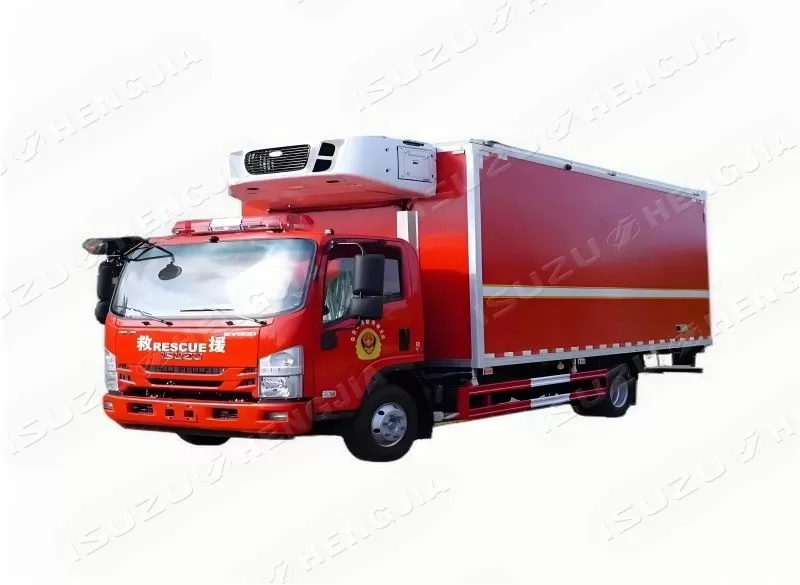

ISUZU NKR/KV600 Fire Truck

model	KV600 fire truck
wheelbase	3360mm-3815mm
drive	4X2/4X4
Engine model	4KH1
engine power	120HP-146HP
Range of water cannon	≥55m
Tank carrying capacity	650kg-2022kg
Cabinet material	Carbon steel+aluminum alloy

Inquire Now Next Product

Product Configuration

component

The dedicated part consists of a liquid tank, a pump room, an equipment box, a power output and transmission system, a piping system, an electrical system, two folding arm frames, etc

Box body

The carriage is made of high-quality steel, high-strength aluminum alloy profiles, and both the inner and outer skins are made of corrugated aluminum plates. The tank body is designed with multiple anti wave plates; Materials available include stainless steel, aluminum alloy, and polypropylene.

Main components

The standard configuration of the fire pump is a domestic brand. The fire water cannon is a domestically produced electric control cannon from West, with a long range and strong firefighting combat capability. The pump room is equipped with a water pump system, various instruments, indicator lights, level gauges, pressure gauges, vacuum gauges, and other devices

durable

The outer frame of the equipment compartment is made of high-quality carbon steel plates, the inner frame is made of high-strength aluminum alloy profiles, and is designed and manufactured with a concealed overlapping structure. The interior panel is made of patterned aluminum plate and has undergone anodizing treatment on the surface, making it sturdy and durable

Structure Design

In terms of structure, the equipment compartment is arranged reasonably, making equipment access more convenient, and a specially designed fixture fixing device makes equipment storage more secure; The rolling shutter door is designed and made of high-quality aluminum alloy, with flexible opening and closing, low noise, good sealing, and beautiful appearance.

Vehicle advantages

The Isuzu chassis and high-quality cabin are perfectly matched. In the development and design process, the chassis and trunk are matched and designed according to the whole vehicle thinking, fully utilizing their comprehensive performance, rather than simply piecing them together

Vehicle Diagram

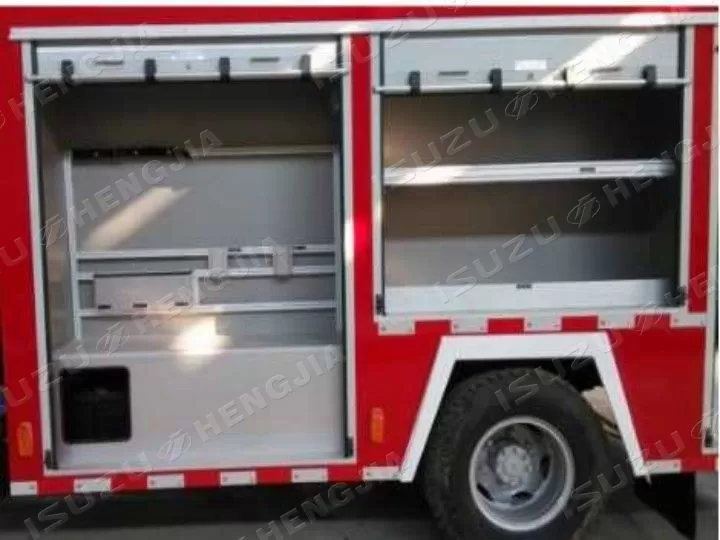

Box body
Escalator

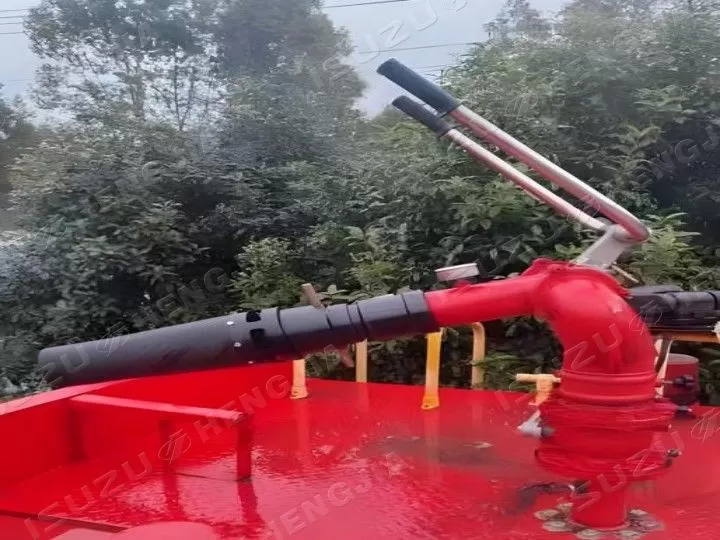

Fire water monitor

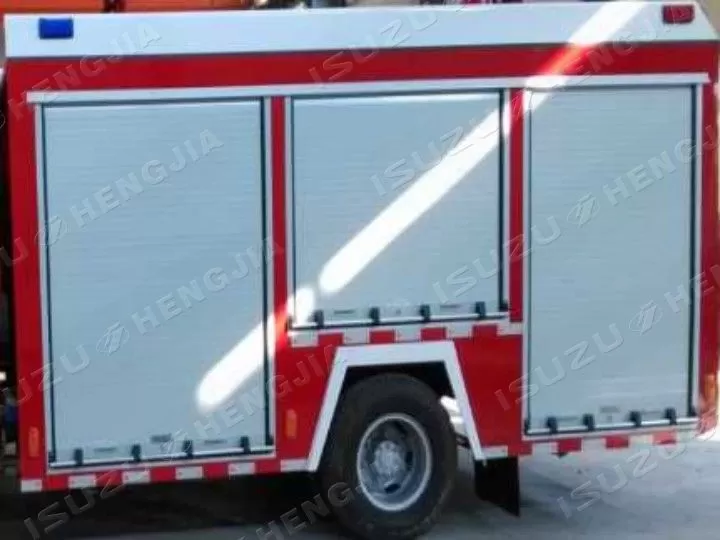

Aluminum alloy frame and rolling shutter door

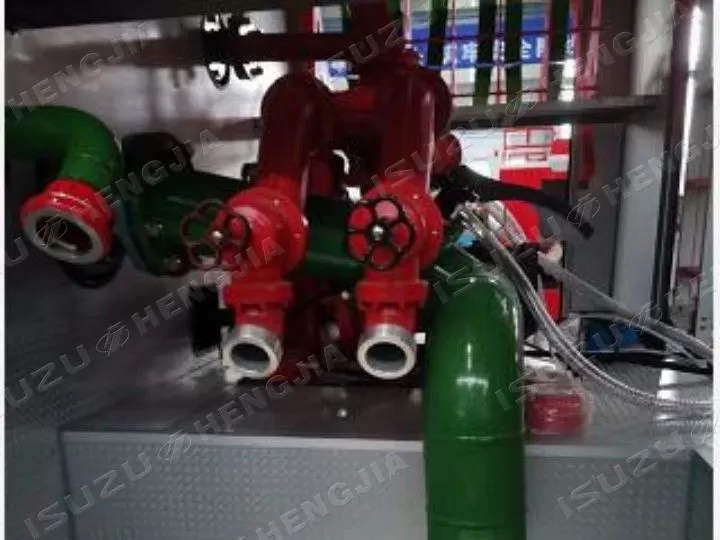

pipe system

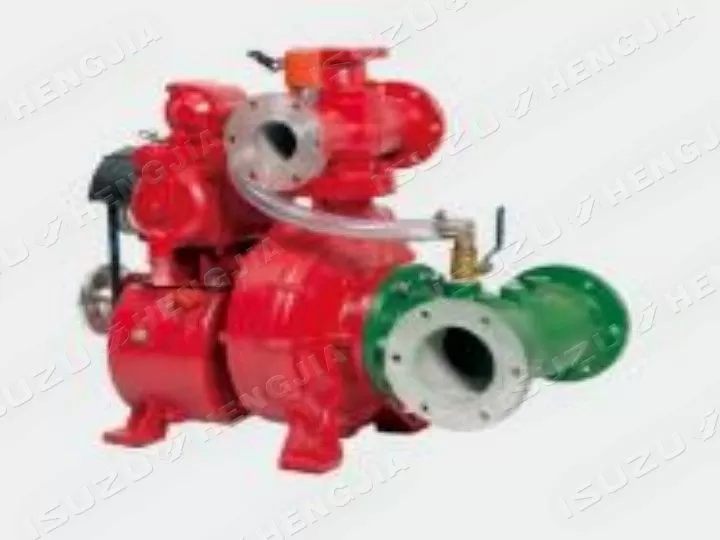

Fire pump

Vehicle Diagram

model	Type of cab	WB	OAL	OW	OH	FOH	ROH	L	W	H
kv600	Double row	2765	5500	2300	2950	1120	1615	3200	2300	2200
kv600	Double row	3360	6500	2300	2950	1120	2020	4200	2300	2200

Isuzu KV600 fire truck
wheelbase	3360	3815
engine	98hp/115hp/120hp/140hp	98hp/115hp/120hp/140hp
Transmission	Isuzu MSB	Isuzu MSB
Range of water cannon	≥55m	≥55m
Fire pump model	CB10/30-XZ	CB10/30-XZ
Fire pump flow rate	30L/s @1.0MPa	30L/s @1.0MPa
Tank carrying capacity	650kg	2022kg

product name			Isuzu KV600 fire truck
Vehicle parameters	Vehicle wheelbase (mm)		2765	3360
	Vehicle size (mm)		5500X2300X2950	6500X2300X2950
	Total weight (Kg)		8280	8280
	Curb weight (Kg)		3535	4600
	Number of passengers in the cab		2+3	2+3
	maximum speed		98	98
	Tire Size		7.00R16LT 8PR	7.50R16LT 14PR
	Number of tires		6+1	6+1
	emission standard		National 5 、 National 6	National 5 、 National 6
Engine and transmission variable parameters	Transmission model		Isuzu MSB	Isuzu MSB
	Gear		5Forward + 1 Reverse	5Forward + 1 Reverse
	4KH1CN5HS	96kw/130hp	○	\
	4KH1CN5HD	95kw/130hp	○	\
	4KH1N6HD	108kW/146hp	\	○
	4KH1CN6HB	97kw/132hp	\	○
	4KH1CN6LB	88kw/120hp	\	○
	4KH1N6MD	101kW/140hp	\	○
Specialized performance	Cabinet material		Carbon steel+aluminum alloy	Carbon steel+aluminum alloy
	Fire monitor	Water cannon model	PS30W	PS30W
		Range of water cannon	≥55m	≥55m
		Foam monitor model	PL24	PL24
		Range of foam gun	water≥45m，foam≥40m	water≥45m，foam≥40m
	Fire pump	model	CB10/30-XZ	CB10/30-XZ
	Fire pump	internet traffic	30L/s @1.0MPa	30L/s @1.0MPa
	Tank carrying capacity	Water tanker truck	water650kg	water2022kg
	Tank carrying capacity	Foam car	water450kg+foam200kg	water1385kg+foam637kg
	Factory standards		The pump room is located at the rear of the vehicle, with aluminum alloy rolling shutter doors on both sides and the rear. There are lighting fixtures inside, and some commonly used equipment can be placed on both sides of the pump room.	The pump room is located at the rear of the vehicle, with aluminum alloy rolling shutter doors on both sides and the rear. There are lighting fixtures inside, and some commonly used equipment can be placed on both sides of the pump room.。

Note: For detailed configuration, please contact us for confirmation. Customization is supported
