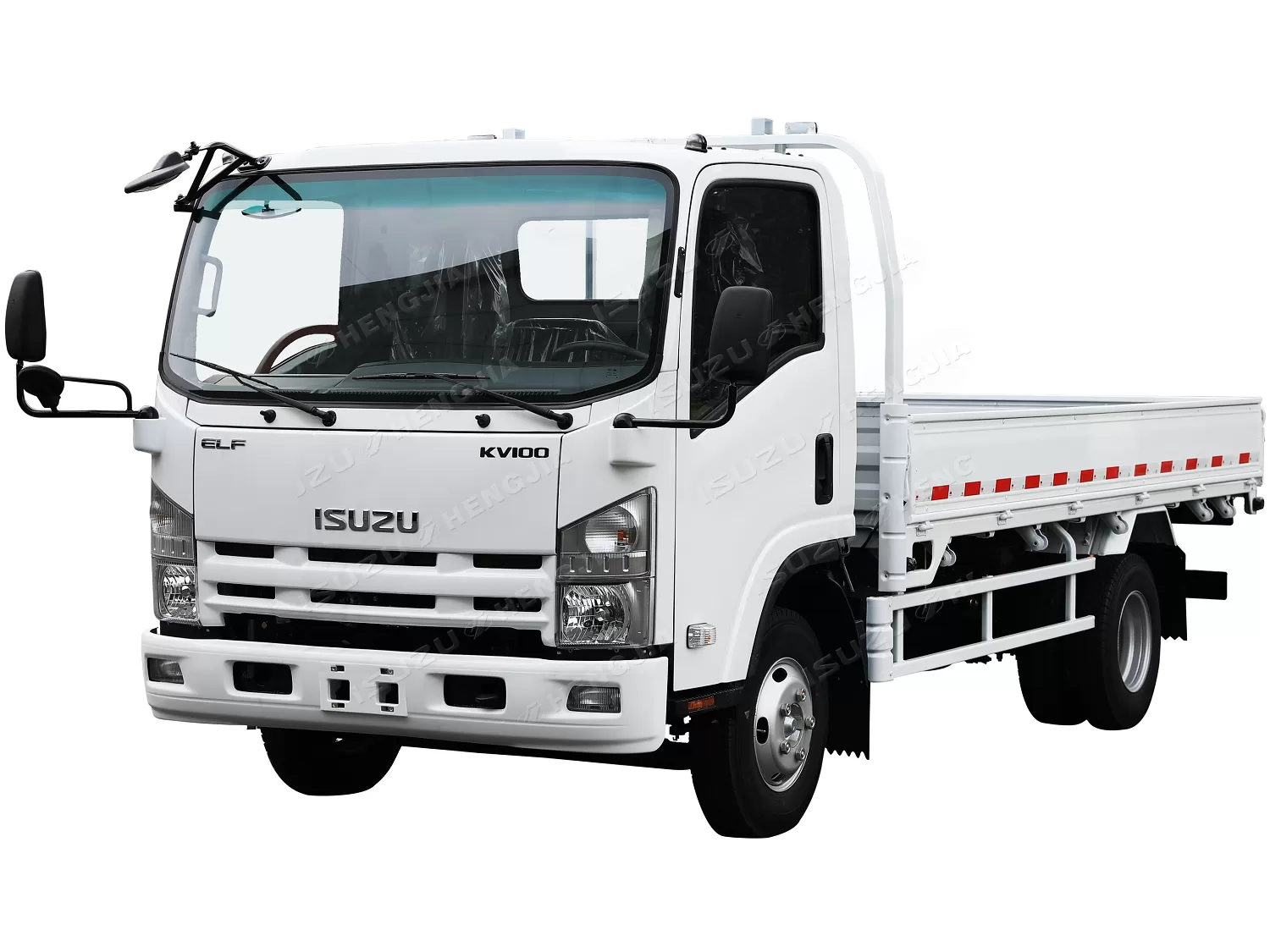

ISUZU NKR/KV100 Pallet truck

Inquire Now Next Product

Product Configuration

body	The whole body is made of high carbon steel, with strong rigidity and strength, durable, not easy to deformation

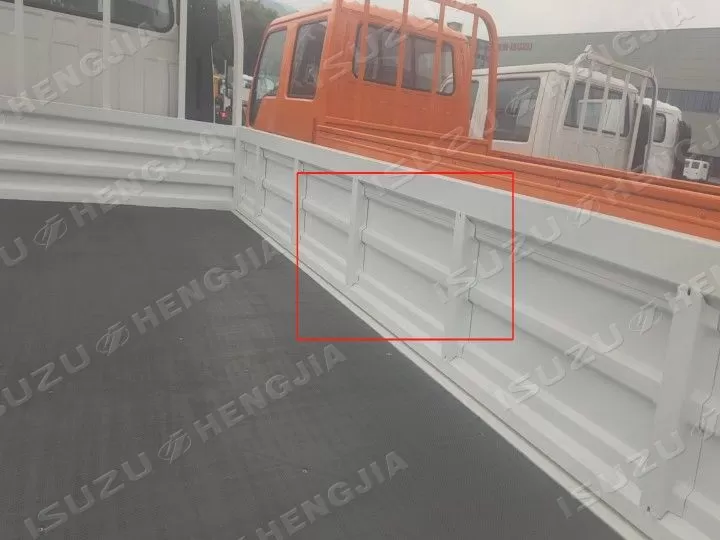

sideboard	The left and right side panels are strengthened at a certain distance to improve the overall strength of the side panels

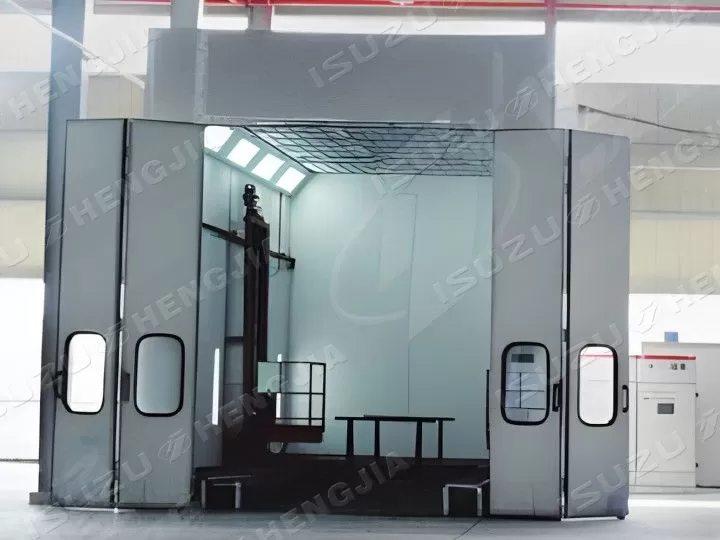

spray	Preferably domestic quality paint, strong adhesion, wear resistance, acid and alkali resistance, good heat resistance.

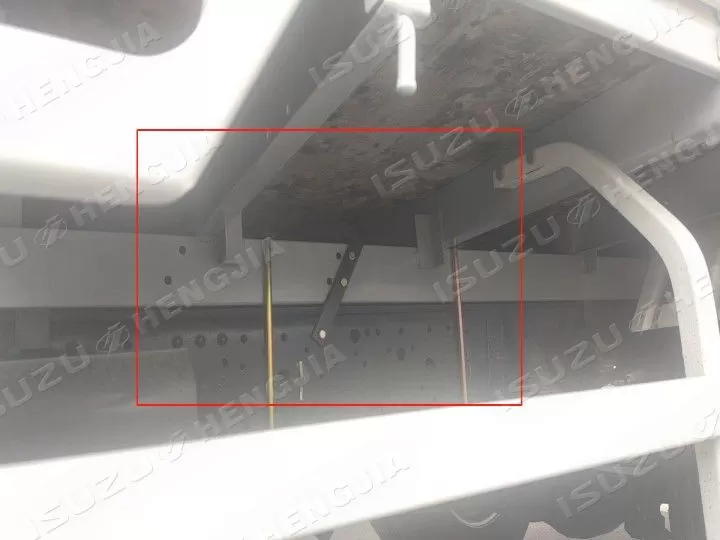

subframe	Effectively isolate road vibration, improve ride comfort
Professional customization	Seven years of modification experience, according to the needs of the car to customize the modification plan free of charge
Vehicle advantage	Isuzu chassis + quality cargo compartment perfect match. In the process of development and design, according to the vehicle thinking, the chassis, the body, the matching design, give full play to its comprehensive performance, not a simple patchwork.

Vehicle Diagram:

Vehicle Diagram :

Model	WB	OAL	OW	OH	FOH	ROH	L	W	H
KV100	2765	5300	2200	2300	1015	1525	3500	2200	400
	3360	5995	2200	2300	1015	1525	4250	2200	400
	3815	6800	2200	2300	1015	1835	5050	2200	400
The above sizes are for reference and can be customized according to requirements

Product name			Isuzu KV100 Pallet truck
whole parameter	vehicle wheelbase(㎜)		2765	3360	3815
	Vehicle size()		5300×2200X2300	5995×2200X2300	6800×2200X2300
	Total weight (Kg)		4495	4495/7300	7300
	Curb weight (Kg)		2750	3085	3250
	Number of passengers in the cab		2	2	2
	Maximum speed		98	98	98
	Tire specifications		7.00R16LT 8PR	7.50R16LT 14PR	7.50R16LT 14PR
	Number of tires		6+1	6+1	6+1
	Emission standards		Euro 5/Euro 6	Euro 5/Euro 6	Euro 5/Euro 6
ENGINE+TRANSMISSION	Transmission model		Isuzu MSB	Isuzu MSB	Isuzu MSB
	Gear gear		5Forward + 1 Reverse	5Forward + 1 Reverse	5Forward + 1 Reverse
	4KH1CN5LS	72kw/98hp	○	○	○
	4KH1CN5MD	83kw/115hp	○	○	○
	4KH1N6MD	101kW/140hp	○	○	-
	4KH1CN6LB	88kw/120hp	○	○	○
Special performance	Box material	Q235	○	○	○
		Q345	○	○	○
		High strength steel	○	○	○
	Box volume		3 m³	3.8 m³	4.5 m³
	Case size		3500×2200×400	4250×2200×400	5050×2200×400

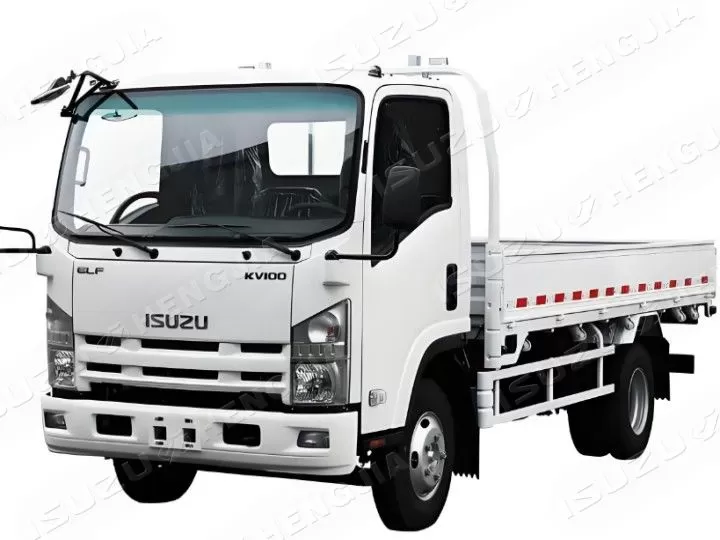

	Factory standards		Bottom plate 3mm/ side plate 2mm, the overall rear fender is welded on the cargo box, left and right side protection, rear protection, reverse cursor sticker	Bottom plate 3mm/ side plate 2mm, the overall rear fender is welded on the cargo box, left and right side protection, rear protection, reverse cursor sticker	Bottom plate 3mm/ side plate 2mm, the overall rear fender is welded on the cargo box, left and right side protection, rear protection, reverse cursor sticker
Note: Please contact us to confirm the detailed configuration. Customization is supported
