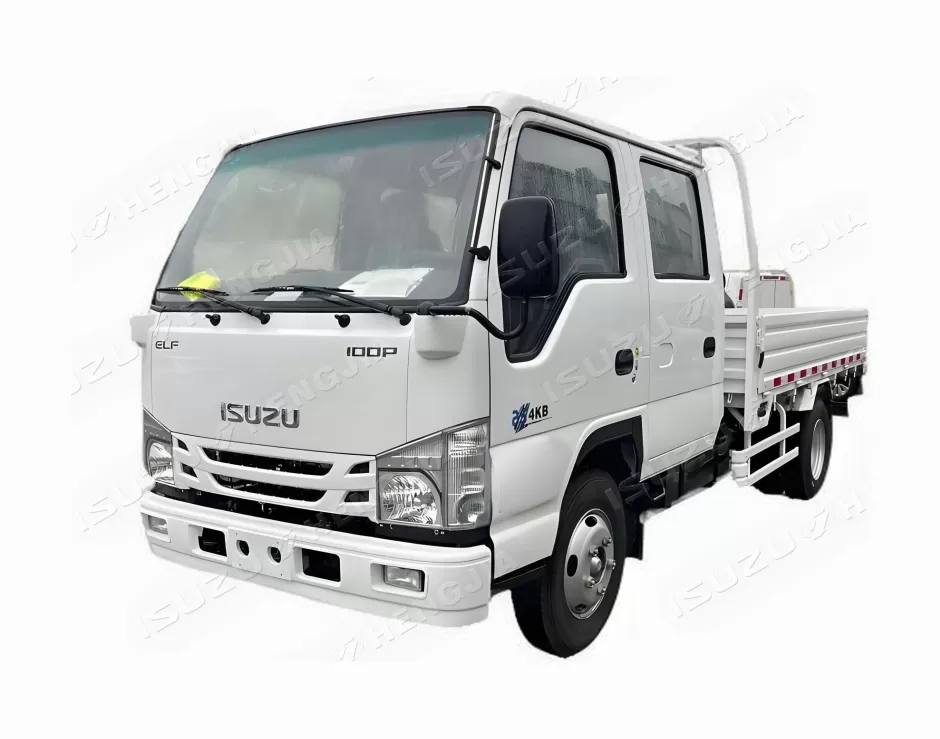

Isuzu nkr/100P Pallet truck

Vehicle type	100P plate truck
wheelbase	2490mm-3815mm
Driving form	4X2/4X4
Engine Model	4KH1
Engine Horsepower:	98HP-130HP
Load	1.5T-4T
Box volume	2.3 m³-3.8 m³
Box material	Q235/Q355/High strength steel

Inquire Now Next Product

Product Configuration

body	The whole body is made of high carbon steel, with strong rigidity and strength, durable, not easy to deformation
sideboard	The left and right side panels are strengthened at a certain distance to improve the overall strength of the side panels
spray	Preferably domestic quality paint, strong adhesion, wear resistance, acid and alkali resistance, good heat resistance.
subframe	Effectively isolate road vibration, improve ride comfort
Professional customization	Seven years of modification experience, according to the needs of the car to customize the modification plan free of charge
Vehicle advantage	Isuzu chassis + quality cargo compartment perfect match. In the process of development and design, according to the vehicle thinking, the chassis, the body, the matching design, give full play to its comprehensive performance, not a simple patchwork.

Vehicle Diagram

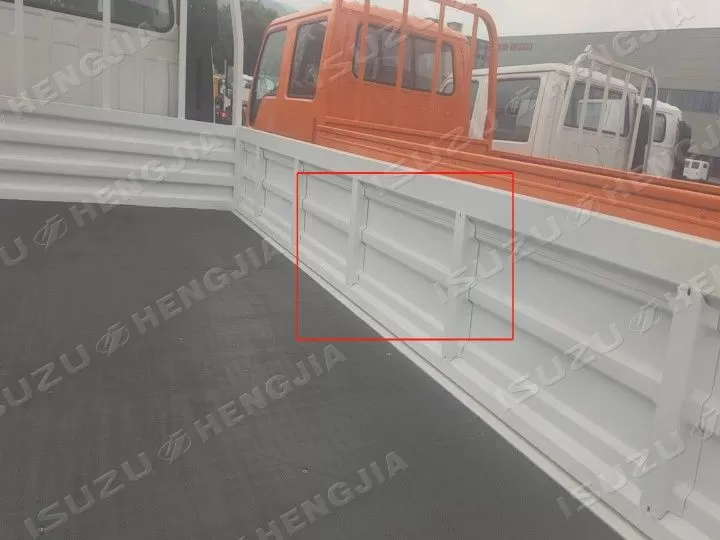

Stiffening beam

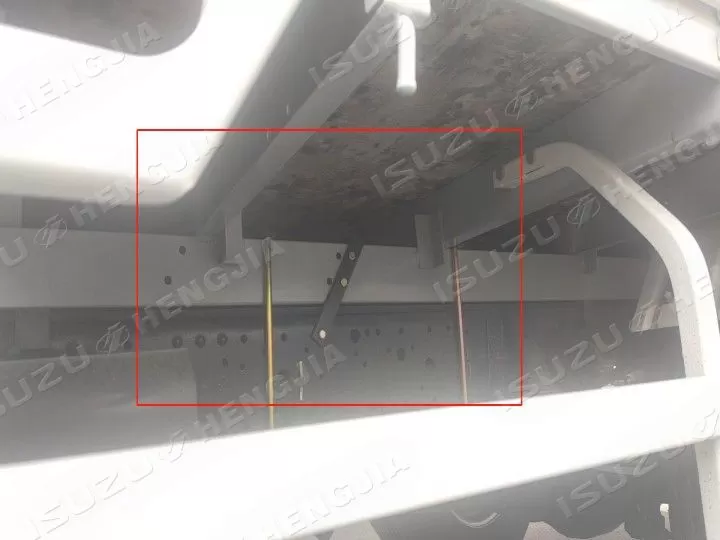

Side protection

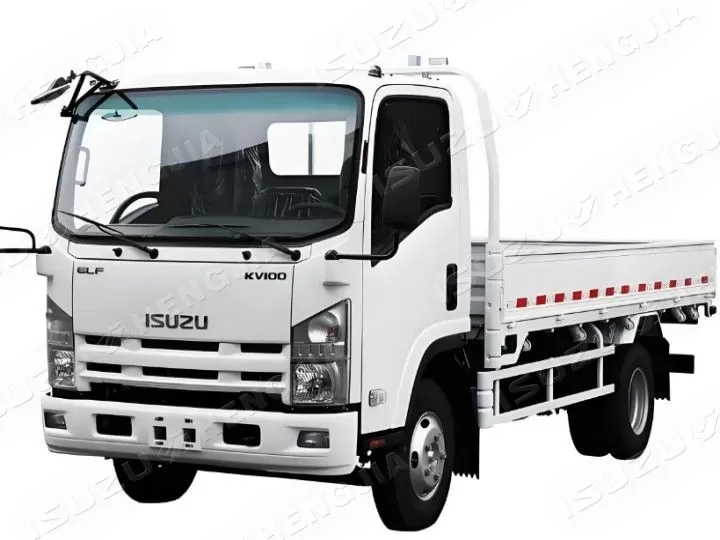

Side protection

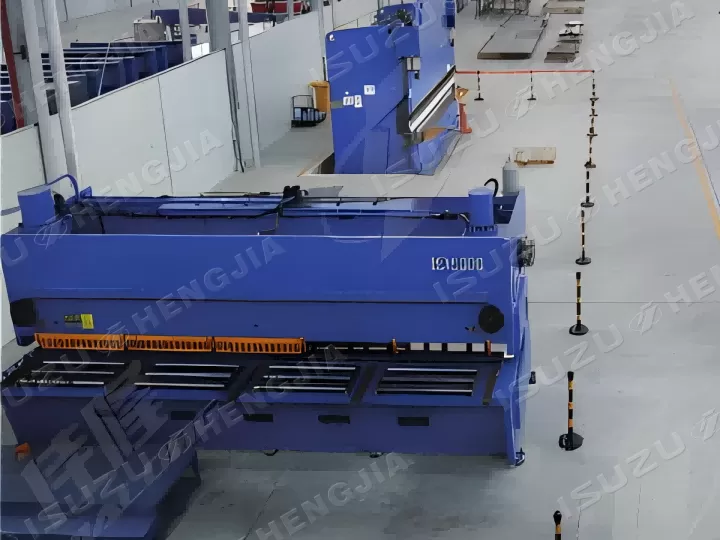

Shear plate bending machine

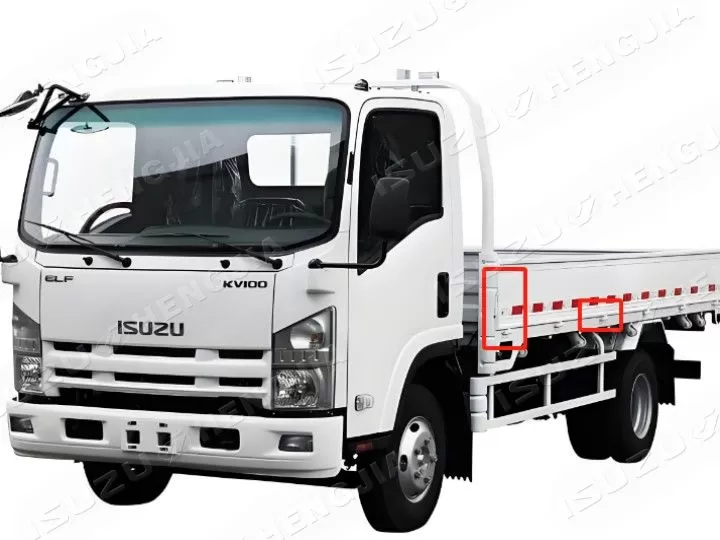

Detachable bars
Spray zone

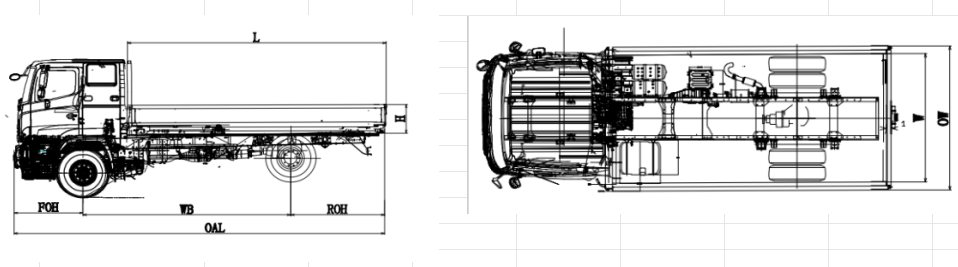

Vehicle Diagram

Model	WB	OAL	OW	OH	FOH	ROH	L	W	H
100P	2490	4870	1950	2200	1015	1100	3050	1850	400
	2765	5300	1950	2200	1015	1450	3500	1850	400
	3360	5995	1950	2200	1015	1525	4250	1850	400
	3815	6800	1950	2200	1015	1835	5050	1850	400
The above sizes are for reference and can be customized according to requirements

Product name			Isuzu 100P Pallet truck
whole parameter	vehicle wheelbase(㎜)		2490	2765	3360	3815
	Vehicle size()		4870×1950×2200	5300X1950X2200	5995X1950X2200	6800X1950X2200
	Total weight (Kg)		4000	4495	4495/7300	7300
	Curb weight (Kg)		2090	2365	2370	3820
	Number of passengers in the cab		2	2	2	2
	Maximum speed		98	98	98	98
	Tire specifications		7.00R16LT 8PR	7.00R16LT 8PR	7.00R16LT 8PR	7.00R16LT 8PR
	Number of tires		4+1	6+1	6+1	6+1
	Emission standards		Euro 5/Euro 6	Euro 5/Euro 6	Euro 5/Euro 6	Euro 5/Euro 6
ENGINE+TRANSMISSION	Transmission model		Isuzu MSB	Isuzu MSB	Isuzu MSB	Isuzu MSB
	Gear gear		5Forward + 1 Reverse	5Forward + 1 Reverse	5Forward + 1 Reverse	5Forward + 1 Reverse
	4KH1CN5LS	72kw/98hp	○	○	○	○
	4KH1CN5MD	83kw/115hp	○	○	○	○
	4KH1CN5HD	95kw/130hp	○	○	○	-
	4KH1CN6LB	88kw/120hp	○	○	○	○
Special performance	Box material	Q235	○	○	○	○
		Q345	○	○	○	○
		High strength steel	○	○	○	○
	Box volume		2.3 m³	2.6 m³	3.2 m³	3.8 m³
	Case size		3050×1850×400	3500×1850×400	4250×1850×400	5050×1850×400
	Factory standards		Bottom plate 3mm/ side plate 2mm, the overall rear fender is welded on the cargo box, left and right side protection, rear protection, reverse cursor sticker	Bottom plate 3mm/ side plate 2mm, the overall rear fender is welded on the cargo box, left and right side protection, rear protection, reverse cursor sticker	Bottom plate 3mm/ side plate 2mm, the overall rear fender is welded on the cargo box, left and right side protection, rear protection, reverse cursor sticker	Bottom plate 3mm/ side plate 2mm, the overall rear fender is welded on the cargo box, left and right side protection, rear protection, reverse cursor sticker
Note: Please contact us to confirm the detailed configuration. Customization is supported
