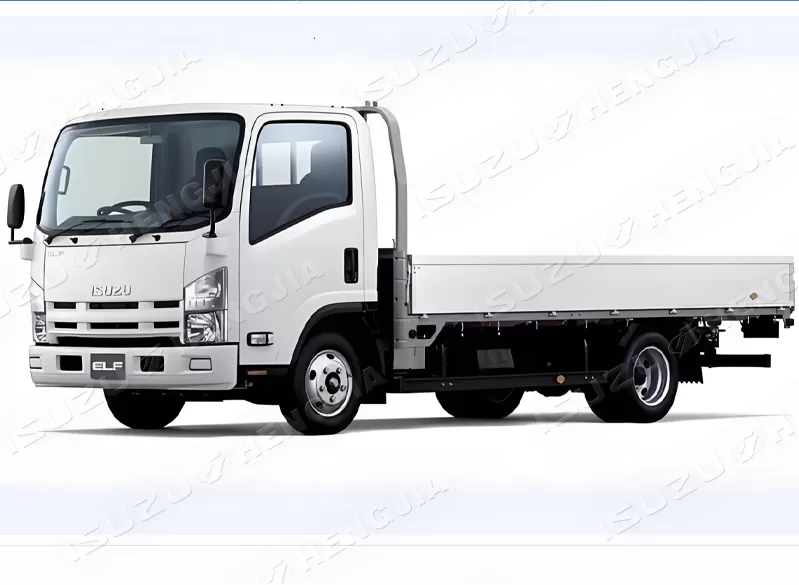

Isuzu npr/700P Pallet truck

Vehicle type	700P Pallet truck
wheelbase	3360mm-5200mm
Driving form	4X2/4X4
Engine Model	4HK1
Engine Horsepower:	189HP-205HP
Load	5T-7T
Box volume	4.3 m³-7.2m³
Box material	Q235/Q355/High strength steel

Inquire Now Next Product

Product Configuration

body	The whole body is made of high carbon steel, with strong rigidity and strength, durable, not easy to deformation
sideboard	The left and right side panels are strengthened at a certain distance to improve the overall strength of the side panels
spray	Preferably domestic quality paint, strong adhesion, wear resistance, acid and alkali resistance, good heat resistance.
subframe	Effectively isolate road vibration, improve ride comfort
Professional customization	Seven years of modification experience, according to the needs of the car to customize the modification plan free of charge
Vehicle advantage	Isuzu chassis + quality cargo compartment perfect match. In the process of development and design, according to the vehicle thinking, the chassis, the body, the matching design, give full play to its comprehensive performance, not a simple patchwork.

Vehicle Diagram

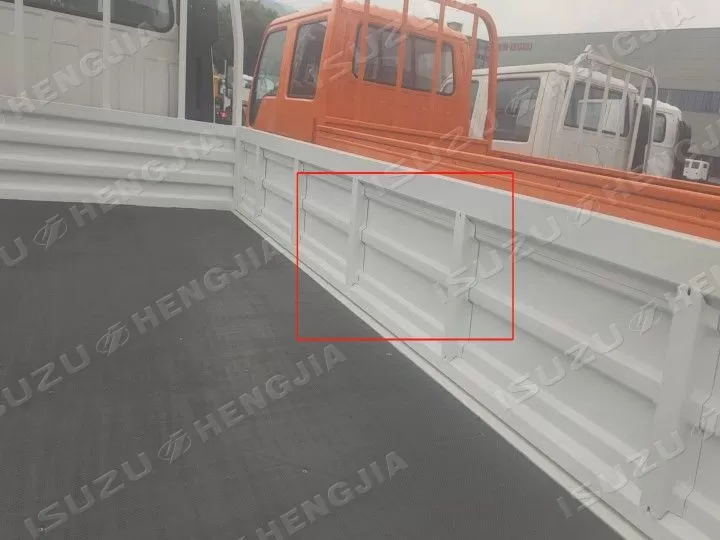

Stiffening beam

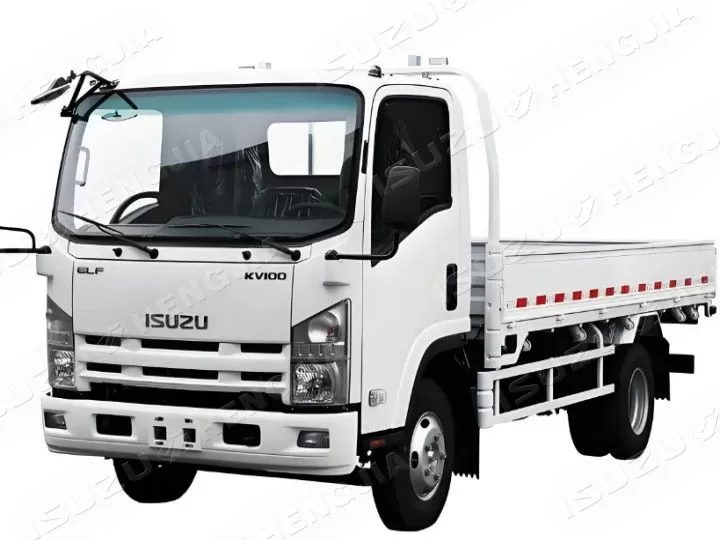

Side protection

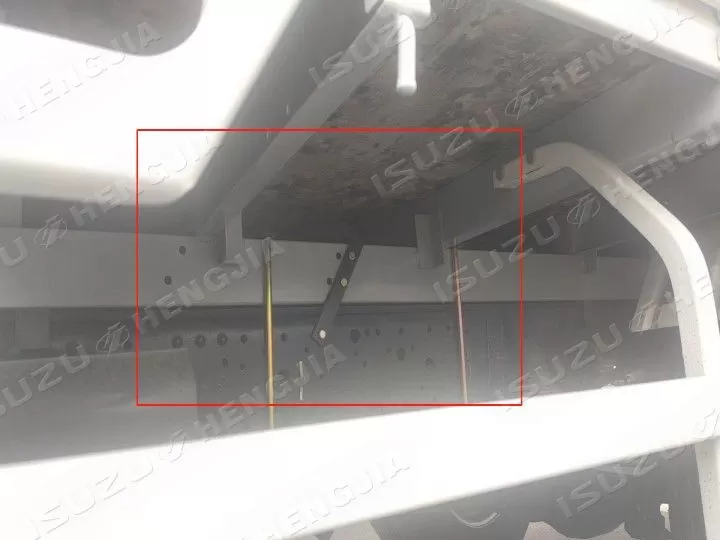

subframe

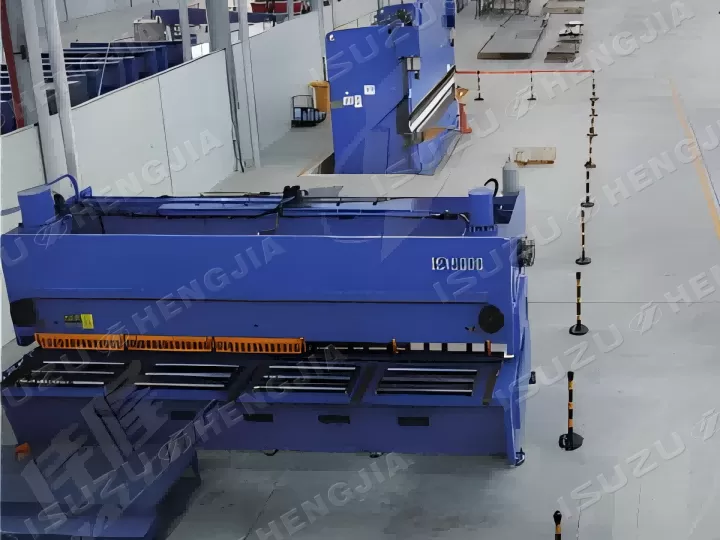

Shear plate bending machine

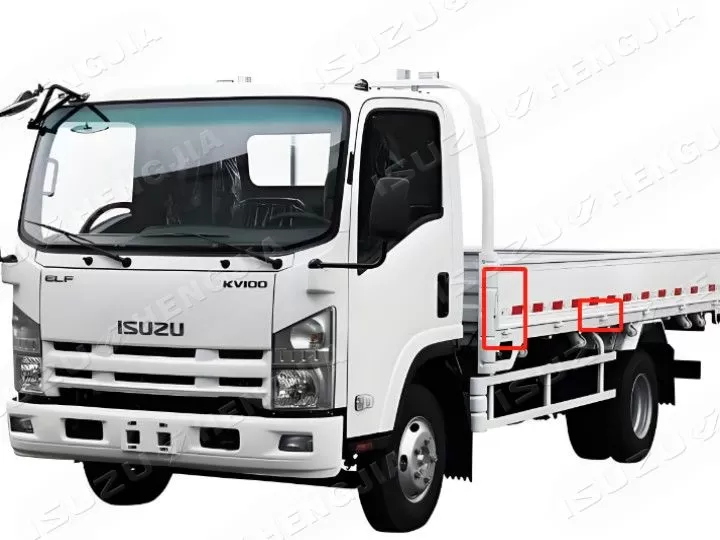

Detachable bars

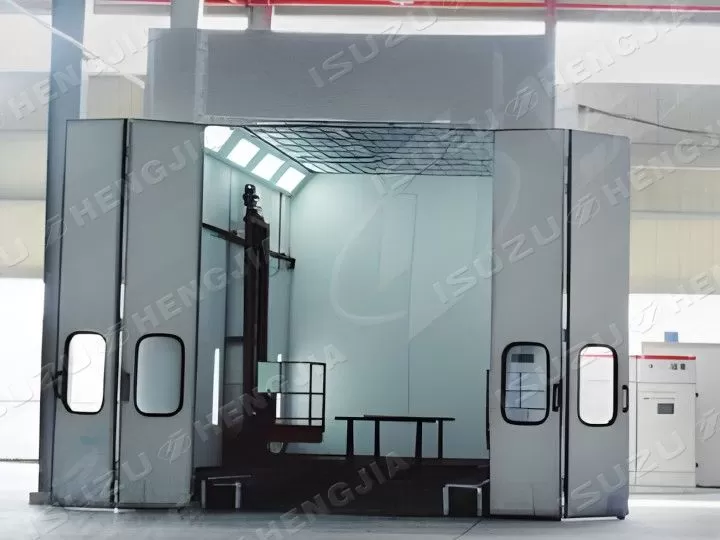

Spray zone

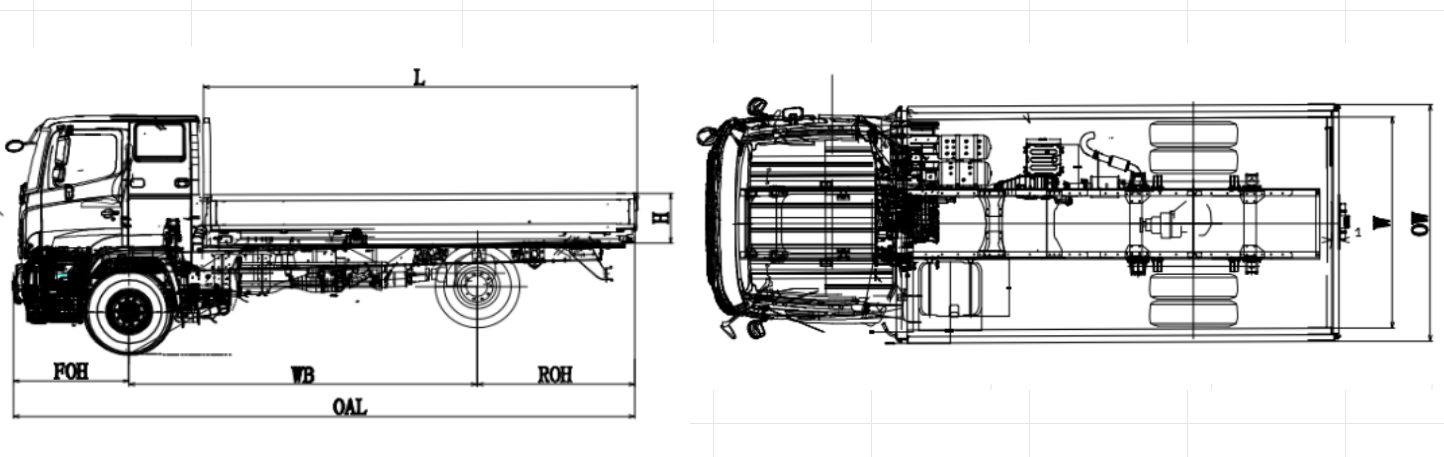

Vehicle Diagram

Model	WB	OAL	OW	OH	FOH	ROH	L	W	H
700P	3360	6200	2400	2380	1110	1730	4200	2300	450
	3815	7000	2400	2380	1110	2075	5100	2300	450
	4175	7600	2400	2380	1110	2315	5600	2300	450
	4475	8050	2400	2380	1110	2465	6100	2300	450
	5200	8950	2400	2380	1110	2640	7000	2300	450
The above sizes are for reference and can be customized according to requirements

Product name			Isuzu 700P Pallet truck
whole parameter	vehicle wheelbase(㎜)		3360	3815	4175	4475	5200
	Vehicle size()		6200X2400X2380	7000X2400X2380	7600X2400X2380	8050X2400X2380	8950X2400X2380
	Total weight (Kg)		10550	10550	10550	10550	10550
	Curb weight (Kg)		4390	4730	4830	5000	5700
	Number of passengers in the cab		3	3	3	3	3
	Maximum speed		110	110	110	110	110
	Tire specifications		235/75R17.5 16PR	235/75R17.5 16PR	235/75R17.5 16PR	235/75R17.5 16PR	235/75R17.5 16PR
	Number of tires		6+1	6+1	6+1	6+1	6+1
	Emission standards		Euro 5/Euro 6	Euro 5/Euro 6	Euro 5/Euro 6	Euro 5/Euro 6	Euro 5/Euro 6
ENGINE+TRANSMISSION	Transmission model		Isuzu MLD	Isuzu MLD	Isuzu MLD	Isuzu MLD	Isuzu MLD
	Gear gear		6Forward + 1 Revers	6Forward + 2 Revers	6Forward + 3 Revers	6Forward + 4 Revers	6Forward + 5 Revers
	4HK1-TCG60	151kw/205hp	○	○	○	○	○
	4HK1-TCG61	139kw/189hp	○	○	○	○	○
Special performance	Box material	Q235	○	○	○	○	○
		Q345	○	○	○	○	○
		High strength steel	○	○	○	○	○
	Box volume		4.3 m³	5.3 m³	5.8 m³	6.3 m³	7.2 m³
	Case size		4200×2300×450	5100×2300×450	5600×2300×450	6100×2300×450	7000×2300×450
	Factory standards		Bottom plate 3mm/ side plate 2mm, the overall rear fender is welded to the cargo box, left and right side protection, rear protection, and reverse cursor sticker	Bottom plate 3mm/ side plate 2mm, the overall rear fender is welded to the cargo box, left and right side protection, rear protection, and reverse cursor sticker	Bottom plate 3mm/ side plate 2mm, the overall rear fender is welded to the cargo box, left and right side protection, rear protection, and reverse cursor sticker	Bottom plate 3mm/ side plate 2mm, the overall rear fender is welded to the cargo box, left and right side protection, rear protection, and reverse cursor sticker	Bottom plate 3mm/ side plate 2mm, the overall rear fender is welded to the cargo box, left and right side protection, rear protection, and reverse cursor sticker
Note: Please contact us to confirm the detailed configuration. Customization is supported
