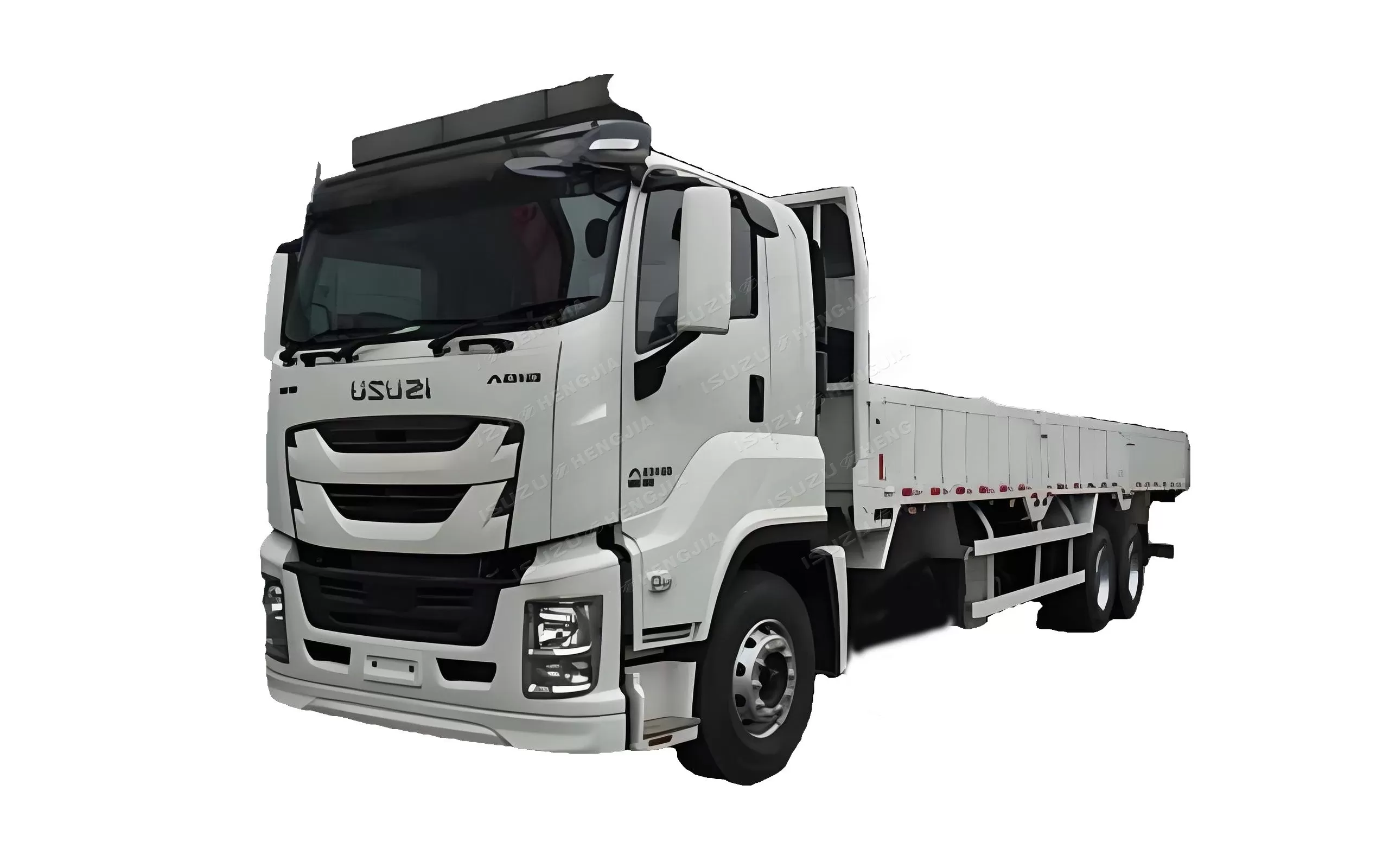

Isuzu 6X4 VC66 Pallet truck

Vehicle type	6X4 GIGA VC66 plate truck
wheelbase	3985+1370mm-5820+1370mm
Driving form	6X4/6X6
Engine Model	6UZ1/6WG1
Engine Horsepower:	350HP-520HP
Load	22T-24T
Box volume	7.8m³-13m³
Box material	Q235/Q355/High strength steel

Inquire Now Next Product

Product Configuration

body	The whole body is made of high carbon steel, with strong rigidity and strength, durable, not easy to deformation
sideboard	The left and right side panels are strengthened at a certain distance to improve the overall strength of the side panels
spray	Preferably domestic quality paint, strong adhesion, wear resistance, acid and alkali resistance, good heat resistance.
subframe	Effectively isolate road vibration, improve ride comfort
Professional customization	Seven years of modification experience, according to the needs of the car to customize the modification plan free of charge
Vehicle advantage	Isuzu chassis + quality cargo compartment perfect match. In the process of development and design, according to the vehicle thinking, the chassis, the body, the matching design, give full play to its comprehensive performance, not a simple patchwork.

Vehicle Diagram:

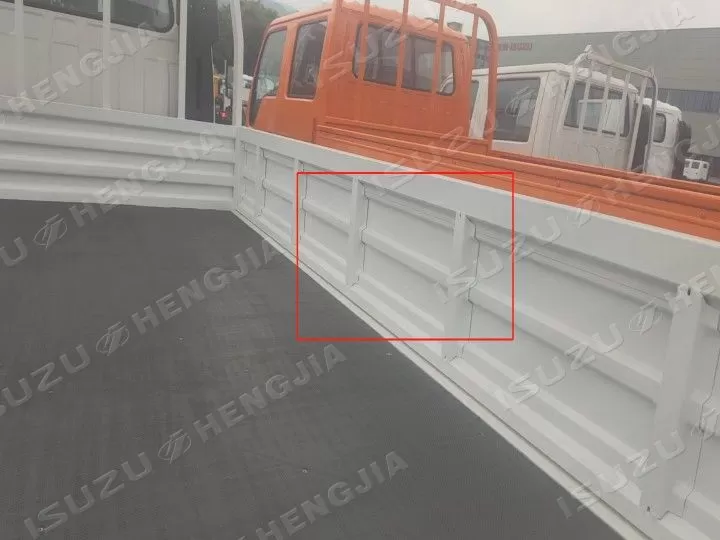

Stiffening beam

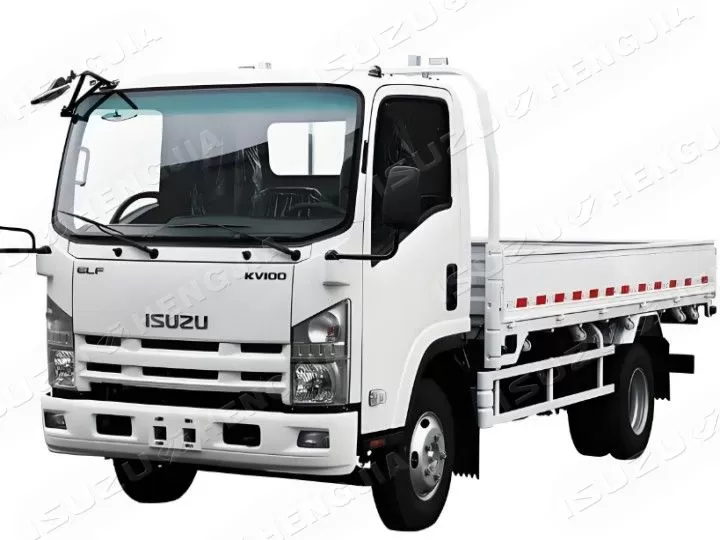

Side protection

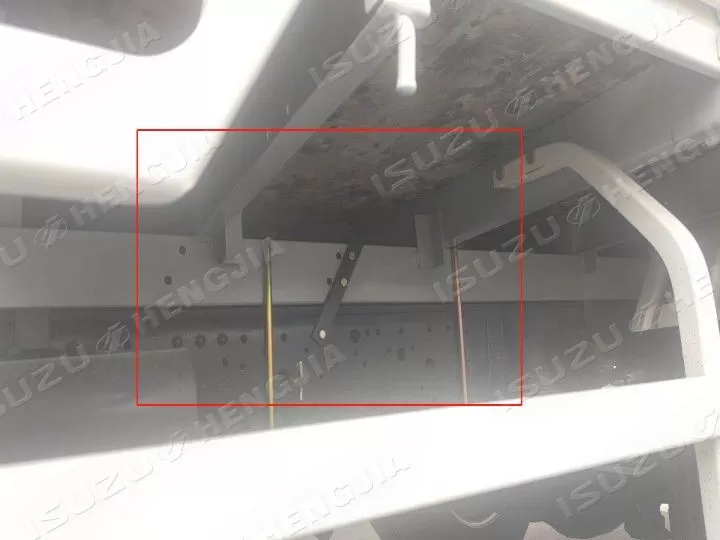

subframe

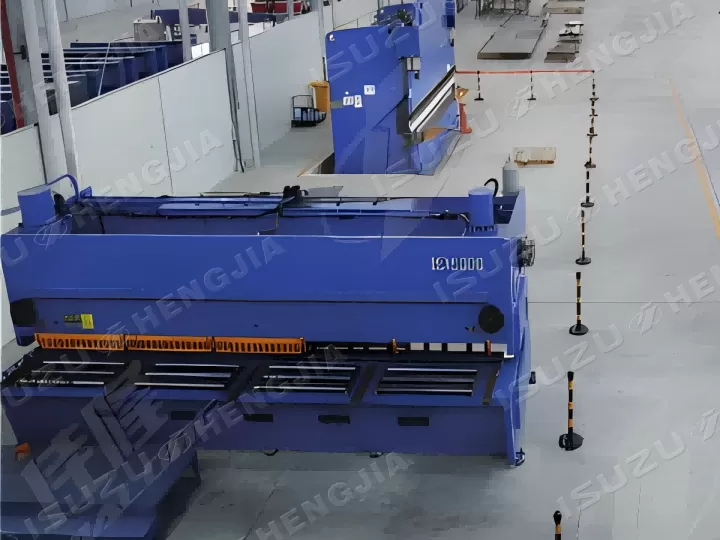

Shear plate bending machine

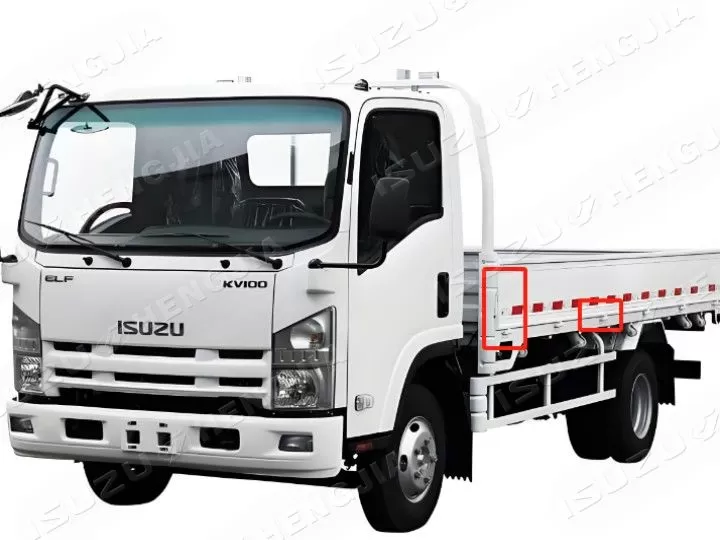

Detachable bars

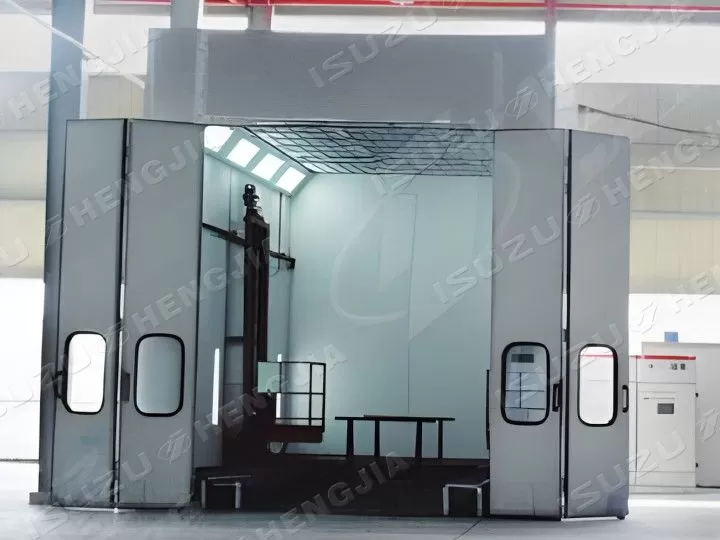

Spray zone

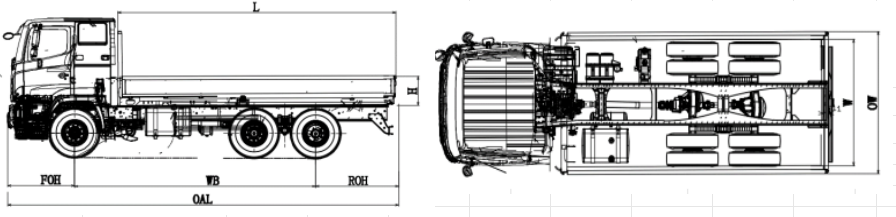

Vehicle Diagram :

Model	WB	OAL	OW	OH	FOH	ROH	L	W	H
6X4 VC66	3985+1370	7900	2540	3100	1335	1905	5400	2400	600
	4600+1370	9900	2490	3100	1335	2055	7700	2400	600
	5100+1370	10500	2490	3100	1335	2405	8000	2400	600
	5820+1370	11500	2490	3100	1335	3240	9000	2400	600
The above sizes are for reference and can be customized according to requirements

Product name			Isuzu6X4 VC66 Pallet truck
whole parameter	vehicle wheelbase(㎜)		3985+1370	4600+1370	5100+1370	5820+1370
	Vehicle size()		7800X2550X3100	9900X2540X3100	10500X2540X3100	11500X2540X3100
	Total weight (Kg)		35000	35000	35000	35000
	Curb weight (Kg)		11840	12200	12900	13550
	Number of passengers in the cab		3	3	3	3
	Maximum speed		105	105	105	105
	Tire specifications		385/65R22.5 20PR/ 315/80R22.5 20PR	385/65R22.5 20PR/ 315/80R22.5 20PR	385/65R22.5 20PR/ 315/80R22.5 20PR	385/65R22.5 20PR/ 315/80R22.5 20PR
	Number of tires		10+1	10+1	10+1	10+1
	Emission standards		Euro 6	Euro 6	Euro 6	Euro 6
ENGINE+TRANSMISSION	Transmission model		ZF 8S2330TD	ZF 8S2330TD	ZF 8S2330TD	ZF 8S2330TD
	Gear gear		8Forward +2 Reverse	8Forward +2 Reverse	8Forward +2 Reverse	8Forward +2 Reverse
	6WG1-TCG60	309kw/420hp	/	/	○	/
	6WG1-TCG61	338kw/460hp	/	○	○	○
	6WG1-TCG62	381kw/520hp	/	○	/	/
	6UZ1-TCG61	278kw/380hp	○	○	/	○
Special performance	Box material	Q235	○	○	○	○
		Q345	○	○	○	○
		High strength steel	○	○	○	○
	Box volume		7.8 m³	11 m³	11.5 m³	13 m³
	Case size		5400×2400×600	7700×2400×600	8000×2400×600	9000×2400×600
	Factory standards		Bottom plate 4mm/ side plate 3mm, the overall rear fender is welded on the cargo box, left and right side protection, rear protection, reverse cursor sticker	Bottom plate 4mm/ side plate 3mm, the overall rear fender is welded on the cargo box, left and right side protection, rear protection, reverse cursor sticker	Bottom plate 4mm/ side plate 3mm, the overall rear fender is welded on the cargo box, left and right side protection, rear protection, reverse cursor sticker	Bottom plate 4mm/ side plate 3mm, the overall rear fender is welded on the cargo box, left and right side protection, rear protection, reverse cursor sticker
Note: Please contact us to confirm the detailed configuration. Customization is supported
