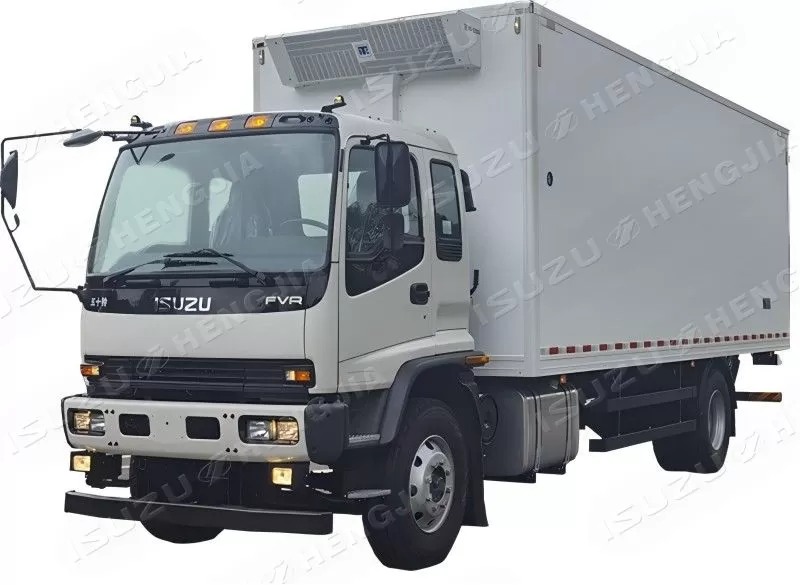

Refrigerated Truck
| Wheelbase | 4500mm-7150mm |
| Engine Model | 6HK1 |
| Engine Horsepower | 241HP-300HP |
| Load | 9T-10T |
| Refrigeration machine brand | Carrier/Thermo King/Domestic |
| Box volume | 47.5 m³-60m³ |
| Box space temperature | ’-18 degrees ~ +20 degrees |
Product Configuration
| Box body | Using polyester wet board making process and fully enclosed polyurethane board bonding method, the thermal insulation performance reaches the national A-level standard. | |||
| Box board | The inner and outer wall panels are made of domestic high-quality nano-glass (non-light-absorbing, good heat insulation, strong hardness, and anti-oxidation), and the middle insulation material is imported polyurethane with no gap filling; the thickness is designed according to the customer's temperature requirements for the box; | |||
| Chassis | The bottom of the box is an aluminum alloy patterned plate or, with a 150mm overall bend skirt, which has better protection and sealing performance; | |||
| Accessories | The perimeter of the box is made of aluminum alloy edging, stainless steel corners, stainless steel door locks, 4 anti-collision rubbers, stainless steel door frames, stainless steel hinges, and energy-saving LED lights in the box. | |||
| Others | The thickness of the box can be selected, and the inner and outer wall panels can be selected from fiberglass, color steel, stainless steel, and aluminum alloy. | |||
| Process quality | The latest fully sealed insulation box, lightweight, high strength, high insulation, and long service life | |||
| Professional customization | Seven years of modification experience, free customization of modification plans according to vehicle needs | |||
| Vehicle advantages | Isuzu refrigerated truck dedicated chassis + high-quality refrigerated compartment + high-quality refrigeration system Perfect match. In the process of refrigerated truck development and design, the chassis, compartment, and refrigeration system are matched and designed according to the whole vehicle thinking, giving full play to the comprehensive performance of high-quality chassis, high-quality refrigerated compartment, and high-quality refrigeration system, not simply patchwork. | |||
Vehicle Diagram
Rain test
Imported insulation board
Pressure plate machine
Process quality
Professional customization
Stainless steel lock
Vehicle Diagram
| Model | Cab type | WB | OAL | 0W | OH | FOH | ROH | L | W | H |
| FVR | Single row | 5800 | 10000 | 2550 | 4000 | 2865 | 7600 | 2400 | 2600 | |
| 6300 | 11000 | 2400 | 3500 | 1335 | 3365 | 8600 | 2400 | 2600 | ||
| 7200 | 12000 | 2400 | 3500 | 1335 | 3465 | 9600 | 2400 | 2600 | ||
| Note: The above dimensions are for reference only and can be customized as required | ||||||||||
| Isuzu FVR Refrigerated Truck | |||
| Wheelbase | 5800 | 6300 | 7200 |
| Tank Volume | 47.5 m³ | 54 m³ | 60 m³ |
| Box size | 7600×2400×2600 | 8600×2400×2600 | 9600×2400×2600 |
| Box space temperature | Carrier/Thermo King/Domestic | Carrier/Thermo King/Domestic | Carrier/Thermo King/Domestic |
| Refrigeration machine brand | '-18 degrees ~ +20 degrees | '-18 degrees ~ +20 degrees | '-18 degrees ~ +20 degrees |
| Engine | 241hp/300hp | 241hp/300hp | 241hp/300hp |
| Transmission | Fast 8JS95TE-C | Fast 8JS95TE-C | Fast 9JS119TA |
| Product name | Isuzu FVR Refrigerated Truck | ||||
| Vehicle parameters | Vehicle wheelbase (mm) | 5800 | 6300 | 7200 | |
| Vehicle size() | 10000X2550X4000 | 11000X2550X4000 | 12000X2550X4000 | ||
| Total weight (Kg) | 18000 | 18000 | 18000 | ||
| Curb weight (Kg) | 8050 | 8550 | 8960 | ||
| Number of passengers in the cab | 3 | 3 | 3 | ||
| Maximum speed | 110 | 110 | 110 | ||
| Tire specifications | 295/80R22.5 16PR | 295/80R22.5 16PR | 295/80R22.5 16PR | ||
| Number of tires | 6+1 | 6+1 | 6+1 | ||
| Emission standards | National V, National VI | National V, National VI | National V, National VI | ||
| Transmission parameters | Transmission model | Fast 8JS95TE-C | Fast 8JS95TE-C | Fast 9JS119TA | |
| Gear position | 8Forward +2 Reverse | 8Forward +2 Reverse | 9Forward +1 Reverse | ||
| 6HK1-TCL | 177kw/241hp | ○ | ○ | \ | |
| 6HK1-TCH | 221kw/300hp | \ | \ | ○ | |
| 6HK1-TCG60 | 221kw/300hp | \ | \ | ○ | |
| 6HK1-TCG61 | 177kw/241hp | ○ | ○ | ○ | |
| Special performance | Box material | FRP + polyurethane foam + FRP | FRP + polyurethane foam + FRP | FRP + polyurethane foam + FRP | |
| Box volume | 47.5 m³ | 54 m³ | 60 m³ | ||
| Box size | 7600×2400×2600 | 8600×2400×2600 | 9600×2400×2600 | ||
| Refrigeration machine brand | Carrier/Thermo King/Domestic | Carrier/Thermo King/Domestic | Carrier/Thermo King/Domestic | ||
| Box space temperature | '-18 degrees ~ +20 degrees | '-18 degrees ~ +20 degrees | '-18 degrees ~ +20 degrees | ||
| Factory standard | The bottom plate is bent with a 150mm skirt, 304 stainless steel hardware, left and right side protection, rear protection, box rain test, and reflective label | The bottom plate is bent with a 150mm skirt, 304 stainless steel hardware, left and right side protection, rear protection, box rain test, and reflective label | The bottom plate is bent with a 150mm skirt, 304 stainless steel hardware, left and right side protection, rear protection, box rain test, and reflective label | ||
| Note: Please contact us for confirmation of detailed configuration, customization is supported | |||||
