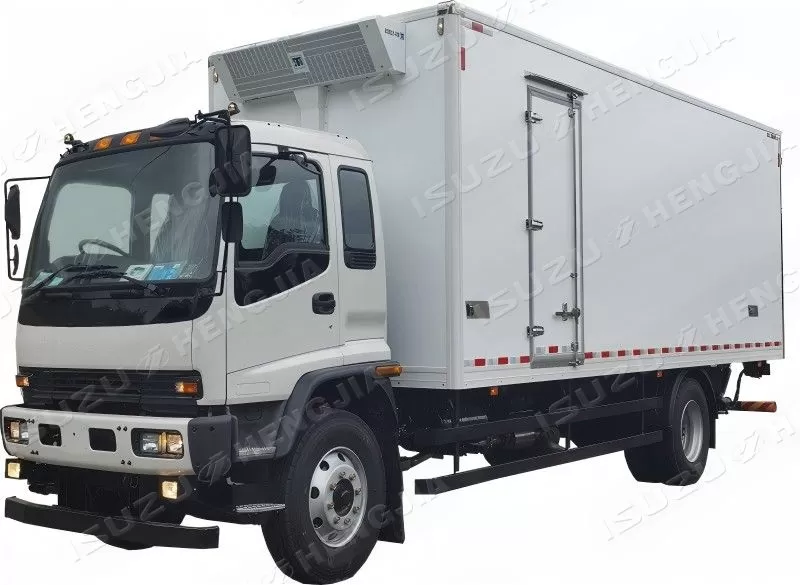

ISUZU F/FVZ Refrigerated Truck

Wheelbase	4350+1370mm-5700+1300mm
Engine Model	6HK1
Engine Horsepower	300HP
Load	14T-15T
Refrigeration machine brand	Carrier/Thermo King/Domestic
Box volume	41 m³-56.8m³
Box space temperature	’-18 degrees ~ +20 degrees

Inquire Now Next Product

Product Configuration

Box body	Using polyester wet board making process and fully enclosed polyurethane board bonding method, the thermal insulation performance reaches the national A-level standard.
Box board	The inner and outer wall panels are made of domestic high-quality nano-glass (non-light-absorbing, good heat insulation, strong hardness, and anti-oxidation), and the middle insulation material is imported polyurethane with no gap filling; the thickness is designed according to the customer's temperature requirements for the box;
Chassis	The bottom of the box is an aluminum alloy patterned plate or, with a 150mm overall bend skirt, which has better protection and sealing performance;
Accessories	The perimeter of the box is made of aluminum alloy edging, stainless steel corners, stainless steel door locks, 4 anti-collision rubbers, stainless steel door frames, stainless steel hinges, and energy-saving LED lights in the box.
Others	The thickness of the box can be selected, and the inner and outer wall panels can be selected from fiberglass, color steel, stainless steel, and aluminum alloy.
Process quality	The latest fully sealed insulation box, lightweight, high strength, high insulation, and long service life
Professional customization	Seven years of modification experience, free customization of modification plans according to vehicle needs
Vehicle advantages	Isuzu refrigerated truck dedicated chassis + high-quality refrigerated compartment + high-quality refrigeration system Perfect match. In the process of refrigerated truck development and design, the chassis, compartment, and refrigeration system are matched and designed according to the whole vehicle thinking, giving full play to the comprehensive performance of high-quality chassis, high-quality refrigerated compartment, and high-quality refrigeration system, not simply patchwork.

Vehicle Diagram

Rain test
Imported insulation board
Pressure plate machine
Process quality
Professional customization
Stainless steel lock

Vehicle Diagram

Refrigerated Truck

Model	Cab type	WB	OAL	0W	OH	FOH	ROH	L	W	H
FVZ	Half row	4350+1370	8960	2490	4000	2905	6560	2400	2600
		4650+1300	9410	2490	4000	1335	2055	7000	2400	2600
		5100+1300	10210	2490	4000	1335	2405	7900	2400	2600
		5700+1300	11575	2490	4000	1335	3770	9110	2400	2600
Note: The above dimensions are for reference only and can be customized as required

Isuzu FVZ Refrigerated Truck
Wheelbase	4350+1370	4650+1300	5100+1300	5700+1300
Box Volume	41 m³	44 m³	48.5 m³	56.8 m³
Box size	6560×2400×2600	7000×2400×2600	7800×2400×2600	9110×2400×2600
Box space temperature	Carrier/Thermo King/Domestic	Carrier/Thermo King/Domestic	Carrier/Thermo King/Domestic	Carrier/Thermo King/Domestic
Refrigeration machine brand	'-18 degrees ~ +20 degrees	'-18 degrees ~ +20 degrees	'-18 degrees ~ +20 degrees	'-18 degrees ~ +20 degrees
Engine	300hp	300hp	300hp	300hp
Transmission	Fast 9JS119TA	Fast 9JS119TA	Fast 9JS119TA	Fast 9JS119TA

Product name			Isuzu FVZ Refrigerated Truck
Vehicle parameters	Vehicle wheelbase (mm)		4350+1370	4650+1300	5100+1300	5700+1300
	Vehicle size ()		8960X2540X4000	9410X2490X4000	10210X2490X4000	11575X2490X4000
	Total mass (Kg)		25000	25000	25000	25000
	Curb weight (Kg)		10600	10800	11000	11300
	Number of passengers in the cab		3	3	3	3
	Maximum speed		105	105	105	105
	295/80R22.5 16PR	295/80R22.5 16PR	295/80R22.5 16PR	295/80R22.5 16PR	295/80R22.5 16PR
	Tire quantity		10+1	10+1	10+1	10+1
	Emission standards		National V, National VI	National V, National VI	National V, National VI	National V, National VI
Transmission parameters	Transmission model		Fast 9JS119TA	Fast 9JS119TA	Fast 9JS119TA	Fast 9JS119TA
	Gear position		9Forward +1 Reverse	9Forward +1 Reverse	9Forward +1 Reverse	9Forward +1 Reverse
	6HK1-TCH	221kw/300hp	\	○	○	○
	6HK1-TCG60	221kw/300hp	○	○	○	○
Special performance	Box material		Fiberglass + polyurethane foam + fiberglass	Fiberglass + polyurethane foam + fiberglass	Fiberglass + polyurethane foam + fiberglass	Fiberglass + polyurethane foam + fiberglass
	Box volume		41 m³	44 m³	48.5 m³	56.8 m³
	Box size		6560×2400×2600	7000×2400×2600	7800×2400×2600	9110×2400×2600
	Refrigeration machine brand		Carrier/Thermo King/Domestic	Carrier/Thermo King/Domestic	Carrier/Thermo King/Domestic	Carrier/Thermo King/Domestic
	Box space temperature		'-18 degrees ~ +20 degrees	'-18 degrees ~ +20 degrees	'-18 degrees ~ +20 degrees	'-18 degrees ~ +20 degrees
	Factory standard		Bottom plate overall bending 150mm skirt, 304 stainless steel hardware, left and right side protection, rear protection, box rain test, reflective label	The bottom plate is bent as a whole with 150mm skirt, 304 stainless steel hardware, left and right side protection, rear protection, box rain test, reflective label	The bottom plate is bent as a whole with 150mm skirt, 304 stainless steel hardware, left and right side protection, rear protection, box rain test, reflective label	The bottom plate is bent as a whole with 150mm skirt, 304 stainless steel hardware, left and right side protection, rear protection, box rain test, reflective label
Note: Please contact us for confirmation of detailed configuration, customization is supported
