ISUZU NKR /100P Refrigerated Truck

Wheelbase	2490mm-3815mm
Engine Model	4KH1
Engine Horsepower	98HP-130HP
Load	1.5T-4T
Refrigeration machine brand	Carrier/Thermo King/Domestic
Box volume	7.8 m³-16 m³
Box space temperature	'-18 degrees ~ +20 degrees

Inquire Now Next Product

Product Configuration

Box body	Using polyester wet board making process and fully enclosed polyurethane board bonding method, the thermal insulation performance reaches the national A-level standard.
Box board	The inner and outer wall panels are made of domestic high-quality nano-glass (non-light-absorbing, good heat insulation, strong hardness, and anti-oxidation), and the middle insulation material is imported polyurethane with no gap filling; the thickness is designed according to the customer's temperature requirements for the box;
Chassis	The bottom of the box is an aluminum alloy patterned plate or, with a 150mm overall bend skirt, which has better protection and sealing performance;
Accessories	The perimeter of the box is made of aluminum alloy edging, stainless steel corners, stainless steel door locks, 4 anti-collision rubbers, stainless steel door frames, stainless steel hinges, and energy-saving LED lights in the box.
Others	The thickness of the box can be selected, and the inner and outer wall panels can be selected from fiberglass, color steel, stainless steel, and aluminum alloy.
Process quality	The latest fully sealed insulation box, lightweight, high strength, high insulation, and long service life
Professional customization	Seven years of modification experience, free customization of modification plans according to vehicle needs
Vehicle advantages	Isuzu refrigerated truck dedicated chassis + high-quality refrigerated compartment + high-quality refrigeration system Perfect match. In the process of refrigerated truck development and design, the chassis, compartment, and refrigeration system are matched and designed according to the whole vehicle thinking, giving full play to the comprehensive performance of high-quality chassis, high-quality refrigerated compartment, and high-quality refrigeration system, not simply patchwork.

Vehicle Diagram

Rain test
Imported insulation board
Pressure plate machine
Process quality
Professional customization
Stainless steel lock

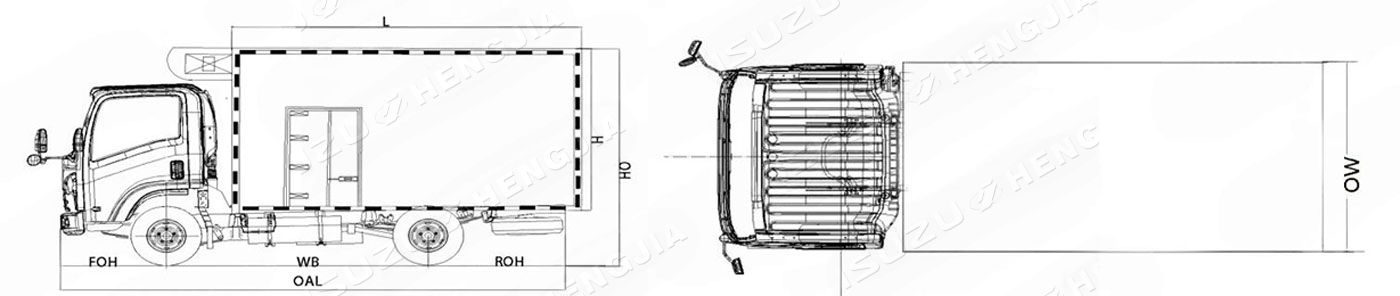

Vehicle Diagram

100P Refrigerated Truck

Model	Cab type	WB	OAL	0W	OH	FOH	ROH	L	W	H
100P	Single row	2490	4870	1850	2700	1015	1365	3050	1620	1560
		2765	5300	1850	2700	1015	1520	32500	1750	1730
		3360	5995	1950	2700	1015	1620	4250	1950	1900
		3815	6800	2050	2700	1015	1970	4950	1900	1900

Note: The above dimensions are for reference only and can be adjusted as required Customized

Isuzu 100P Refrigerated Truck
Wheelbase	2490	2765	3360	3815
Box volume	7.8 m³	10.5 m³	14 m³	16 m³
Cabinet size	3050×1620×1640	3500× 1750×1700	4250×1850×1750	4950×1850×1800
Box space temperature	'-18 degrees ~ +20 degrees	'-18 degrees ~ +20 degrees	'-18 degrees ~ +20 degrees	'-18 degrees ~ +20 degrees
Refrigeration machine brand	Carrier/Thermo King/Domestic	Carrier/Thermo King/Domestic	Carrier/Thermo King/Domestic	Carrier/Thermo King/Domestic
Engine	98hp/115hp/120hp/130hp	98hp/115hp/120hp/130hp	98hp/115hp/120hp/130hp	98hp/115hp/120hp/130hp
Transmission	Isuzu MSB	Isuzu MSB	Isuzu MSB	Isuzu MSB

Product Name			Isuzu 100P Refrigerated Truck
Vehicle Parameters	Vehicle Wheelbase (mm)		2490	2765	3360	3815
	Vehicle Size()		4870×1810×2650	5300X1850X2700	5995X1950X2750	6800X2050X2900
	Total weight (Kg)		4000	4495	4495/7300	7300
	Curb weight (Kg)		2500	2750	2950	3250
	Number of passengers in the cab		2	2	2	2
	Maximum speed		98	98	98	98
	Tire specifications		7.00R16LT 8PR	7.00R16LT 8PR	7.00R16LT 8PR	7.00R16LT 8PR
	Tire quantity		6+1	6+1	6+1	6+1
	Emission standards		National V, National VI	National V, National VI	National V, National VI	National V, National VI
Transmission parameters	Transmission model		Isuzu MSB	Isuzu MSB	Isuzu MSB	Isuzu MSB
	Gear position		5 Forward + 1 Reverse	5 Forward + 1 Reverse	5 Forward + 1 Reverse	5 Forward + 1 Reverse
	4KH1CN5LS	72kw/98hp	○	○	○	○
	4KH1CN5MD	83kw/115hp	○	○	○	○
	4KH1CN5HD	95kw/130hp	○	○	○	-
	4KH1CN6LB	88kw/120hp	○	○	○	○
Special performance	Box material		Fiberglass + polyurethane foam + fiberglass	Fiberglass + polyurethane foam + fiberglass	Fiberglass + polyurethane foam + fiberglass	Fiberglass + polyurethane foam + fiberglass
	Box volume		7.8 m³	10.5 m³	14 m³	16 m³
	Box size		3050×1620×1.560	3500×1750×1730	4250×1850×1800	4950×1850×1800
	Refrigeration machine brand		Carrier/Thermo King/Domestic	Carrier/Thermo King/Domestic	Carrier/Thermo King/Domestic	Carrier/Thermo King/Domestic
	Box space temperature		'-18 degrees ~ +20 degrees	'-18 degrees ~ +20 degrees	'-18 degrees ~ +20 degrees	'-18 degrees ~ +20 degrees
	Factory standard		The overall bending of the bottom plate is 150mm skirt, 304 stainless steel hardware, left and right side protection, rear protection, box rain test, reflective label	The overall bending of the bottom plate is 150mm skirt, 304 stainless steel hardware, left and right side protection, rear protection, box rain test, reflective label	The overall bending of the bottom plate is 150mm skirt, 304 stainless steel hardware, left and right side protection, rear protection, box rain test, reflective label	The overall bending of the bottom plate is 150mm skirt, 304 stainless steel hardware, left and right side protection, rear protection, box rain test, reflective label
Note: Please contact us for detailed configuration confirmation, customization is supported
