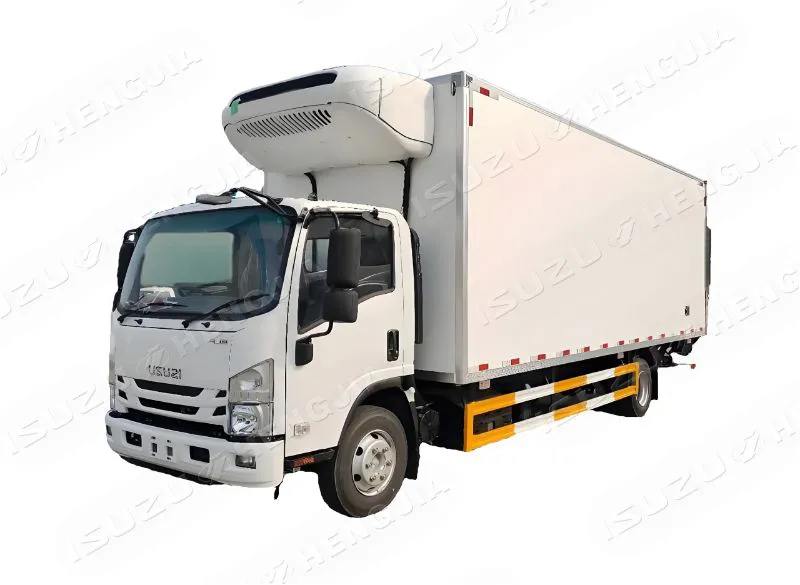

ISUZU NPR /700P Refrigerated Truck

Wheelbase	3360mm-5200mm
Engine Model	4HK1
Engine Horsepower	189HP-205HP
Load	5T-7T
Refrigeration machine brand	Carrier/Thermo King/Domestic
Box volume	20.5 m³-34m³
Box space temperature	’-18 degrees ~ +20 degrees

Inquire Now Next Product

Product Configuration

Box body	Using polyester wet board making process and fully enclosed polyurethane board bonding method, the thermal insulation performance reaches the national A-level standard.
Box board	The inner and outer wall panels are made of domestic high-quality nano-glass (non-light-absorbing, good heat insulation, strong hardness, and anti-oxidation), and the middle insulation material is imported polyurethane with no gap filling; the thickness is designed according to the customer's temperature requirements for the box;
Chassis	The bottom of the box is an aluminum alloy patterned plate or, with a 150mm overall bend skirt, which has better protection and sealing performance;
Accessories	The perimeter of the box is made of aluminum alloy edging, stainless steel corners, stainless steel door locks, 4 anti-collision rubbers, stainless steel door frames, stainless steel hinges, and energy-saving LED lights in the box.
Others	The thickness of the box can be selected, and the inner and outer wall panels can be selected from fiberglass, color steel, stainless steel, and aluminum alloy.
Process quality	The latest fully sealed insulation box, lightweight, high strength, high insulation, and long service life
Professional customization	Seven years of modification experience, free customization of modification plans according to vehicle needs
Vehicle advantages	Isuzu refrigerated truck dedicated chassis + high-quality refrigerated compartment + high-quality refrigeration system Perfect match. In the process of refrigerated truck development and design, the chassis, compartment, and refrigeration system are matched and designed according to the whole vehicle thinking, giving full play to the comprehensive performance of high-quality chassis, high-quality refrigerated compartment, and high-quality refrigeration system, not simply patchwork.

Vehicle Diagram

Rain test
Imported insulation board
Pressure plate machine
Process quality
Professional customization
Stainless steel lock

Vehicle Diagram

Refrigerated Truck

Model	Cab type	WB	OAL	0W	OH	FOH	ROH	L	W	H
700P	Single row	3360	6200	2400	3500	1110	1730	4200	2200	2200
		3815	7000	2400	3500	1110	2075	5100	2200	2200
		4175	7600	2400	3500	1110	2315	5600	2200	2200
		4475	8050	2400	3500	1110	2465	6100	2200	2200
		5200	9050	2400	3500	1110	2740	7000	2200	2200
The above dimensions are for reference only and can be customized as required

Wheelbase	3360	3815	4175	4475	5200
Box Volume	20.5 m³	25 m³	27 m³	29.5 m³	34 m³
Box Dimensions	4200×2200×2200	5100×2200×2200	5600×2200×2200	6100×2200×2200	7000×2200×2200
Box Temperature Range	Carrier/Thermo King/Domestic	Carrier/Thermo King/Domestic	Carrier/Thermo King/Domestic	Carrier/Thermo King/Domestic	Carrier/Thermo King/Domestic
Refrigeration Unit Brand	'-18°C~+20°C	'-18°C~+20°C	'-18°C~+20°C	'-18°C~+20°C	'-18°C~+20°C
Engine	189hp/205hp	189hp/205hp	189hp/205hp	189hp/205hp	189hp/205hp
Transmission	Isuzu MLD	Isuzu MLD	Isuzu MLD	Isuzu MLD	Isuzu MLD

Product Name			Isuzu 700P Refrigerated Truck
Vehicle Parameters	Wheelbase (mm)		3360	3815	4175	4475	5200
	Vehicle Dimensions		6200X2400X3500	7000X2400X3500	7600X2400X3500	8050X2400X3500	8950X2400X3500
	Gross Vehicle Weight (Kg)		10550	10550	10550	10550	10550
	Curb Weight (Kg)		4390	4730	4830	5000	5700
	Cab Passenger Capacity		3	3	3	3	3
	Maximum Speed		110	110	110	110	110
	Tire Specifications		235/75R17.5 16PR	235/75R17.5 16PR	235/75R17.5 16PR	235/75R17.5 16PR	235/75R17.5 16PR
	Number of Tires		6+1	6+1	6+1	6+1	6+1
	Emission Standard		China V, China VI	China V, China VI	China V, China VI	China V, China VI	China V, China VI
Engine & Transmission	Transmission Model		Isuzu MLD	Isuzu MLD	Isuzu MLD	Isuzu MLD	Isuzu MLD
	Gear		6 Forward + 1 Reverse	6 Forward + 1 Reverse	6 Forward + 1 Reverse	6 Forward + 1 Reverse	6 Forward + 1 Reverse
	4HK1-TCG60	151kw/205hp	○	○	○	○	○
	4HK1-TCG61	139kw/189hp	○	○	○	○	○
Special Features	Box Material		FRP + Polyurethane Foam + FRP	FRP + Polyurethane Foam + FRP	FRP + Polyurethane Foam + FRP	FRP + Polyurethane Foam + FRP	FRP + Polyurethane Foam + FRP
	Box Volume		20.5 m³	25 m³	27 m³	29.5 m³	34 m³
	Box Dimensions		4200×2200×2200	5100×2200×2200	5600×2200×2200	6100×2200×2200	7000×2200×2200
	Refrigeration Unit Brand		Carrier/Thermo King/Domestic	Carrier/Thermo King/Domestic	Carrier/Thermo King/Domestic	Carrier/Thermo King/Domestic	Carrier/Thermo King/Domestic
	Box Temperature Range		'-18°C~+20°C	'-18°C~+20°C	'-18°C~+20°C	'-18°C~+20°C	'-18°C~+20°C
	Factory Standard		Integrated 150mm Skirting, 304 Stainless Steel Hardware, Side and Rear Protection, Rain Test, Reflective Markings	Integrated 150mm Skirting, 304 Stainless Steel Hardware, Side and Rear Protection, Rain Test, Reflective Markings	Integrated 150mm Skirting, 304 Stainless Steel Hardware, Side and Rear Protection, Rain Test, Reflective Markings	Integrated 150mm Skirting, 304 Stainless Steel Hardware, Side and Rear Protection, Rain Test, Reflective Markings	Integrated 150mm Skirting, 304 Stainless Steel Hardware, Side and Rear Protection, Rain Test, Reflective Markings
Note: Please contact us for detailed configuration and customization options.
