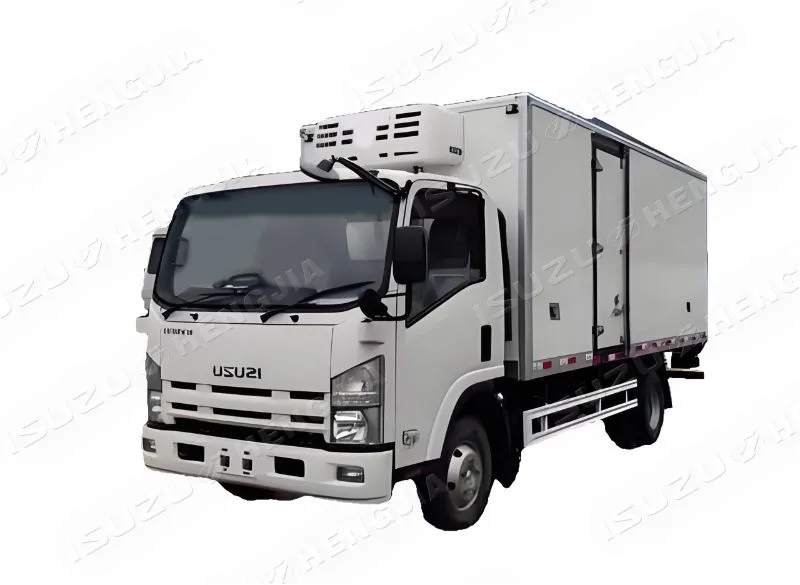

ISUZU NPR EV/EV700 Refrigerated Truck

Wheelbase	3815mm-5200mm
Drive Motor Model	TZ370XS-LKM0851
Generator Power	75KW
Load	6T
Power battery storage capacity	106.95kWh
Cruising range	300km
Refrigeration machine brand	Carrier/Thermo King/Domestic
Box volume	25m³-34m³

Inquire Now

Product Configuration

Box body	Using polyester wet board making process and fully enclosed polyurethane board bonding method, the thermal insulation performance reaches the national A-level standard.
Box board	The inner and outer wall panels are made of domestic high-quality nano-glass (non-light-absorbing, good heat insulation, strong hardness, and anti-oxidation), and the middle insulation material is imported polyurethane with no gap filling; the thickness is designed according to the customer's temperature requirements for the box;
Chassis	The bottom of the box is an aluminum alloy patterned plate or, with a 150mm overall bend skirt, which has better protection and sealing performance;
Accessories	The perimeter of the box is made of aluminum alloy edging, stainless steel corners, stainless steel door locks, 4 anti-collision rubbers, stainless steel door frames, stainless steel hinges, and energy-saving LED lights in the box.
Others	The thickness of the box can be selected, and the inner and outer wall panels can be selected from fiberglass, color steel, stainless steel, and aluminum alloy.
Process quality	The latest fully sealed insulation box, lightweight, high strength, high insulation, and long service life
Professional customization	Seven years of modification experience, free customization of modification plans according to vehicle needs
Vehicle advantages	Isuzu refrigerated truck dedicated chassis + high-quality refrigerated compartment + high-quality refrigeration system Perfect match. In the process of refrigerated truck development and design, the chassis, compartment, and refrigeration system are matched and designed according to the whole vehicle thinking, giving full play to the comprehensive performance of high-quality chassis, high-quality refrigerated compartment, and high-quality refrigeration system, not simply patchwork.

Vehicle Diagram

Rain test
Imported insulation board
Pressure plate machine
Process quality
Professional customization
Stainless steel lock

Vehicle Diagram

Refrigerated Truck

Model	Cab type	WB	OAL	0W	OH	FOH	ROH	L	W	H
EV700	Solo queue	3815	7000	2400	3500	1110	2075	5100	2200	2200
		4175	7600	2400	3500	1110	2315	5600	2200	2200
		4475	8050	2400	3500	1110	2465	6100	2200	2200
		5200	9050	2400	3500	1110	2740	7000	2200	2200
Note: The above dimensions are for reference only and can be customized as required

Isuzu 700P Refrigerated Truck
Wheelbase	3815	4175	4475	5200
Box volume	25 m³	27 m³	29.5 m³	34 m³
Cabinet size	5100×2200×2200	5600×2200×2200	6100×2200×2200	7000 ×2200×2200
Box space temperature	Carrier/Thermo King/Domestic	Carrier/Thermo King/Domestic	Carrier/Thermo King/Domestic	Carrier/Thermo King/Domestic
Refrigeration machine brand	'-18 degrees ~ +20 degrees	'-18 degrees ~ +20 degrees	'-18 degrees ~ +20 degrees	'-18 degrees ~ +20 degrees
Rated/peak power (kw/rpm)	75/120	75/120	75/120	75/120
Rated/peak torque (N.m/rpm)	350/850	350/850	350/850	350/850

Product name
Vehicle parameters	Vehicle wheelbase (mm)	3815	4175	4475	5200
	Vehicle size ()	7000X2400X3500	7600X2400X3500	8050X2400X3500	8950X2400X3500
	Total mass (Kg)	10550	10550	10550	10550
	Curb mass (Kg)	4730	4830	5000	5700
	Number of passengers in the cab	3	3	3	3
	Maximum speed	110	110	110	110
	Tire specifications	235/75R17.5 16PR	235/75R17.5 16PR	235/75R17.5 16PR	235/75R17.5 16PR
	Tire quantity	6+1	6+1	6+1	6+1
Drive System	Model	TZ370XS-LKM0851	TZ370XS-LKM0851	TZ370XS-LK M0851	TZ370XS-LKM0851
	Type	Permanent magnet synchronous motor	Permanent magnet synchronous motor	Permanent magnet synchronous motor	Permanent magnet synchronous motor
	Rated/peak power (kw/ rpm)	75/120	75/120	75/120	75/120
	Rated/peak torque (N.m/rpm)	350/850	350/850	350/850	350/850
Power battery	Type	Lithium iron phosphate	Lithium iron phosphate	Lithium iron phosphate	Lithium iron phosphate
	Energy Density Wh/kg	153.84	153.84	153.84	153.84
	Total power storage (kWh )	106.95Ningde	106.95Ningde	106.95Ningde	106.95Ningde
recharge mileage (km)		300 Full load isokinetic method	300 Full load isokinetic method	300 Full load isokinetic method	300 Full load isokinetic method
Special performance	Box material	Fiberglass + polyurethane foam + fiberglass	Fiberglass + polyurethane foam + fiberglass	Fiberglass + polyurethane foam + Fiberglass	Fiberglass+Polyurethane Foam+Fiberglass
	Box Volume	25 m³	27 m³	29.5 m³	34 m³
	Box size	5100 ×2200×2200	5600×2200×2200	6100×2200×2200	7000×2200×2200
	Refrigeration machine brand	Carrier/Thermo King/Domestic	Carrier/Thermo King/Domestic	Carrier/Thermo King/Domestic	Carrier/Thermo King/Domestic
	Box space temperature	'-18 degrees ~ +20 degrees	'-18 degrees ~ +20 degrees	'-18 degrees ~ +20 degrees	'-18 degrees ~ +20 degrees
	Factory standard	The bottom plate is bent as a whole, with a 150mm skirt, 304 stainless steel hardware, left and right side protection, rear protection, box rain test, reflective label	The bottom plate is bent as a whole, with a 150mm skirt, 304 stainless steel hardware, left and right side protection, rear protection, box rain test, reflective label	Bottom plate overall bending 150mm skirt, 304 stainless steel hardware, left and right side protection, rear protection, box rain test, reflective label	Bottom plate overall bending 150mm skirt, 304 stainless steel hardware, left and right side protection, rear protection, box rain test, reflective stickers
Remarks: Please contact us for detailed configuration confirmation, customization is supported
