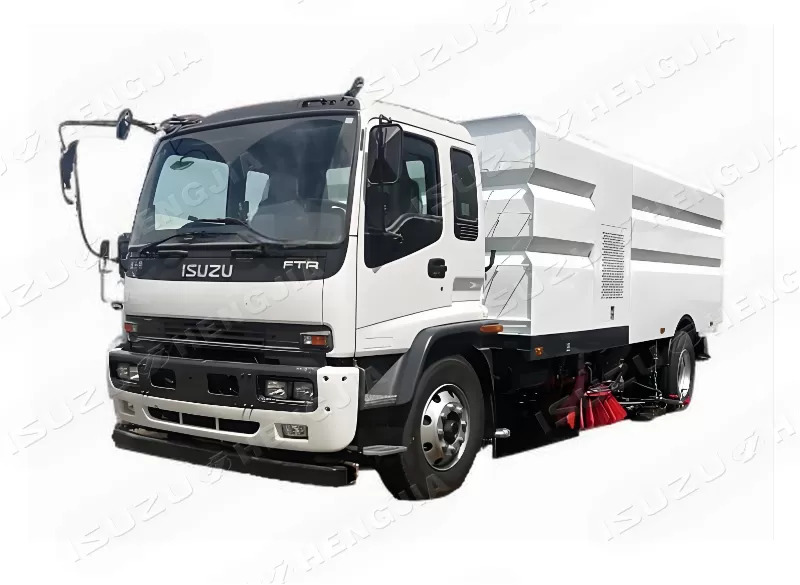

ISUZU F/FTR Road Sweeper Truck

wheelbase	4500mm-4700mm
drive	4X2/4X4
Engine model	4HK1
engine power	205HP-224HP
load	10T-11T
Box volume	12m³-14m³
Cabinet material	Q355

Inquire Now Next Product

Product Configuration

Components	The dedicated part consists of various components such as the trunk, auxiliary engine, fan, electromagnetic control valve, garbage bin, water bin, etc., which are connected through hydraulic and electronic control systems.
Main Components	Adopting high-power wear-resistant maintenance free centrifugal fan, it has no noise, high efficiency, large air volume, and long service life. High quality electronic control valves are adopted, with high reliability and long service life.
Duration	The cabin body is made of high-quality carbon steel sheet and has undergone anodizing treatment on the surface, making it sturdy and durable. We use wear-resistant and maintenance free centrifugal fans and imported solenoid valves, as well as well-known domestic brand disc scanning cycloidal motors, which have a long service life, stability, reliability, and low failure rate.
Structure Design	In terms of structure, the appearance is beautiful, with high positioned side skirts, curved transitions, and overall coordination and symmetry. Achieve low fuel consumption, low noise, and streamlined exterior design. The garbage bin adopts a double-layer inner stainless steel structure with a capacity of 7-8m. It is equipped with a filter screen plate inside, which can effectively prevent light floating objects such as leaves and plastic bags from blocking the air outlet and discharging dust
Vehicle Advantages	The Isuzu chassis and high-quality cabin are perfectly matched. In the development and design process, the chassis and trunk are matched and designed according to the whole vehicle thinking, fully utilizing their comprehensive performance, rather than simply piecing them together. The whole vehicle has a long service life, stability, reliability, and low failure rate.

Vehicle Diagram

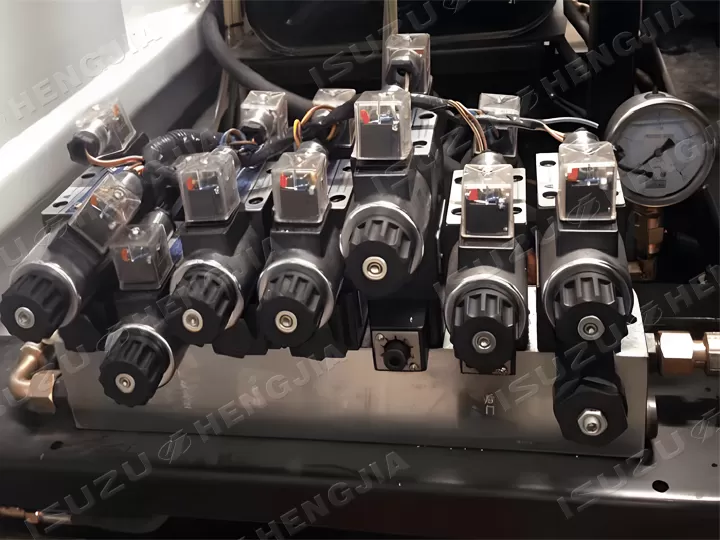

solenoid valve

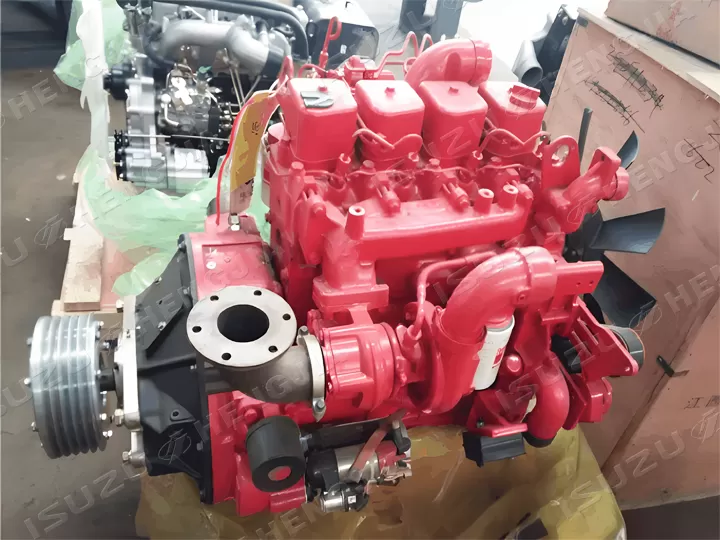

auxilliary enine

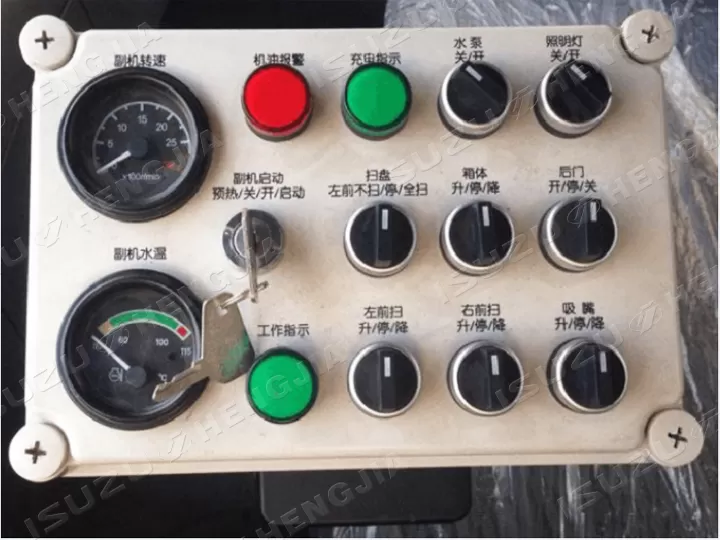

control panel

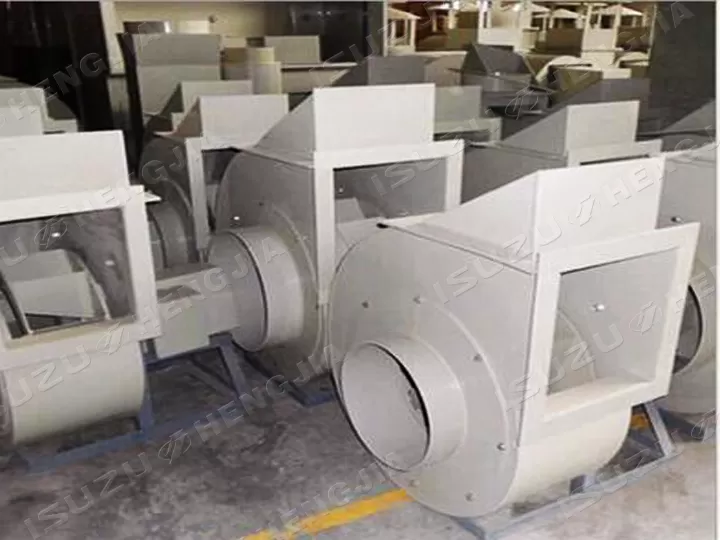

centrifuge
sweeping device

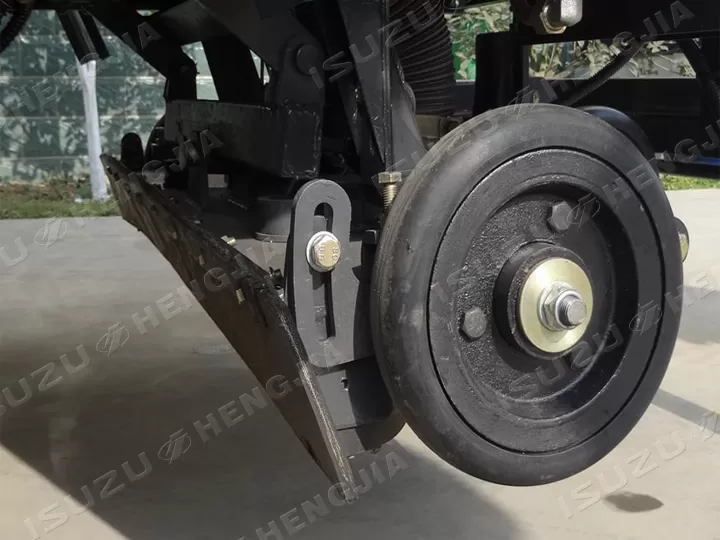

suction device

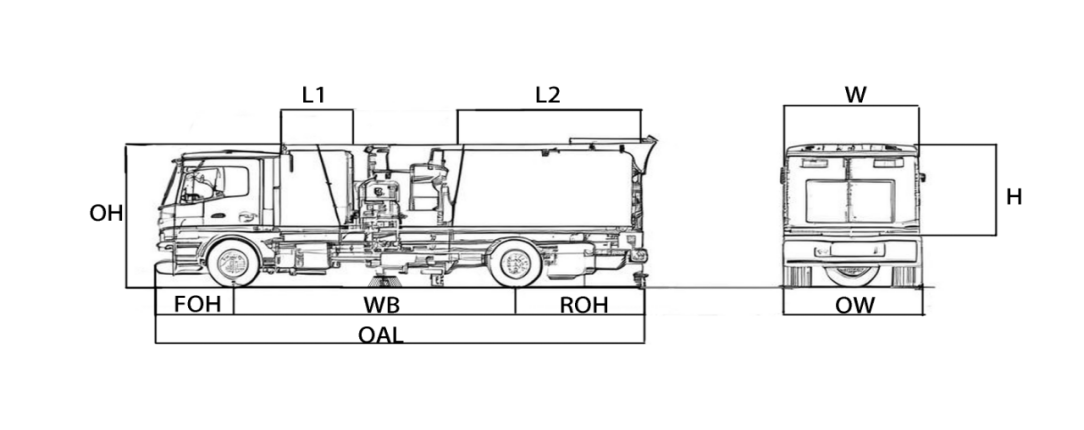

Vehicle Diagram

MODEL	CABIN TYPE	WB	OAL	OW	OH	FOH	ROH	L1	L2	W	H
FTR	single	4500	8350	2550	3000	1962	1855	1386	4175	2450	2300
FTR	single	4700	8900	2550	3000	1962	1855	1477	4450	2450	2300
Above customized size refer to the factory details.

PRODUCT NAME			ISUZU FTR sweeping truck
whole parameter	Vehicle wheelbase (mm)		4500	4700
	Vehicle size ()		8350x2550x3000	8900x2550x3000
	Total weight (Kg)		18000	18000
	Curb weight (Kg)		8550	8750
	Number of passengers in the cab		3	3
	Maximum speed		90	90
	Tire specifications		11.00R22.5 16PR	11.00R22.5 16PR
	Number of tires		6+1	6+1
	Emission standards		EUROⅤ、EUROⅥ	EUROⅤ、EUROⅥ
ENGINE+TRANSMISSION	Transmission model		Isuzu MLD	Isuzu MLD
	Gear		6Forward + 1 Reverse	6Forward + 1 Reverse
	4HK1-TC50	151kw/205hp	○	○
	4HK1-TCG60	151kw/205hp	○	○
	4HK1-TCG62	164kw/224hp	○	○
special functions	Cabinet material		carbon+stainess steel	carbon+stainess steel
	Garbage bin capacity		8 m³	9 m³
	Clear water tank capacity		4 m³	5 m³
	Cleaning width (m)		3.2 m	3.2 m
	Cleaning speed (km/h)		3-15km/h	3-20km/h
	Maximum cleaning capacity		52500 mm/h	52500mm/h
	Auxiliary engine		JMC/CUMMINS	JMC/CUMMINS
	Factory standards		Taiwan solenoid valve group; Maintenance free self separating clutch; Maintenance free fan; Stainless steel water tank; Stainless steel garbage bin; Tail LED arrow light; Manual pump emergency system;	Taiwan solenoid valve group; Maintenance free self separating clutch; Maintenance free fan; Stainless steel water tank; Stainless steel garbage bin; Tail LED arrow light; Manual pump emergency system;
Remanrk：the detail spcifications refer to factory information, and customization service available
