Road Sweeper Truck
| wheelbase | 3360mm-3815mm |
| drive | 4X2/4X4 |
| Engine model | 4KH1 |
| engine power | 115HP-140HP |
| load | 4.5T-7.3T |
| Box volume | 5.5m³-7m³ |
| Cabinet material | carbon+stainess steel |
Product Configuration
| component | The dedicated part consists of a liquid tank, power output and transmission system, pipeline system, electrical system, etc | |||
| Tank body | The carriage is made of high-quality steel and varies in size according to the volume of the box. There are 4mm, 5mm, and 6mm tank thicknesses to choose from, and multiple anti wave plates are installed inside; Materials available include stainless steel and aluminum alloy. | |||
| Main components | The standard configuration of the sprinkler pump is a domestic brand with stable operation and high efficiency. Domestic platform anti-aircraft guns can be adjusted into cylindrical and foggy shapes, with a range of up to 30 meters,; Domestic power take-off operates smoothly with low failure rate The front and rear side nozzles are widely used for road surface cleaning on highways. | |||
| durable | After the tank is formed by cutting, slicing, welding, bending and other processes, it is continuously polished to ensure that the welding parts are flat and beautiful. After the tank truck is formed, it must undergo tank inspection to ensure that the tank is durable and long-lasting | |||
| spray | Preferred domestic premium paint with strong adhesion, wear resistance, acid and alkali resistance, and good heat resistance. | |||
| Professional customization | Seven years of modification experience, can customize modification plans for free according to car needs | |||
| Vehicle advantages | The Isuzu chassis and high-quality cabin are perfectly matched. In the development and design process, the chassis and trunk are matched and designed according to the whole vehicle thinking, fully utilizing their comprehensive performance, rather than simply piecing them together. | |||
Vehicle Diagram

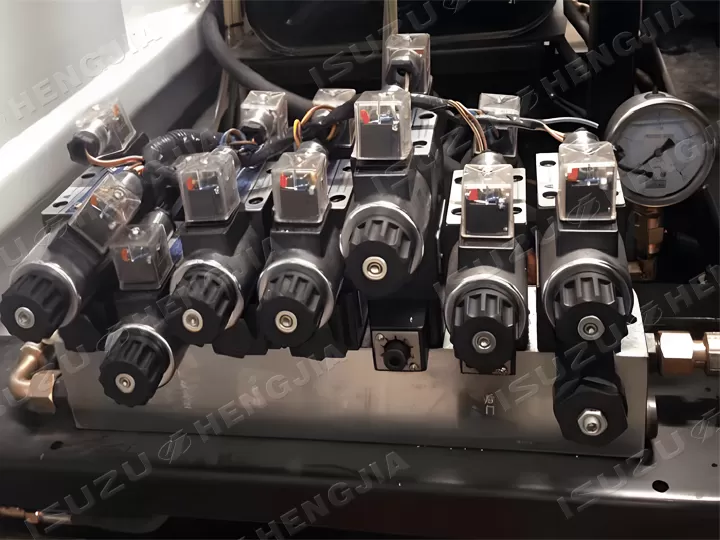

solenoid valve

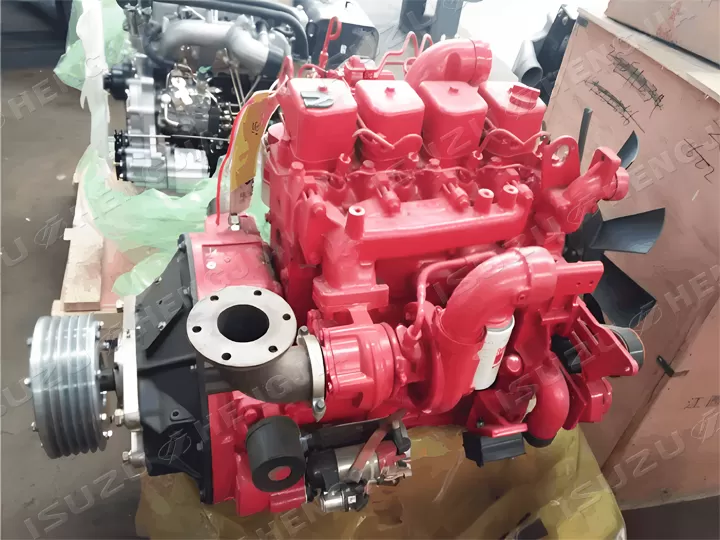

auxilliary enine

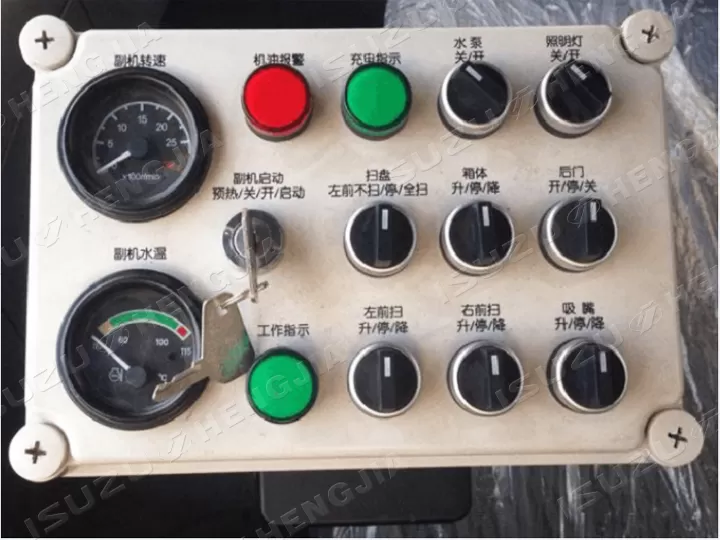

control panel

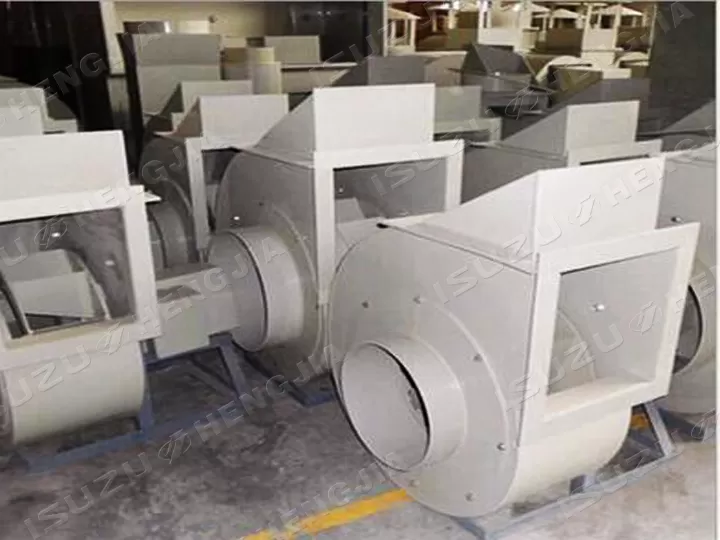

centrifuge

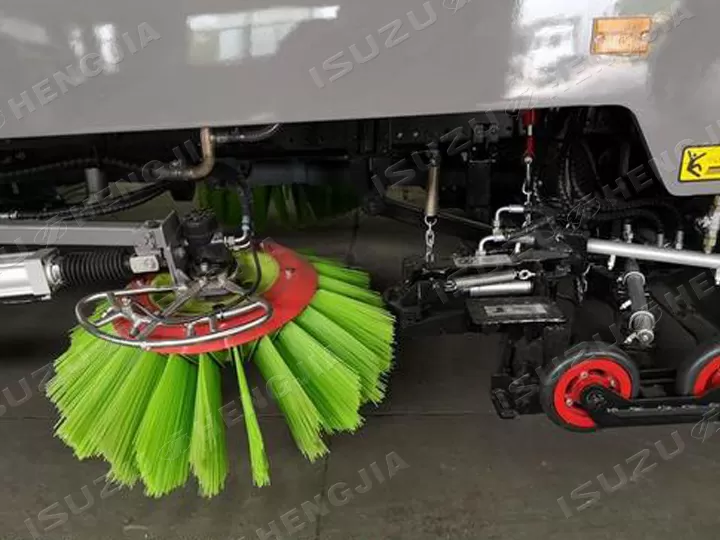

sweeping device

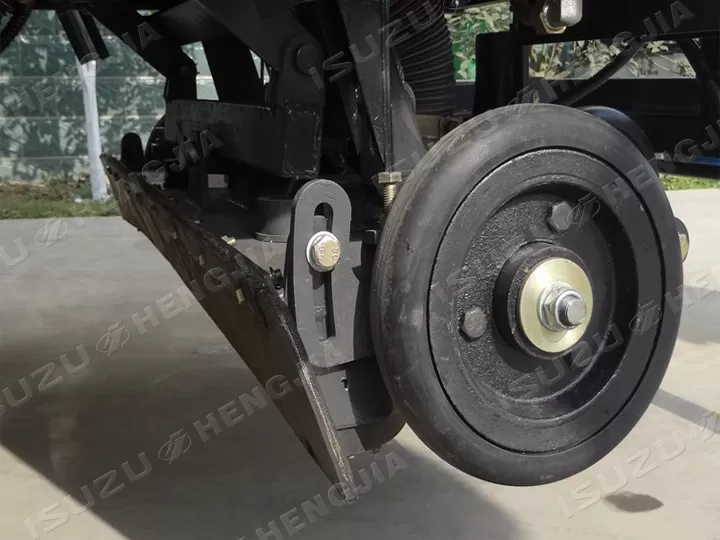

suction device

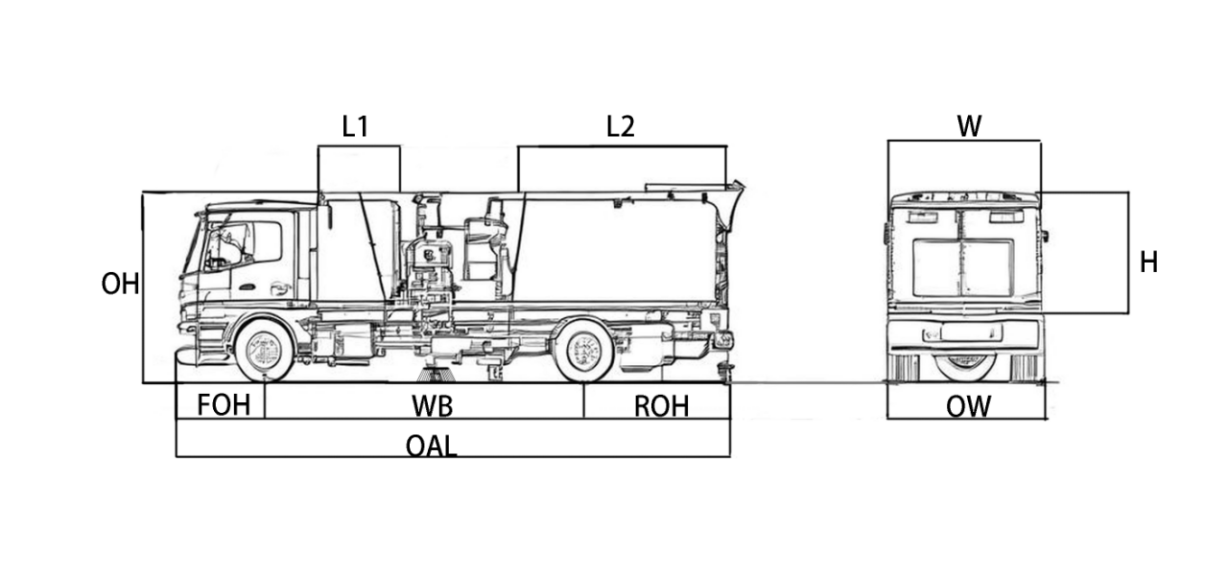

Vehicle Diagram
| MODEL | CABIN TYPE | WB | OAL | OW | OH | FOH | ROH | L1 | L2 | W | H | ||
| 600P | single | 3360 | 6190 | 1990 | 2590 | 1015 | 1525 | 1027 | 3095 | 2450 | 2300 | ||
| single | 3815 | 6700 | 1990 | 2590 | 1015 | 1835 | 1112 | 3350 | 2450 | 2300 | |||
| PRODUCT NAME | ISUZU 600P sweeping truck | |||
| whole parameter | Vehicle wheelbase (mm) | 3360 | 3815 | |
| Vehicle size () | 6190×1990×2590 | 6700x1990×2590 | ||
| Total weight (Kg) | 4495/7300 | 7300 | ||
| Curb weight (Kg) | 5100 | 5700 | ||
| Number of passengers in the cab | 2 | 2 | ||
| Maximum speed | 98 | 98 | ||
| Tire specifications | 7.00R15 10PR | 7.00R15 10PR | ||
| Number of tires | 6+1 | 6+1 | ||
| Emission standards | EUROⅤ、EUROⅥ | EUROⅤ、EUROⅥ | ||
| ENGINE+TRANSMISSION | Transmission model | Isuzu MSB | Isuzu MSB | |
| Gear | 5Forward + 1 Reverse 5个前进档，1个后退档 | 5Forward + 1 Reverse 5个前进档，1个后退档 | ||
| 4KH1CN5HS | 96kw/130hp | ○ | ○ | |
| 4KH1CN5MD | 83kw/115hp | \ | ○ | |
| 4KH1CN5HD | 95kw/130hp | ○ | \ | |
| 4KH1CN6LB | 88kw/120hp | ○ | ○ | |
| 4KH1N6MD | 101kW/140hp | ○ | ○ | |
| special functions | Cabinet material | carbon+stainess steel | carbon+stainess steel | |
| Garbage bin capacity | 4 m³ | 5.5 m³ | ||
| Clear water tank capacity | 1.5 m³ | 1.5 m³ | ||
| Cleaning width (m) | 2.8 m | 2.8 m | ||
| Cleaning speed (km/h) | 3-20km/h | 3-20km/h | ||
| Maximum cleaning capacity | 40000㎡/h | 40000㎡/h | ||
| Auxiliary engine | JMC/CUMMINS | JMC/CUMMINS | ||
| Factory standards | Taiwan solenoid valve group; Maintenance free self separating clutch; Maintenance free fan; Stainless steel water tank; Stainless steel garbage bin; Tail LED arrow light; Manual pump emergency system; | Taiwan solenoid valve group; Maintenance free self separating clutch; Maintenance free fan; Stainless steel water tank; Stainless steel garbage bin; Tail LED arrow light; Manual pump emergency system; | ||
| Remanrk：the detail spcifications refer to factory information, and customization service available | ||||
