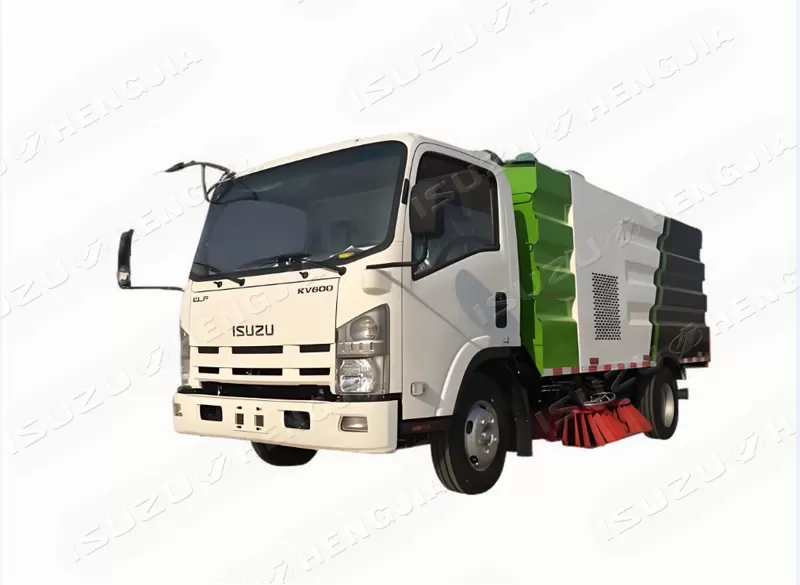

ISUZU NKR/KV600 Road Sweeper Truck

wheelbase	3360mm-3815mm
drive	4X2/4X4
Engine model	4KH1
engine power	120HP-146HP
load	2.5T-3T
Box volume	5.5m³-7m³
Cabinet material	carbon+stainess steel

Inquire Now

Product Configuration

Components	The dedicated part consists of various components such as the trunk, auxiliary engine, fan, electromagnetic control valve, garbage bin, water bin, etc., which are connected through hydraulic and electronic control systems.
Main Components	Adopting high-power wear-resistant maintenance free centrifugal fan, it has no noise, high efficiency, large air volume, and long service life. High quality electronic control valves are adopted, with high reliability and long service life.
Duration	The cabin body is made of high-quality carbon steel sheet and has undergone anodizing treatment on the surface, making it sturdy and durable. We use wear-resistant and maintenance free centrifugal fans and imported solenoid valves, as well as well-known domestic brand disc scanning cycloidal motors, which have a long service life, stability, reliability, and low failure rate.
Structure Design	In terms of structure, the appearance is beautiful, with high positioned side skirts, curved transitions, and overall coordination and symmetry. Achieve low fuel consumption, low noise, and streamlined exterior design. The garbage bin adopts a double-layer inner stainless steel structure with a capacity of 7-8m. It is equipped with a filter screen plate inside, which can effectively prevent light floating objects such as leaves and plastic bags from blocking the air outlet and discharging dust
Vehicle Advantages	The Isuzu chassis and high-quality cabin are perfectly matched. In the development and design process, the chassis and trunk are matched and designed according to the whole vehicle thinking, fully utilizing their comprehensive performance, rather than simply piecing them together. The whole vehicle has a long service life, stability, reliability, and low failure rate.

Vehicle Diagram

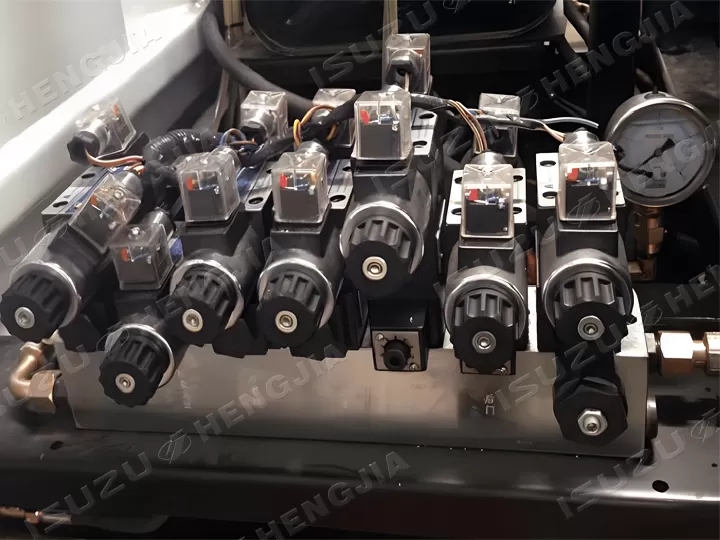

solenoid valve

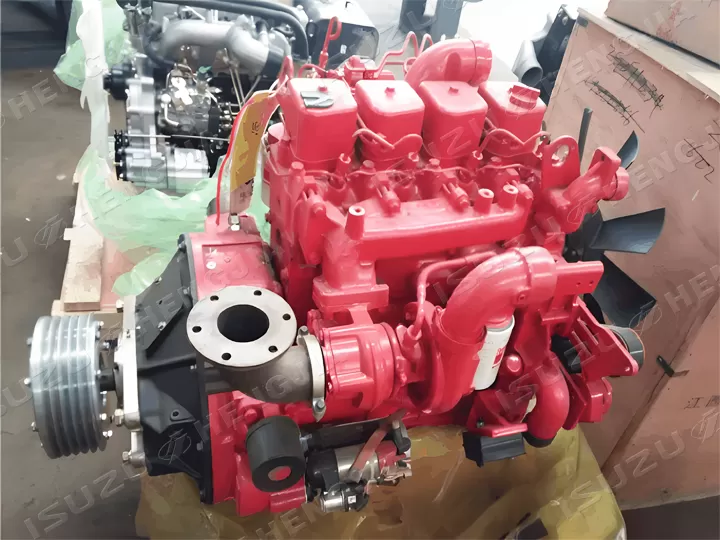

auxilliary enine

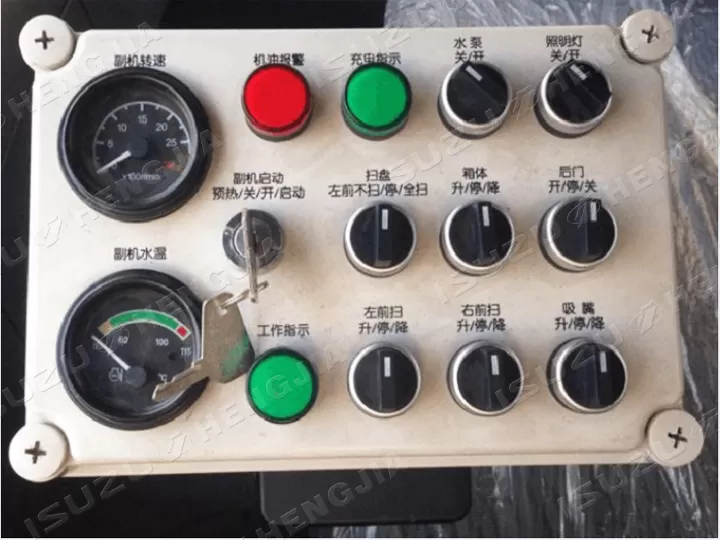

control panel
centrifuge
sweeping device

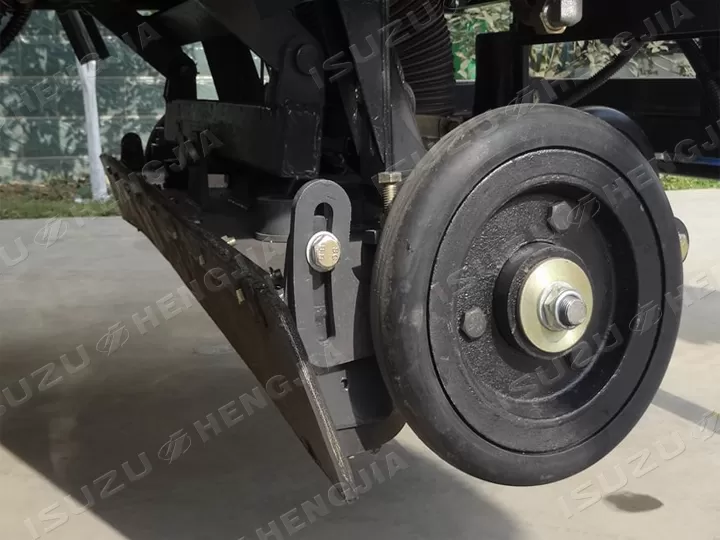

suction device

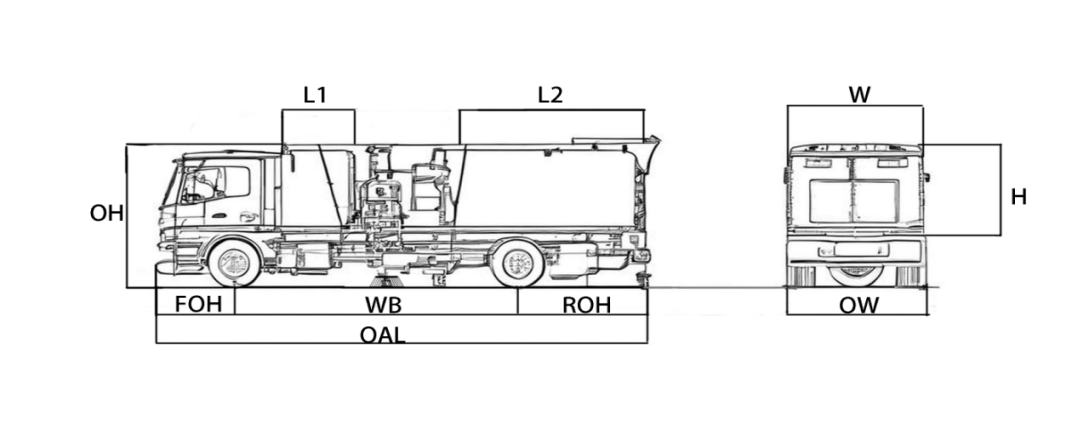

Vehicle Diagram

MODEL	CABIN TYPE	WB	OAL	OW	OH	FOH	ROH	L1	L2	W	H
KV100	single	3360	6200	2200	2700	1690	1655	1030	3100	2050	1900
KV100	single	3815	7000	2200	2700	1690	1655	1162	3500	2050	1900
Above customized size refer to the factory details.

PRODUCT NAME			ISUZU KV600 sweeping truck
whole parameter	Vehicle wheelbase (mm)		3360	3815
	Vehicle size ()		6200×2200×2700	7000x2200×2700
	Total weight (Kg)		8280	8280
	Curb weight (Kg)		5100	5700
	Number of passengers in the cab		2	2
	Maximum speed		98	98
	Tire specifications		7.00R16LT 8PR	7.50R16LT 14PR
	Number of tires		6+1	6+1
	Emission standards		EUROⅤ、EUROⅥ	EUROⅤ、EUROⅥ
ENGINE+TRANSMISSION	Transmission model		Isuzu MSB	Isuzu MSB
	Gear		5Forward + 1 Reverse	5Forward + 1 Reverse
	4KH1CN5HS	96kw/130hp	○	\
	4KH1CN5HD	95kw/130hp	○	\
	4KH1N6HD	108kW/146hp	\	○
	4KH1CN6HB	97kw/132hp	\	○
	4KH1CN6LB	88kw/120hp	\	○
	4KH1N6MD	101kW/140hp	\	○
special functions	Cabinet material		carbon+stainess steel	carbon+stainess steel
	Garbage bin capacity		4 m³	5.5 m³
	Clear water tank capacity		1.5 m³	1.5 m³
	Cleaning width (m)		3 m	3 m
	Cleaning speed (km/h)		3-15km/h	3-15km/h
	Maximum cleaning capacity		50000 m³/h	50000 m³/h
	Auxiliary engine		JMC/CUMMINS	JMC/CUMMINS
	Factory standards		Taiwan solenoid valve group; Maintenance free self separating clutch; Maintenance free fan; Stainless steel water tank; Stainless steel garbage bin; Tail LED arrow light; Manual pump emergency system;	Taiwan solenoid valve group; Maintenance free self separating clutch; Maintenance free fan; Stainless steel water tank; Stainless steel garbage bin; Tail LED arrow light; Manual pump emergency system;
Remanrk：the detail spcifications refer to factory information, and customization service available
