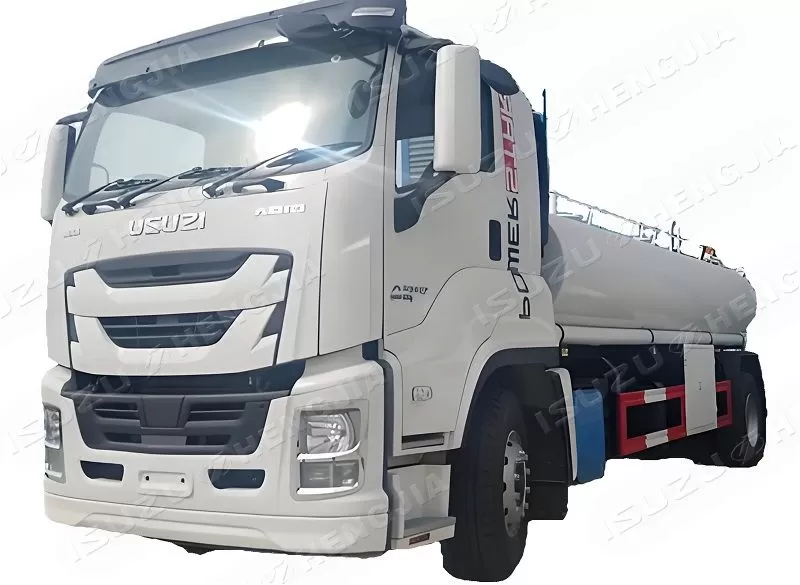

Isuzu 4X2 VC66 Sprinkler Truck

Vehicle type	ISUZU FVR sprinkler
wheelbase	4500mm-5500mm
Driving form	4X2/4X4
Engine type	6HK1
Engine horsepower	241HP-300HP
Water cannon range	≥28m
Tank volume	10m³-12m³
Box material	Q235/Stainless steel

Inquire Now Next Product

Product Configuration

Components	The special part consists of liquid tank, power output and transmission system, pipeline system, electrical system, etc.
Tank	The compartment is made of high quality steel, according to the size of the box, there are 4㎜, 5㎜ and 6㎜ tank thickness available, and there are many wave-proof plates inside; the material is stainless steel and aluminum alloy available.
Main components	Sprinkler pump standard for the domestic brand has a smooth operation and high efficiency. Domestic platform high gun can be adjusted into column and fog, range up to 30 meters,; domestic extractor running smoothly low failure rate;, front and rear side nozzles are widely used for highway pavement cleaning.
Durable	Tank body using shearing, cutting, welding, bending and other processes after molding, constantly grinding, to ensure that the welding parts are smooth and beautiful, tank trucks are molded after the tank flaw detection inspection, to ensure that the tank body is durable
Painting	Preferred domestic superior paint, strong adhesion, abrasion resistance, acid and alkali resistance, good heat resistance.
Professional customization	Seven years of modification experience, according to the needs of the car to customize the modification program for free!
Advantages of the whole vehicle	Isuzu chassis + high-quality compartments Perfect match. In the process of development and design, the chassis and compartments are matched according to the thinking of the whole vehicle, giving full play to its comprehensive performance, rather than a simple patchwork.

Vehicle Diagram

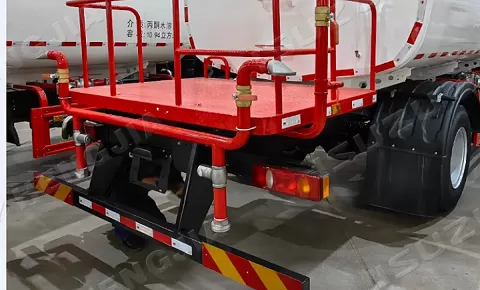

side spraying nozzle

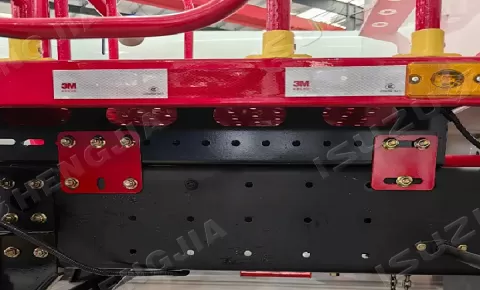

chassis auxilliary girder connection

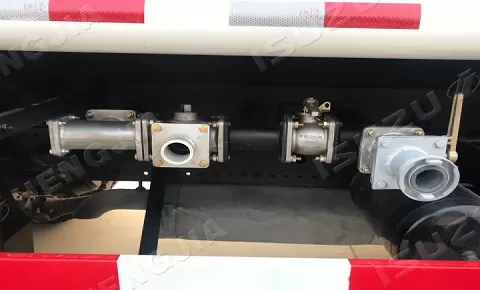

water inlet net

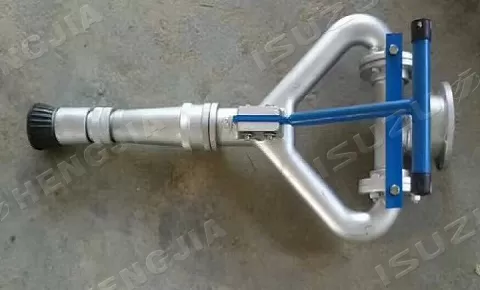

platform spraying gun

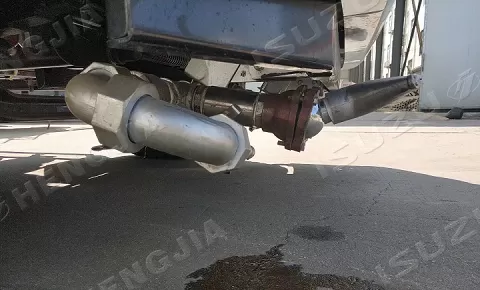

front spaying nozzle

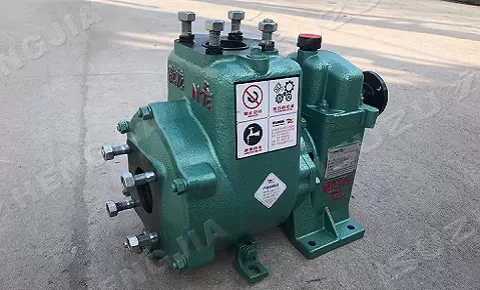

water pump

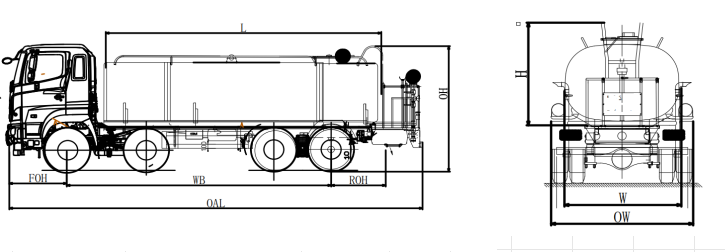

Vehicle Diagram :

Model	Cab Type	WB	OAL	OW	OH	FOH	ROH	L	W	H
4X2 VC66	one row and a half	3900	7650	2550	3100	1370	1620	4500	2200	2100
4X2 VC66	one row and a half	4600	8300	2550	3100	1370	1620	5600	2200	2100
The above dimensions are for reference and can be customized upon request

Product Name			Isuzu 4X2 VC66 Sprinkler Truck
Vehicle parameters	Wheelbase(㎜)		3900	4600
	Overall Dimension(㎜)		7650X2550X3100	8300X2550X3100
	GVW(Kg)		22000	18000
	Curb Weight(Kg)		11200	11900
	Passenger No.		3	3
	Maximum speed		90	90
	Tire specification		385/65R22.5 20PR/ 315/80R22.5 20PR	385/65R22.5 20PR/ 315/80R22.5 20PR
	Tire No.		6+1	6+1
	Emission standard		Euro 6	Euro 6
Generator parameters	Transmission Model		Fast 12JSD180TA	Fast 12JSD180TA
	Gear		12Forward +2 Reverse	12Forward +2 Reverse
	6UZ1-TCG61	279kw/380hp	○	○
Specialized performance	Case Material	Q235	○	○
		stainless steel	○	○
	Water tank volume		8m³	10 m³
	Water Cannon Range		≥28 m	≥28 m
	Sprinkler width		≥14 m	≥14 m
	Sprinkling width		≥28 m	≥28 m
	Factory standard		The truck is equipped with a high-power self-priming water pump tank with a working platform at the end, the platform is installed on the water cannon, the water cannon can be rotated 360 °, can also be adjusted to a variety of rain.	The truck is equipped with a high-power self-priming water pump tank with a working platform at the end, the platform is installed on the water cannon, the water cannon can be rotated 360 °, can also be adjusted to a variety of rain.
Remarks: please contact us to confirm the detailed configuration, support customization
