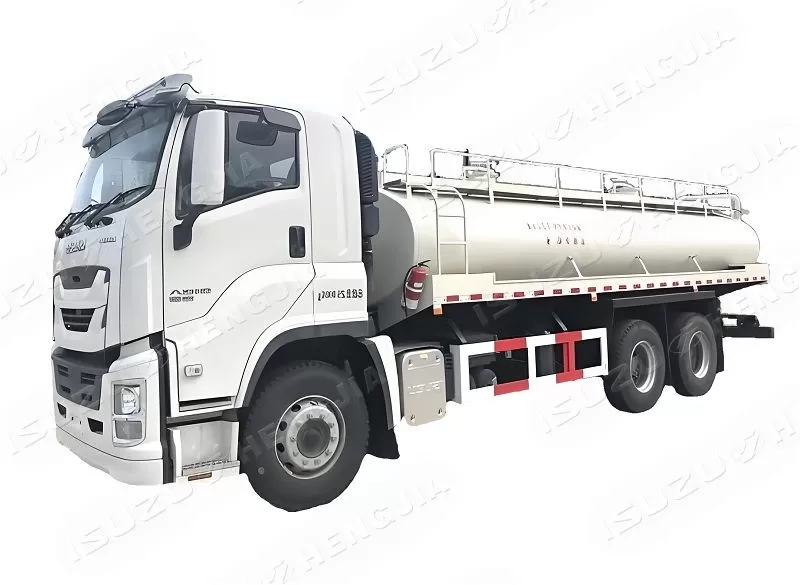

ISUZU 6X4 VC66 Sprinkler Truck

Wheelbase	4600+1370mm-5100+1370mm
Drive	6X4/6X6
Engine Model	6UZ1/6WG1
Engine Horsepower	350HP-520HP
Water Cannon Range	≥28m
Tank volume	20m³-22m³
Tank material	Q235/stainless steel

Inquire Now Next Product

Product Configuration

Product Configuration:
Components	The special part consists of liquid tank, power output and transmission system, pipeline system, electrical system, etc.
Tank	The compartment is made of high quality steel, according to the size of the box, there are 4㎜, 5㎜ and 6㎜ tank thickness available, and there are many wave-proof plates inside; the material is stainless steel and aluminum alloy available.
Main components	Sprinkler pump standard for the domestic brand has a smooth operation and high efficiency. Domestic platform high gun can be adjusted into column and fog, range up to 30 meters,; domestic extractor running smoothly low failure rate;, front and rear side nozzles are widely used for highway pavement cleaning.
Durable	Tank body using shearing, cutting, welding, bending and other processes after molding, constantly grinding, to ensure that the welding parts are smooth and beautiful, tank trucks are molded after the tank flaw detection inspection, to ensure that the tank body is durable
Painting	Preferred domestic superior paint, strong adhesion, abrasion resistance, acid and alkali resistance, good heat resistance.
Professional customization	Seven years of modification experience, according to the needs of the car to customize the modification program for free!
Advantages of the whole vehicle	Isuzu chassis + high-quality compartments Perfect match. In the process of development and design, the chassis and compartments are matched according to the thinking of the whole vehicle, giving full play to its comprehensive performance, rather than a simple patchwork.

Vehicle Diagram

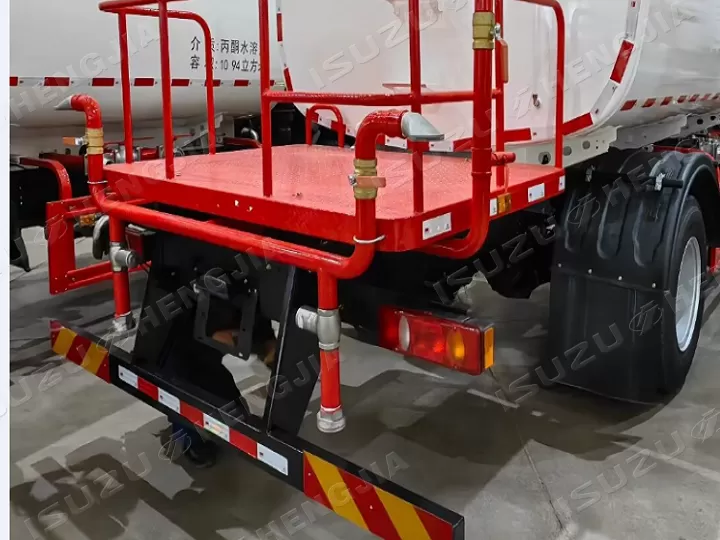

side spraying nozzle

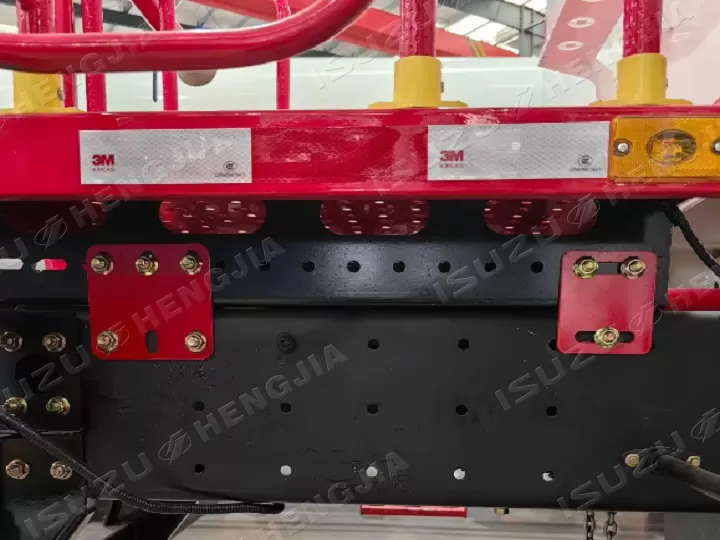

chassis auxilliary girder connection

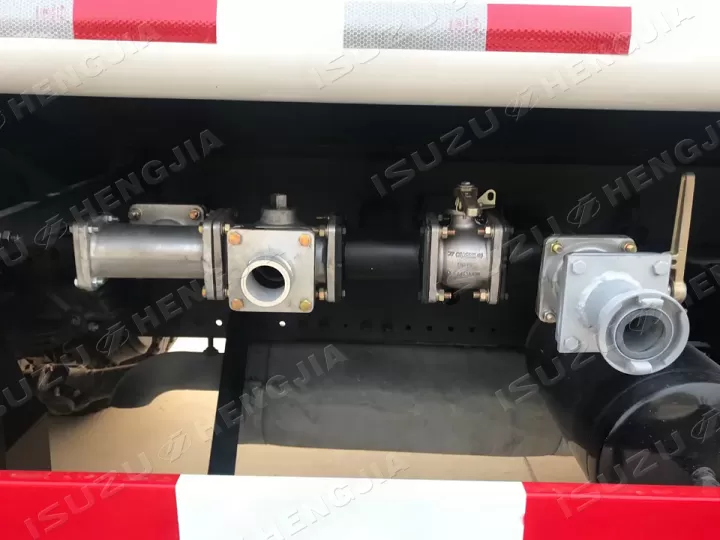

water inlet net

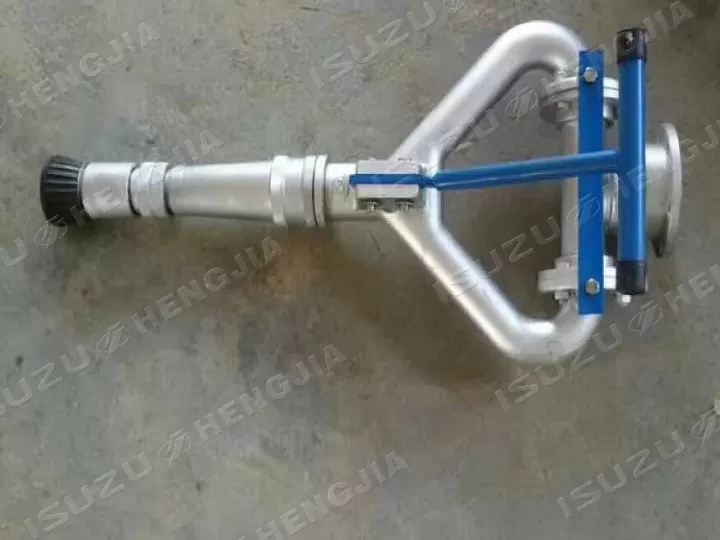

platform spraying gun

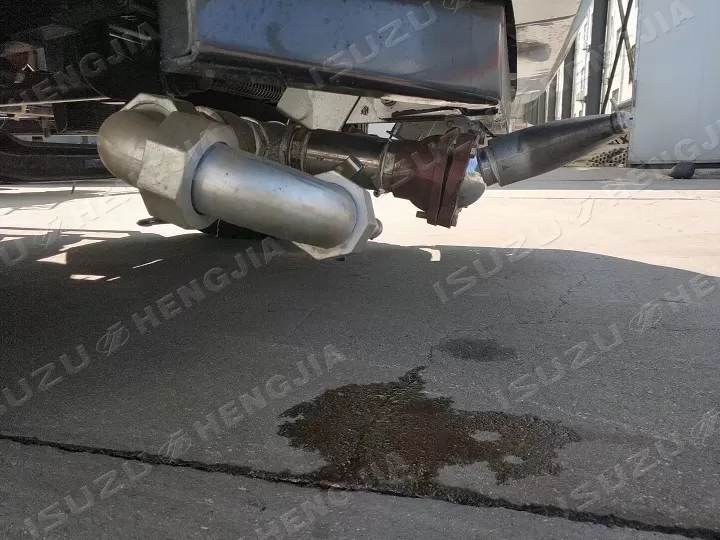

front spaying nozzle

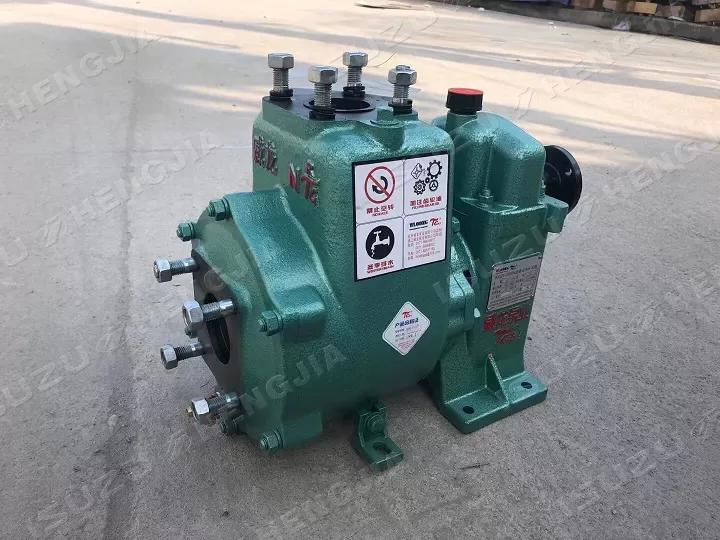

water pump

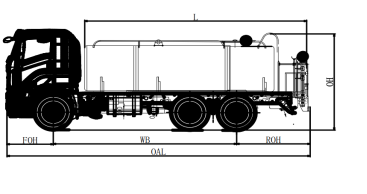

Vehicle Diagram

Model	Cab Type	WB	OAL	OW	OH	FOH	ROH	L	W	H
6X4VC66	one row and a half	4600+1370	10500	2550	3100	1370	3195	8000	2200	2100
6X4VC66	one row and a half	5100+1370	11000	2550	3100	1370	3160	8500	2200	2100
The above dimensions are for reference and can be customized upon request

Product Name			ISUZU 6X4 VC66 Sprinkler Truck
Vehicle parameters	Wheelbase(㎜)		4600+1370	5100+1370
	Overall Dimension(㎜)		10500X2540X4000	11000X2540X4000
	GVW(Kg)		35000	35000
	Curb Weight(Kg)		11500	12050
	Passenger No.		3	3
	Maximum speed		90	90
	Tire specification		385/65R22.5 20PR/ 315/80R22.5 20PR	385/65R22.5 20PR/ 315/80R22.5 20PR
	Tire No.		10+1	10+1
	Emission standard		Euro 6	Euro 6
Generator parameters	Transmission Model		ZF 8S2330TD	ZF 8S2330TD
	Gear		8Forward +2 Reverse 8 forward gears, 2 reverse gears	8Forward +2 Reverse 8 forward gears, 2 reverse gears
	6WG1-TCG60	309kw/420hp	/	○
	6WG1-TCG61	338kw/460hp	○	○
	6WG1-TCG62	381kw/520hp	○	/
	6UZ1-TCG61	278kw/380hp	○	/
Specialized performance	Case Material	Q235	○	○
	Case Material	stainless steel	○	○
	Water tank volume		20m³	22 m³
	Water Cannon Range		≥28 m	≥30 m
	Sprinkler width		≥14 m	≥14 m
	Sprinkling width		≥28 m	≥28 m
	Factory standard		The truck is equipped with a high-power self-priming water pump tank with a working platform at the end, the platform is installed on the water cannon, the water cannon can be rotated 360 °, can also be adjusted to a variety of rain.	The truck is equipped with a high-power self-priming water pump tank with a working platform at the end, the platform is installed on the water cannon, the water cannon can be rotated 360 °, can also be adjusted to a variety of rain.
Remarks: please contact us to confirm the detailed configuration, support customization
