Sprinkler Truck
| Wheelbase | 1850+4600+1370mm |
| Drive | 8X4 |
| Engine Model | 6UZ1/6WG1 |
| Engine Horsepower | 350HP-520HP |
| Water Cannon Range | ≥28m |
| Tank volume | 30m³ |
| Tank material | Q235/stainless steel |
Product Configuration
| Product Configuration: | ||||
| Components | The special part consists of liquid tank, power output and transmission system, pipeline system, electrical system, etc. | |||
| Tank | The compartment is made of high quality steel, according to the size of the box, there are 4㎜, 5㎜ and 6㎜ tank thickness available, and there are many wave-proof plates inside; the material is stainless steel and aluminum alloy available. | |||
| Main components | Sprinkler pump standard for the domestic brand has a smooth operation and high efficiency. Domestic platform high gun can be adjusted into column and fog, range up to 30 meters,; domestic extractor running smoothly low failure rate;, front and rear side nozzles are widely used for highway pavement cleaning. | |||
| Durable | Tank body using shearing, cutting, welding, bending and other processes after molding, constantly grinding, to ensure that the welding parts are smooth and beautiful, tank trucks are molded after the tank flaw detection inspection, to ensure that the tank body is durable | |||
| Painting | Preferred domestic superior paint, strong adhesion, abrasion resistance, acid and alkali resistance, good heat resistance. | |||
| Professional customization | Seven years of modification experience, according to the needs of the car to customize the modification program for free! | |||
| Advantages of the whole vehicle | Isuzu chassis + high-quality compartments Perfect match. In the process of development and design, the chassis and compartments are matched according to the thinking of the whole vehicle, giving full play to its comprehensive performance, rather than a simple patchwork. | |||
Vehicle Diagram

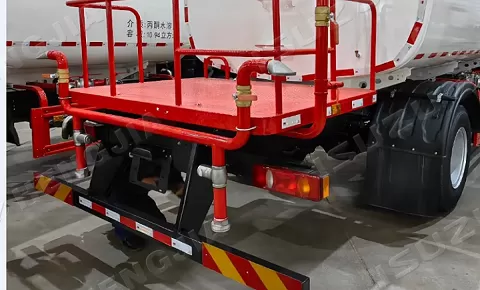

side spraying nozzle

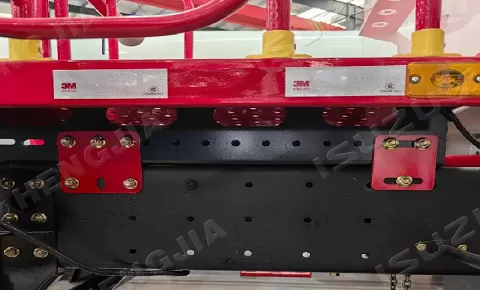

chassis auxilliary girder connection

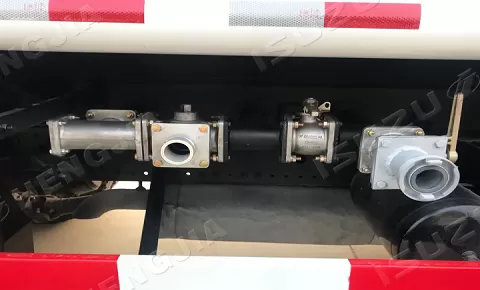

water inlet net

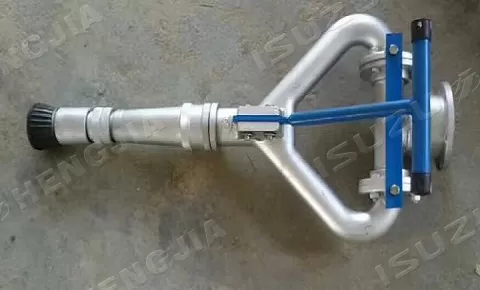

spraying gun

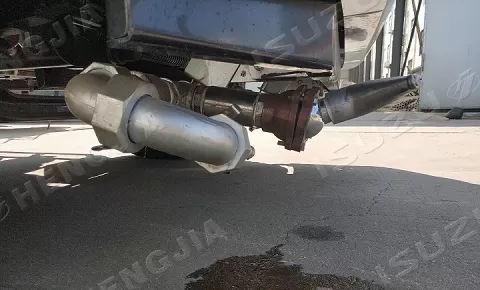

front spaying nozzle

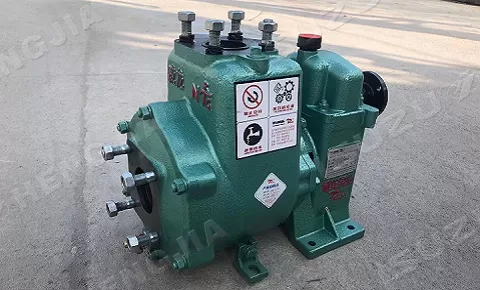

water pump

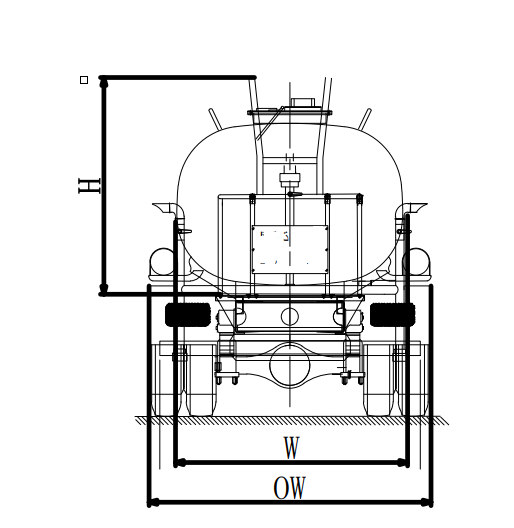

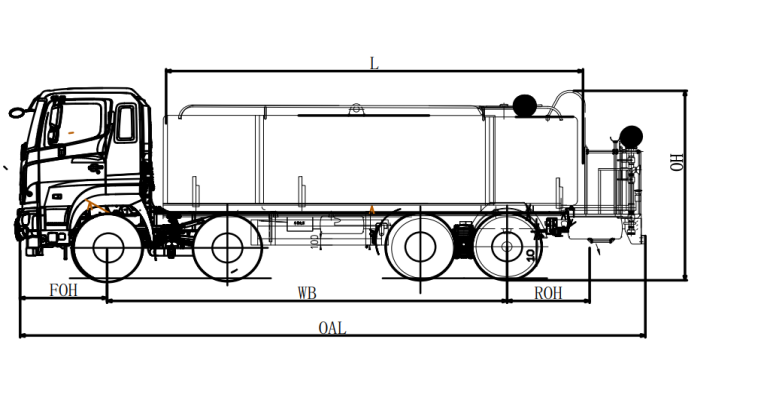

Vehicle Diagram
| Model | Cab Type | WB | OAL | OW | OH | FOH | ROH | L | W | H |
| 8X4 VC66 | one row and a half | 1850+4600+1370 | 12500 | 2550 | 3100 | 1370 | 3310 | 9800 | 2200 | 2100 |
| The above dimensions are for reference and can be customized upon request | ||||||||||
| Product Name | ISUZU 8X4 VC66 Sprinkler Truck | ||
| Vehicle parameters | Wheelbase(㎜) | 1850+4600+1370 | |
| Overall Dimension(㎜) | 12500X2540X3600 | ||
| GVW(Kg) | 44000 | ||
| Curb Weight(Kg) | 11500 | ||
| Passenger No. | 3 | ||
| Maximum speed | 90 | ||
| Tire specification | 385/65R22.5 20PR/ 315/80R22.5 20PR | ||
| Tire No. | 10+1 | ||
| Emission standard | Euro 6 | ||
| Generator parameters | Transmission Model | ZF 8S2330TD | |
| Gear | 8Forward +2 Reverse 8 forward gears, 2 reverse gears | ||
| 6WG1-TCG60 | 309kw/420hp | / | |
| 6WG1-TCG61 | 338kw/460hp | ○ | |
| 6WG1-TCG62 | 381kw/520hp | ○ | |
| 6UZ1-TCG61 | 278kw/380hp | ○ | |
| Specialized performance | Case Material | Q235 | ○ |
| stainless steel | ○ | ||
| Water tank volume | 30m³ | ||
| Water Cannon Range | ≥28 m | ||
| Sprinkler width | ≥14 m | ||
| Sprinkling width | ≥28 m | ||
| Factory standard | The truck is equipped with a high-power self-priming water pump tank with a working platform at the end, the platform is installed on the water cannon, the water cannon can be rotated 360 °, can also be adjusted to a variety of rain. | ||
| Remarks: please contact us to confirm the detailed configuration, support customization | |||
