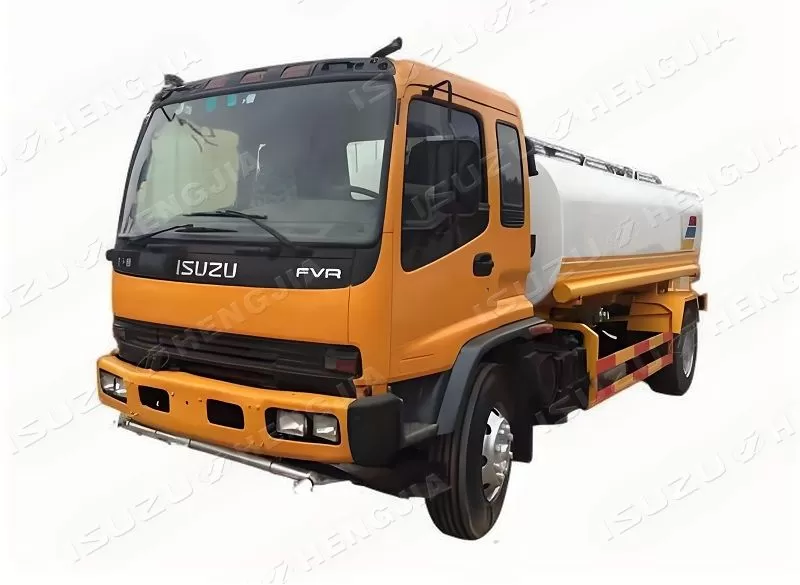

ISUZU F/FVR Sprinkler Truck

Wheelbase	4500mm-5500mm
Drive	4X2/4X4
Engine Model	6HK1
Engine Horsepower	241HP-300HP
Water Cannon Range	≥28m
Tank volume	10m³-12m³
Tank material	Q235/stainless steel

Inquire Now Next Product

Product Configuration

Product Configuration:
Components	The special part consists of liquid tank, power output and transmission system, pipeline system, electrical system, etc.
Tank	The compartment is made of high quality steel, according to the size of the box, there are 4㎜, 5㎜ and 6㎜ tank thickness available, and there are many wave-proof plates inside; the material is stainless steel and aluminum alloy available.
Main components	Sprinkler pump standard for the domestic brand has a smooth operation and high efficiency. Domestic platform high gun can be adjusted into column and fog, range up to 30 meters,; domestic extractor running smoothly low failure rate;, front and rear side nozzles are widely used for highway pavement cleaning.
Durable	Tank body using shearing, cutting, welding, bending and other processes after molding, constantly grinding, to ensure that the welding parts are smooth and beautiful, tank trucks are molded after the tank flaw detection inspection, to ensure that the tank body is durable
Painting	Preferred domestic superior paint, strong adhesion, abrasion resistance, acid and alkali resistance, good heat resistance.
Professional customization	Seven years of modification experience, according to the needs of the car to customize the modification program for free!
Advantages of the whole vehicle	Isuzu chassis + high-quality compartments Perfect match. In the process of development and design, the chassis and compartments are matched according to the thinking of the whole vehicle, giving full play to its comprehensive performance, rather than a simple patchwork.

Vehicle Diagram

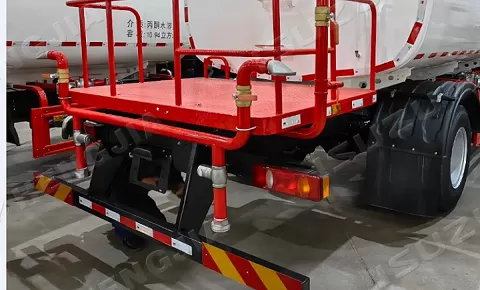

side spraying nozzle
chassis auxilliary girder connection

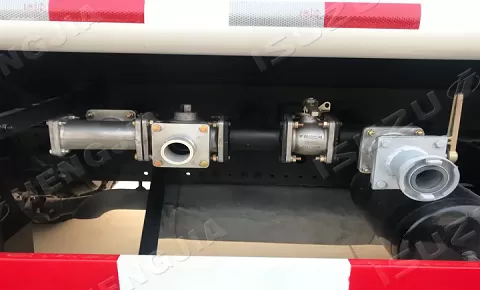

water inlet net
spraying gun
front spaying nozzle

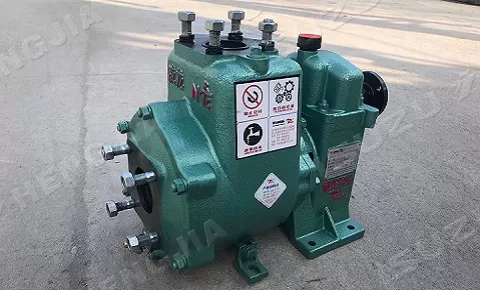

water pump

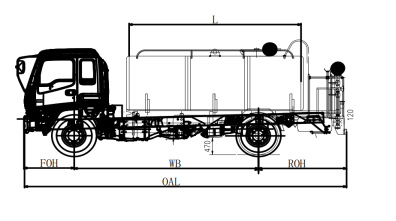

Vehicle Diagram

Model	Cab Type	WB	OAL	OW	OH	FOH	ROH	L	W	H
FVR	one row and a half	4500	8200	2550	3100	1335	2365	5800	1950	1850
FVR	one row and a half	5500	10450	2300	3100	1335	3615	7800	1950	1850
The above dimensions are for reference and can be customized upon request

Product Name			ISUZU FVR Sprinkler Truck
Vehicle parameters	Wheelbase(㎜)		4500	5500
	Overall Dimension(㎜)		8200X2550X3100	10450X2550X3100
	GVW(Kg)		18000	18000
	Curb Weight(Kg)		7500	7850
	Passenger No.		3	3
	Maximum speed		110	90
	Tire specification		295/80R22.5 16PR	295/80R22.5 16PR
	Tire No.		6+1	6+1
	Emission standard		Euro 5、Euro 6	Euro 5、Euro 6
Generator parameters	Transmission Model		Fast 8JS95TE-C	Fast 8JS95TE-C
	Gear		8Forward +2 Reverse	8Forward +2 Reverse
	6HK1-TCL	177kw/241hp	○	○
	6HK1-TCH	221kw/300hp	○	○
	6HK1-TCG60	221kw/300hp	○	○
	6HK1-TCG61	177kw/241hp	○	○
Specialized performance	Case Material	Q235	○	○
	Case Material	stainless steel	○	○
	Water tank volume		10 m³	12m³
	Water Cannon Range		≥28 m	≥28 m
	Sprinkler width		≥14 m	≥14 m
	Sprinkling width		≥28 m	≥28 m
	Factory standard		The truck is equipped with a high-power self-priming water pump tank with a working platform at the end, the platform is installed on the water cannon, the water cannon can be rotated 360 °, can also be adjusted to a variety of rain.	The truck is equipped with a high-power self-priming water pump tank with a working platform at the end, the platform is installed on the water cannon, the water cannon can be rotated 360 °, can also be adjusted to a variety of rain.
Remarks: please contact us to confirm the detailed configuration, support customization
