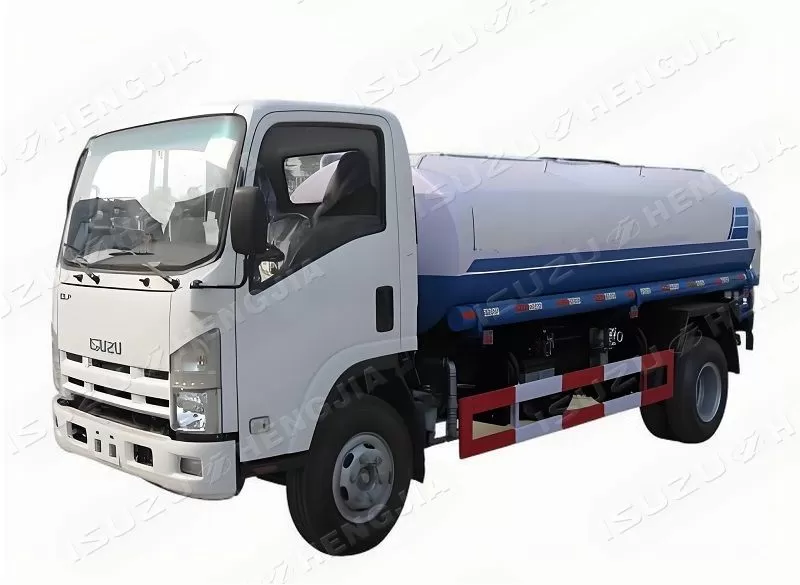

ISUZU NKR/600P Sprinkler Truck


Wheelbase	3360
Engine	115hp/120hp/130hp/140hp
Transmission	Isuzu MSB
Tank material	Q235/stainless steel
Tank volume	5 m³
Water cannon range	≥28 m
Sprinkling width(m)	≥14 m
Water cannon range(m)	≥28 m

Inquire Now Next Product

Product Configuration

Product Configuration:
Components	The special part consists of liquid tank, power output and transmission system, pipeline system, electrical system, etc.

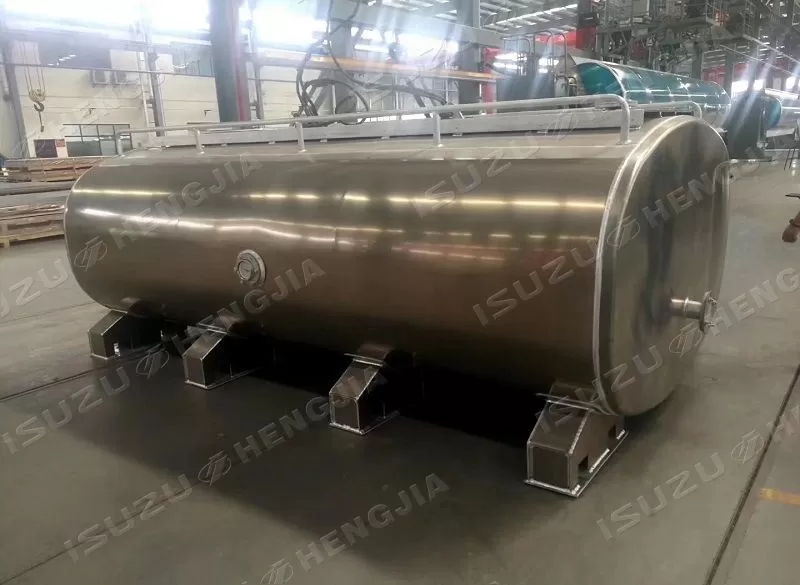

Tank	The compartment is made of high quality steel, according to the size of the box, there are 4㎜, 5㎜ and 6㎜ tank thickness available, and there are many wave-proof plates inside; the material is stainless steel and aluminum alloy available.
Main components	Sprinkler pump standard for the domestic brand has a smooth operation and high efficiency. Domestic platform high gun can be adjusted into column and fog, range up to 30 meters,; domestic extractor running smoothly low failure rate;, front and rear side nozzles are widely used for highway pavement cleaning.
Durable	Tank body using shearing, cutting, welding, bending and other processes after molding, constantly grinding, to ensure that the welding parts are smooth and beautiful, tank trucks are molded after the tank flaw detection inspection, to ensure that the tank body is durable
Painting	Preferred domestic superior paint, strong adhesion, abrasion resistance, acid and alkali resistance, good heat resistance.
Professional customization	Seven years of modification experience, according to the needs of the car to customize the modification program for free!
Advantages of the whole vehicle	Isuzu chassis + high-quality compartments Perfect match. In the process of development and design, the chassis and compartments are matched according to the thinking of the whole vehicle, giving full play to its comprehensive performance, rather than a simple patchwork.

Vehicle Diagram

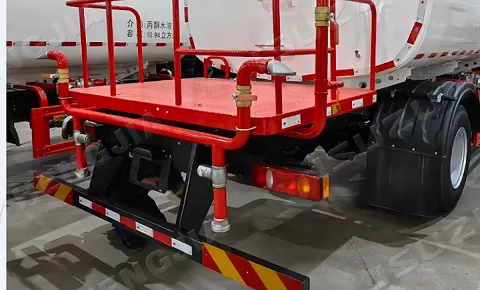

side spraying nozzle

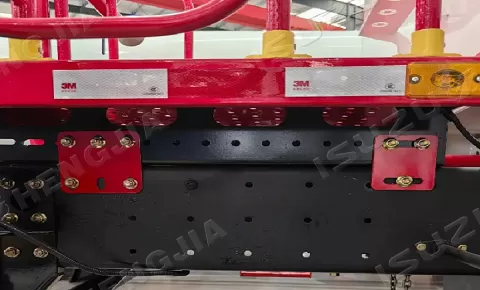

chassis auxilliary girder connection

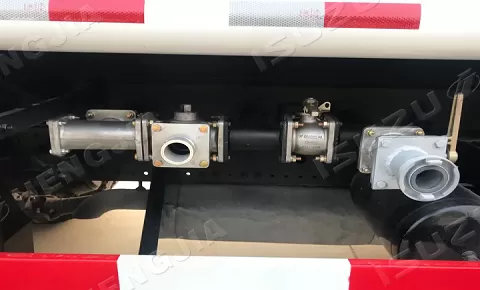

water inlet net

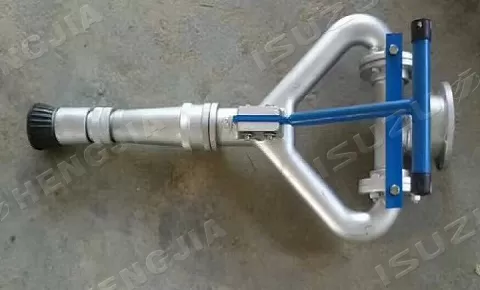

spraying gun

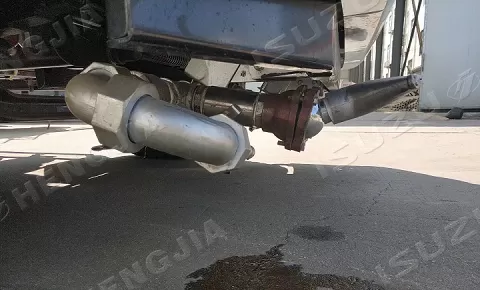

front spaying nozzle
water pump

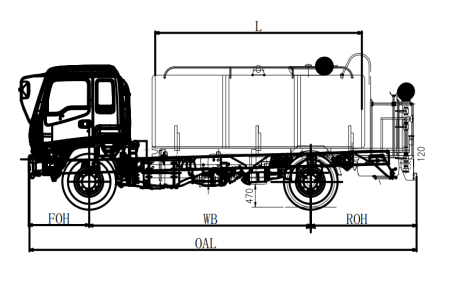

Vehicle Diagram

Model	Cab Type	WB	OAL	OW	OH	FOH	ROH	L	W	H
600P	Single row	3360	5995	1950	2380	1015	1620	3800	1850	1850
The above dimensions are for reference and can be customized upon request

Product Name			ISUZU 600P Sprinkler Truck
Vehicle parameters	Wheelbase(㎜)		3360
	Overall Dimension(㎜)		5995X1950X2380
	GVW(Kg)		7300
	Curb Weight(Kg)		3120
	Passenger No.		2
	Maximum speed		98
	Tire specification		7.00R15 10PR
	Tire No.		6+1
	Emission standard		Euro 5、Euro 6
Generator parameters	Transmission Model		Isuzu MSB
	Gear		5Forward + 1 Reverse
	4KH1CN5HS	96kw/130hp	○
	4KH1CN5MD	83kw/115hp	\
	4KH1CN5HD	95kw/130hp	○
	4KH1CN6LB	88kw/120hp	○
	4KH1N6MD	101kW/140hp	○
Specialized performance	Case Material	Q235	○
		stainless steel	○
	Water tank volume		5 m³
	Water Cannon Range		≥28 m
	Sprinkler width		≥14 m
	Sprinkling width		≥28 m
	Factory standard		The truck is equipped with a high-power self-priming water pump tank with a working platform at the end, the platform is installed on the water cannon, the water cannon can be rotated 360 °, can also be adjusted to a variety of rain.
Remarks: please contact us to confirm the detailed configuration, support customization
