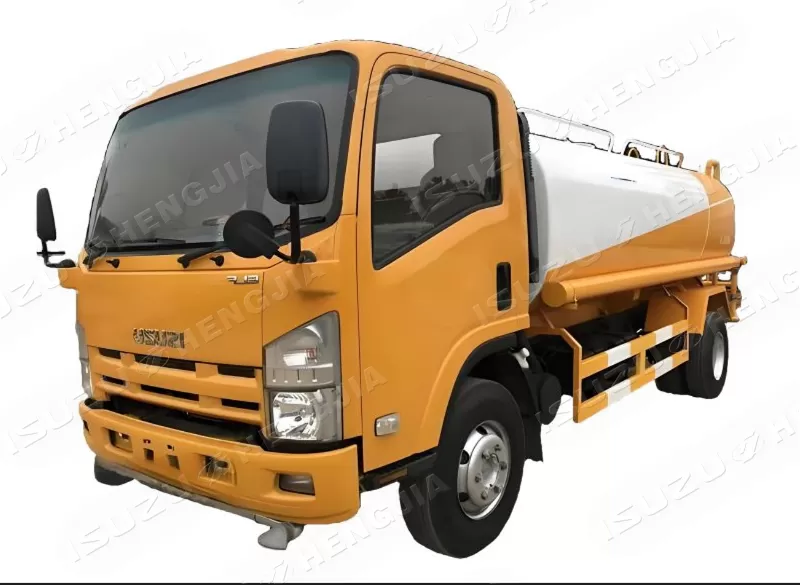

ISUZU NPR/700P Sprinkler Truck


Wheelbase	3360	3815
Engine	189hp/205hp	189hp/205hp
Transmission	Isuzu MLD	Isuzu MLD
Tank material	Q235/stainless steel	Q235/stainless steel
Tank volume	6 m³	6 m³
Water cannon range	≥28 m	≥28 m
Sprinkling width(m)	≥14 m	≥14 m
Water cannon range(m)	≥28 m	≥28 m

Inquire Now Next Product

Product Configuration

Product Configuration:
Components	The special part consists of liquid tank, power output and transmission system, pipeline system, electrical system, etc.
Tank	The compartment is made of high quality steel, according to the size of the box, there are 4㎜, 5㎜ and 6㎜ tank thickness available, and there are many wave-proof plates inside; the material is stainless steel and aluminum alloy available.
Main components	Sprinkler pump standard for the domestic brand has a smooth operation and high efficiency. Domestic platform high gun can be adjusted into column and fog, range up to 30 meters,; domestic extractor running smoothly low failure rate;, front and rear side nozzles are widely used for highway pavement cleaning.
Durable	Tank body using shearing, cutting, welding, bending and other processes after molding, constantly grinding, to ensure that the welding parts are smooth and beautiful, tank trucks are molded after the tank flaw detection inspection, to ensure that the tank body is durable
Painting	Preferred domestic superior paint, strong adhesion, abrasion resistance, acid and alkali resistance, good heat resistance.
Professional customization	Seven years of modification experience, according to the needs of the car to customize the modification program for free!
Advantages of the whole vehicle	Isuzu chassis + high-quality compartments Perfect match. In the process of development and design, the chassis and compartments are matched according to the thinking of the whole vehicle, giving full play to its comprehensive performance, rather than a simple patchwork.

Vehicle Diagram

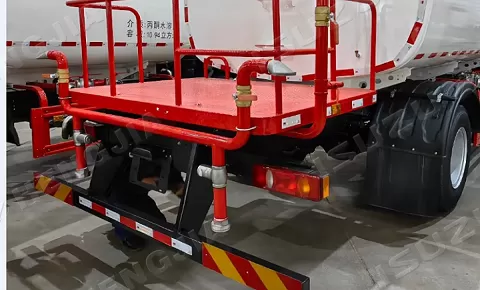

side spraying nozzle

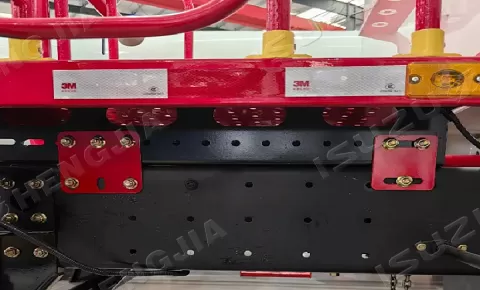

chassis auxilliary girder connection

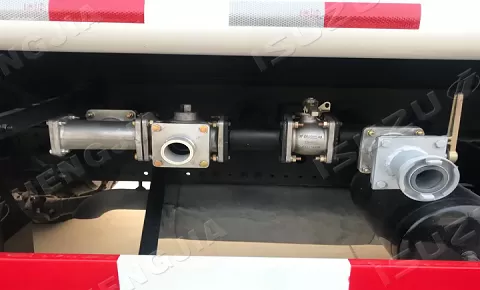

water inlet net

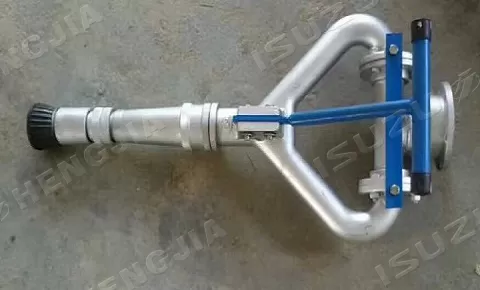

spraying gun

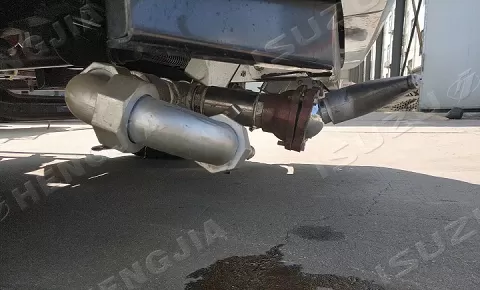

front spaying nozzle

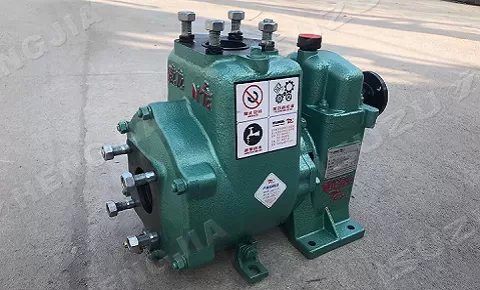

water pump

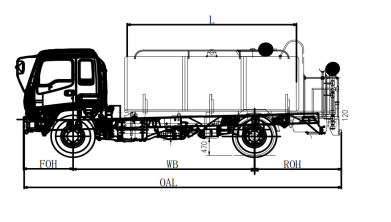

Vehicle Diagram

Model	Cab Type	WB	OAL	OW	OH	FOH	ROH	L	W	H
700P	Single row	3815	6970	2290	2550	1110	2045	4800	1950	1850
700P	Single row	4175	7300	2300	2550	1110	2015	5300	1950	1850
The above dimensions are for reference and can be customized upon request

Product Name			ISUZU 700P Sprinkler Truck
Vehicle parameters	Wheelbase(㎜)		3815	4175
	Overall Dimension(㎜)		6970×2280×2550	7300X2300X2550
	GVW(Kg)		10550	10550
	Curb Weight(Kg)		4900	5250
	Passenger No.		3	3
	Maximum speed		110	110
	Tire specification		235/75R17.5 16PR	235/75R17.5 16PR
	Tire No.		6+1	6+1
	Emission standard		Euro 5、Euro 6	Euro 5、Euro 6
Generator parameters	Transmission Model		Isuzu MLD	Isuzu MLD
	Gear		6Forward + 1 Reverse	6Forward + 1 Reverse
	4HK1-TCG60	151kw/205hp	○	○
	4HK1-TCG61	139kw/189hp	○	○
Specialized performance	Case Material	Q235	○	○
		stainless steel	○	○
	Water tank volume		6 m³	7 m³
	Water Cannon Range		≥28 m	≥28 m
	Sprinkler width		≥14 m	≥14 m
	Sprinkling width		≥28 m	≥28 m
	Factory standard		The truck is equipped with a high-power self-priming water pump tank with a working platform at the end, the platform is installed on the water cannon, the water cannon can be rotated 360 °, can also be adjusted to a variety of rain.	The truck is equipped with a high-power self-priming water pump tank with a working platform at the end, the platform is installed on the water cannon, the water cannon can be rotated 360 °, can also be adjusted to a variety of rain.
Remarks: please contact us to confirm the detailed configuration, support customization
