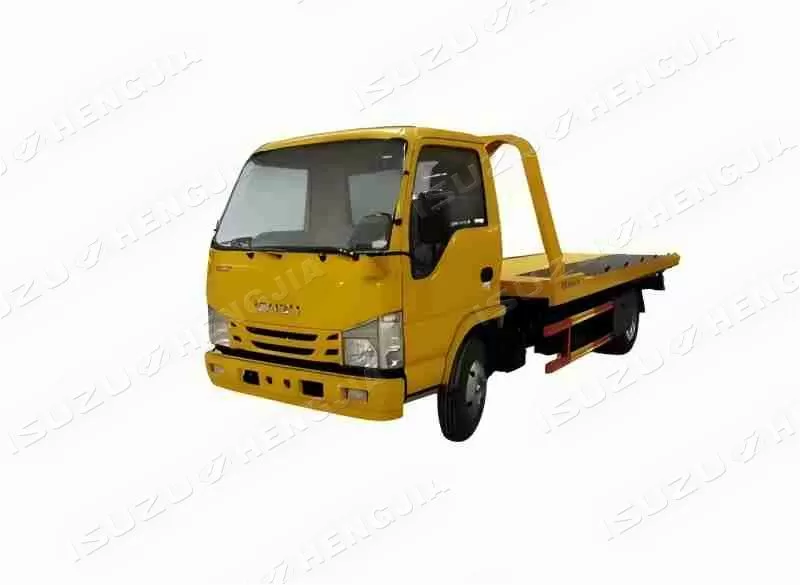

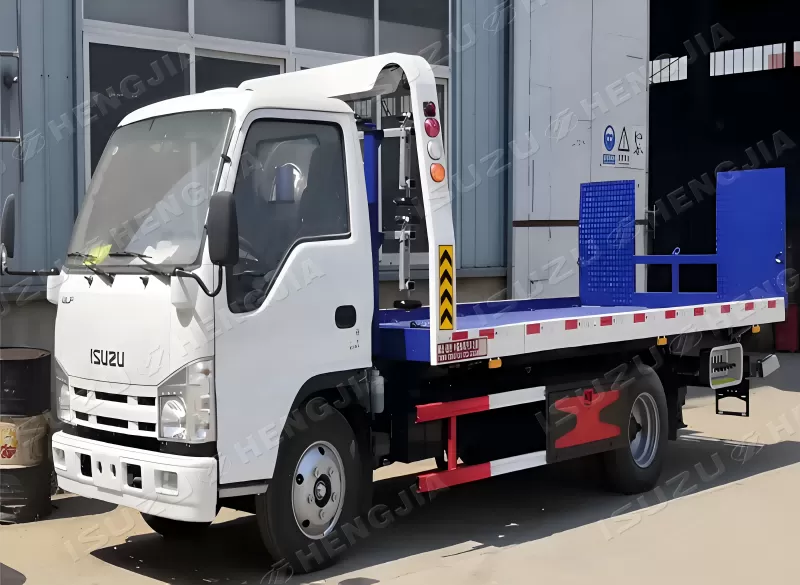

ISUZU NKR/100P wrecker

Inquire Now Next Product

Product Configuration

tablet	The flat plate can be made of 4 thick patterned plates (confirmed according to the cargo tonnage of the flat plate) or disposable punched plates with holes, which have strong rigidity and strength, durability, and are not easily deformed

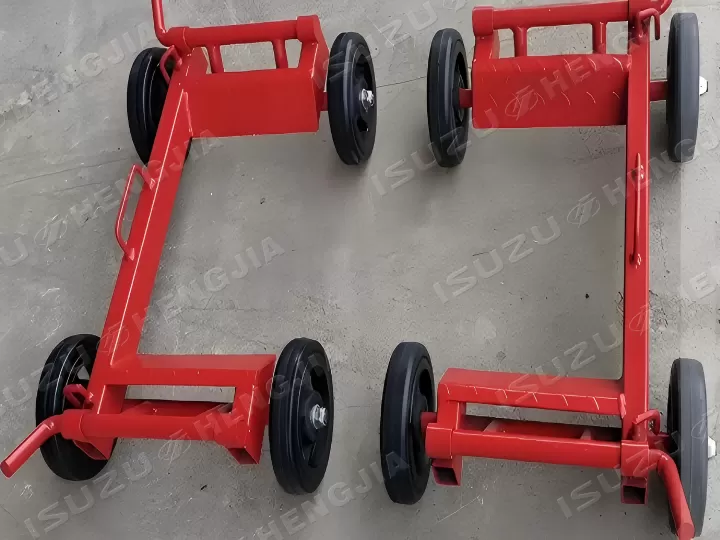

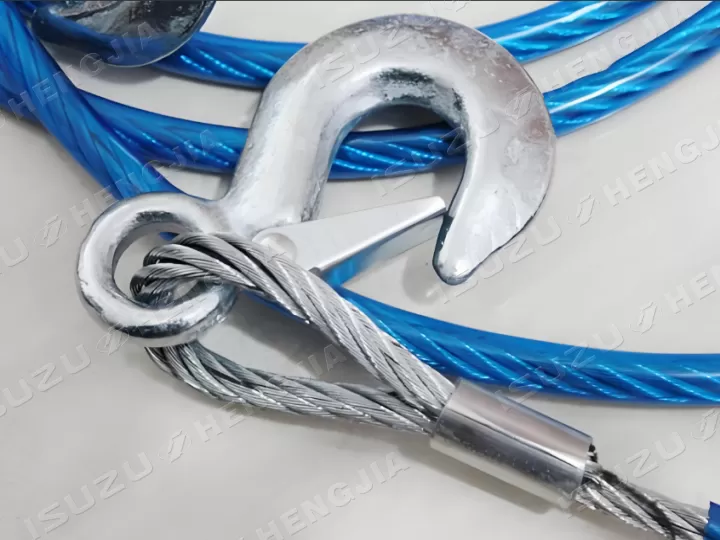

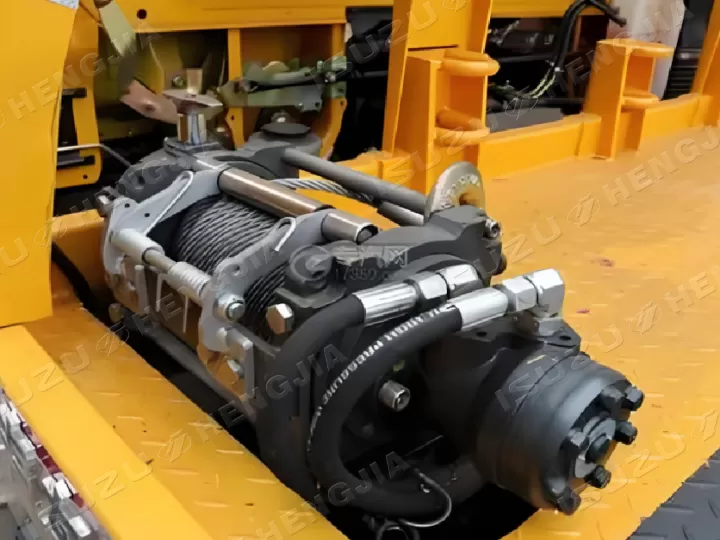

Main components	Equipped with a 4-ton hydraulic winch (optional for multiple tonnages), a 25 meter steel wire rope, double-sided linkage operation, a pair of auxiliary wheel carts, a pair of tire racks, a set of on-board tools, and 4 sets of straps
Process quality	Adopting advanced and skilled foreign product technology and production processes, fully imported hydraulic seals, new anti slip plates, and reinforced crossbeam fixation, the load-bearing capacity has been enhanced.
spray	Preferred domestic premium paint with strong adhesion, wear resistance, acid and alkali resistance, and good heat resistance
Professional customization	Seven years of modification experience, can customize modification plans for free according to car needs
Vehicle advantages	Isuzu chassis and high-quality tablet are perfectly matched. In the development and design process, the chassis and flat plate are matched and designed according to the whole vehicle thinking, fully utilizing their comprehensive performance, rather than simply piecing them together.

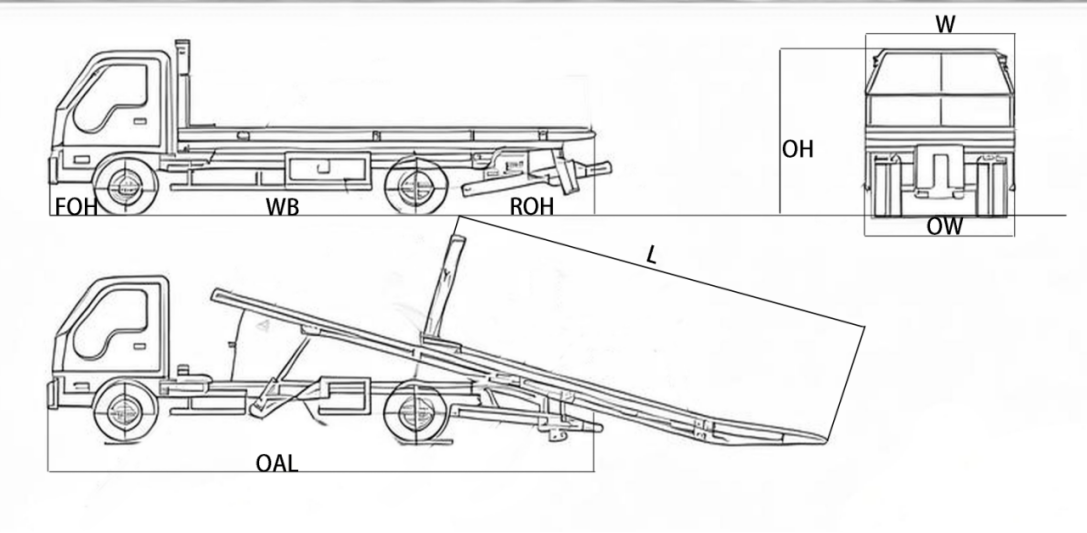

Vehicle Diagram

Vehicle Diagram

Model	Type of cab	WB	OAL	OW	OH	FOH	ROH	L	W
100P	Single Row	3360	6000	2300	2200	1015	1525	4200+1000	2300
100P	Single Row	3815	7250	2300	2350	1015	1835	4600+1000	2300
The above dimensions are for reference and can be customized according to your needs

Tablet size (L * W)

Product name			100P wrecker
Vehicle parameters	Vehicle wheelbase (mm)		3360	3815
	Vehicle size (mm)		6000X2300x2200	7250x2300x2350
	Total weight (Kg)		7300	7300
	Curb weight (Kg)		4150	4880
	Number of passengers in the cab		2	2
	maximum speed		98	98
	Tire Size		7.00R16LT 8PR	7.00R16LT 8PR
	Number of tires		6+1	6+1
	emission standard		National 5 、 National 6	National 5 、 National 6
Engine and transmission variable parameters	Transmission model		Isuzu MSB	Isuzu MSB
	Gear		5Forward + 1 Reverse	5Forward + 1 Reverse
	4KH1CN5LS	72kw/98hp	○	○
	4KH1CN5MD	83kw/115hp	○	○
	4KH1CN5HD	95kw/130hp	○	-
	4KH1CN6LB	88kw/120hp	○	○
Specialized performance	Cabinet material		Q235	Q235
	Tablet type		Half floor standing	Half floor standing
	Tablet size (L * W)		（4200+1000）*2300	（4600+1000）*2300
	Rated towing weight (Kg)		3000	3000

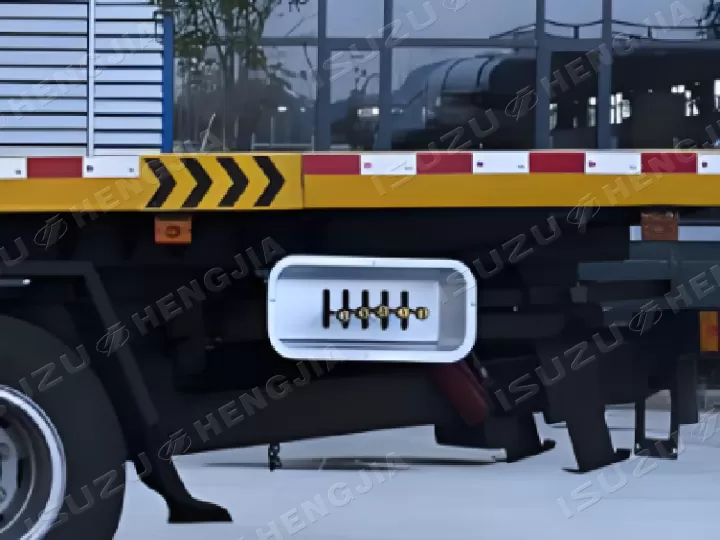

	Factory standards		Bilateral linkage operation, 2 auxiliary wheels, 1 pair of seven character forks, 6 straps, 2 tire guards, left and right side protective and reflective stickers	Bilateral linkage operation, 2 auxiliary wheels, 1 pair of seven character forks, 6 straps, 2 tire guards, left and right side protective and reflective stickers
