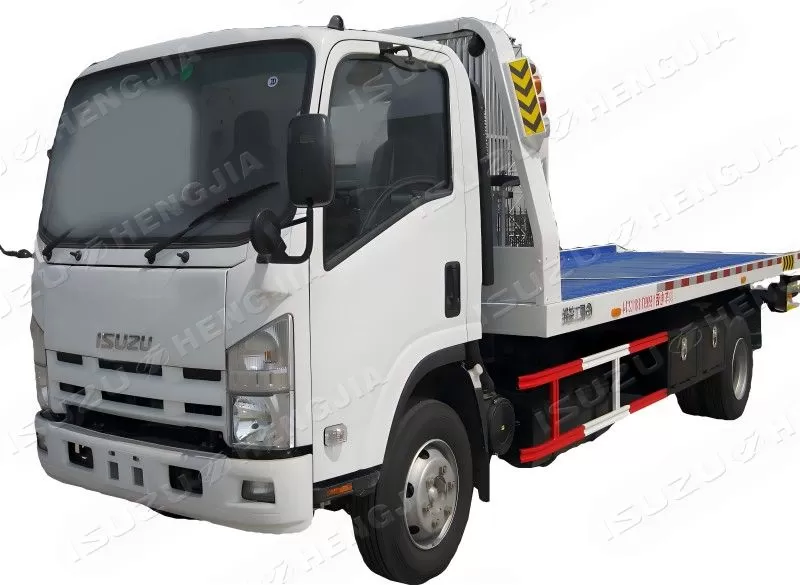

Wrecker Truck
| Wheelbase | 3360mm-3815mm |
| Drive | 4X2/4X4 |
| Engine model | 4KH1 |
| Engine horsepower | 120HP-146HP |
| Load capacity | 3.5T-4.5T |
| Flat size (L * W) | （4200+1000）*2300/（4600+1000）*2300 |
| Rated towing weight (Kg) | 4000 Kg |
Product Configuration
| tablet | The flat plate can be made of 4 thick patterned plates (confirmed according to the cargo tonnage of the flat plate) or disposable punched plates with holes, which have strong rigidity and strength, durability, and are not easily deformed |
| Main components | Equipped with a 4-ton hydraulic winch (optional for multiple tonnages), a 25 meter steel wire rope, double-sided linkage operation, a pair of auxiliary wheel carts, a pair of tire racks, a set of on-board tools, and 4 sets of straps |
| Process quality | Adopting advanced and skilled foreign product technology and production processes, fully imported hydraulic seals, new anti slip plates, and reinforced crossbeam fixation, the load-bearing capacity has been enhanced. |
| spray | Preferred domestic premium paint with strong adhesion, wear resistance, acid and alkali resistance, and good heat resistance |
| Professional customization | Seven years of modification experience, can customize modification plans for free according to car needs |
| Vehicle advantages | Isuzu chassis and high-quality tablet are perfectly matched. In the development and design process, the chassis and flat plate are matched and designed according to the whole vehicle thinking, fully utilizing their comprehensive performance, rather than simply piecing them together. |
Vehicle Diagram

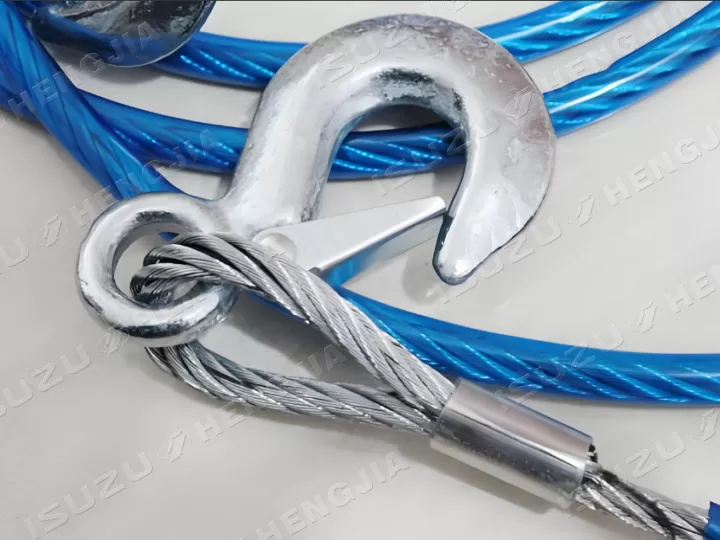

Anti detachment hook

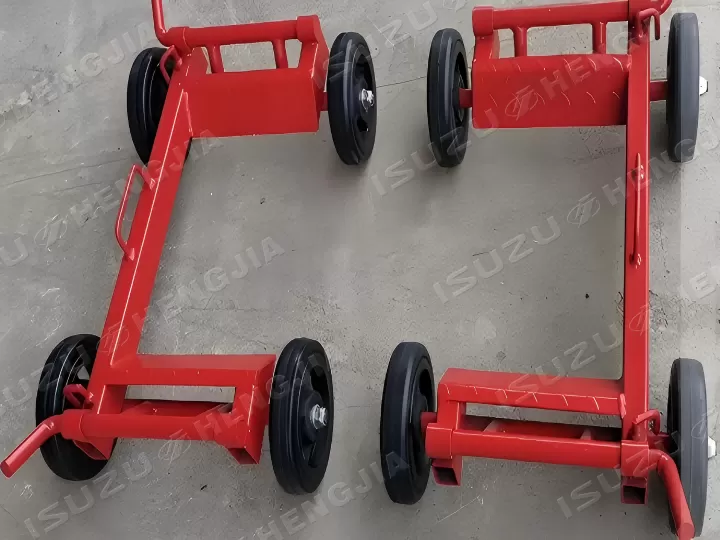

training wheel

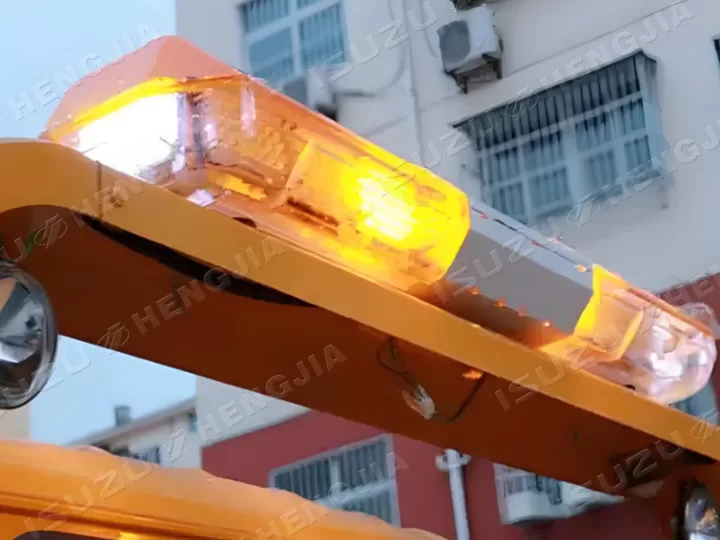

Engineering lights

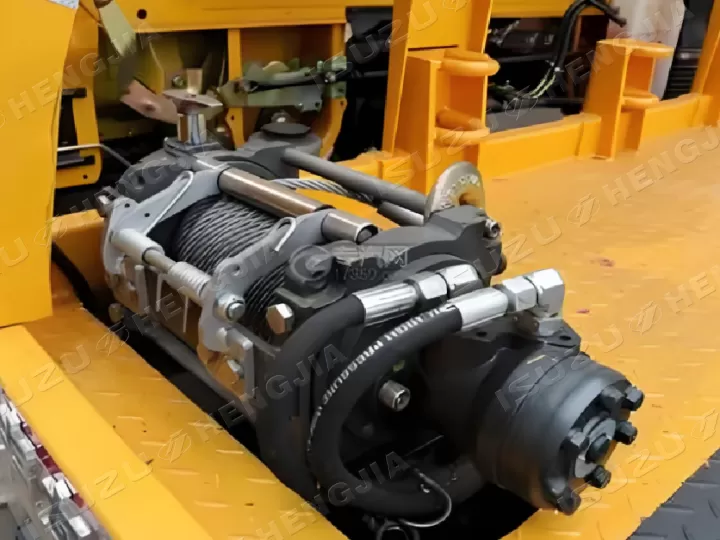

winch
Scalable support arm

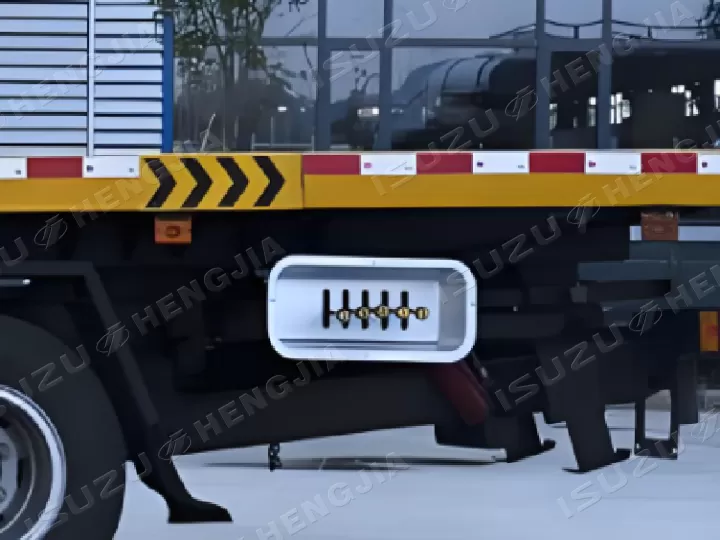

Bilateral linkage
Vehicle Diagram
| Model | Type of cab | WB | OAL | OW | OH | FOH | ROH | L | W | ||
| M100 | Single Row | 3360 | 6000 | 2300 | 2350 | 1640 | 1525 | 4200+1000 | 4600+1000 | ||
| Single Row | 3815 | 7250 | 2300 | 2350 | 1640 | 1525 | 2300 | 2300 | |||
| Isuzu M100 wrecker | ||
| wheelbase | 3360 | 3815 |
| engine | 115hp/120hp/130hp | 115hp/120hp/130hp |
| Transmission | Isuzu MSB | Isuzu MSB |
| Tablet type | Half floor standing | Half floor standing |
| Tablet size (L * W)） | （4200+1000）*2300 | （4600+1000）*2300 |
| Rated towing weight (Kg) | 3000 | 3000 |
| Product name | Isuzu M100 wrecker | |||
| Vehicle parameters | Vehicle wheelbase (mm) | 3360 | 3815 | |
| Vehicle size (mm) | 6000X2300x2350 | 7250x2300x2350 | ||
| Total weight (Kg) | 8280 | 7300 | ||
| Curb weight (Kg) | 4150 | 4880 | ||
| Number of passengers in the cab | 2 | 2 | ||
| maximum speed | 98 | 98 | ||
| Tire Size | 7.50R16LT 14PR | 7.50R16LT 14PR | ||
| Number of tires | 6+1 | 6+1 | ||
| emission standard | National 5 、 National 6 | National 5 、 National 6 | ||
| Engine and transmission variable parameters | Transmission model | Isuzu MSB | Isuzu MSB | |
| Gear | 5Forward + 1 Reverse | 5Forward + 1 Reverse | ||
| 4KH1CN5LS | 72kw/98hp | ○ | ○ | |
| 4KH1CN5MD | 83kw/115hp | ○ | ○ | |
| 4KH1CN5HD | 95kw/130hp | ○ | - | |
| Specialized performance | Cabinet material | Q235 | Q235 | |
| Tablet type | Half floor standing | Half floor standing | ||
| Tablet size (L * W) | （4200+1000）*2300 | （4600+1000）*2300 | ||
| Rated towing weight (Kg) | 3000 | 3000 | ||
| Factory standards | Bilateral linkage operation, 2 auxiliary wheels, 1 pair of seven character forks, 6 straps, 2 tire guards, left and right side protective and reflective stickers | Bilateral linkage operation, 2 auxiliary wheels, 1 pair of seven character forks, 6 straps, 2 tire guards, left and right side protective and reflective stickers | ||
Note: For detailed configuration, please contact us for confirmation. Customization is supported
