ISUZU NPR/700P wrecker

Inquire Now Next Product

Product Configuration

tablet	The flat plate can be made of 4 thick patterned plates (confirmed according to the cargo tonnage of the flat plate) or disposable punched plates with holes, which have strong rigidity and strength, durability, and are not easily deformed
Main components	Equipped with a 4-ton hydraulic winch (optional for multiple tonnages), a 25 meter steel wire rope, double-sided linkage operation, a pair of auxiliary wheel carts, a pair of tire racks, a set of on-board tools, and 4 sets of straps
Process quality	Adopting advanced and skilled foreign product technology and production processes, fully imported hydraulic seals, new anti slip plates, and reinforced crossbeam fixation, the load-bearing capacity has been enhanced.
spray	Preferred domestic premium paint with strong adhesion, wear resistance, acid and alkali resistance, and good heat resistance
Professional customization	Seven years of modification experience, can customize modification plans for free according to car needs
Vehicle advantages	Isuzu chassis and high-quality tablet are perfectly matched. In the development and design process, the chassis and flat plate are matched and designed according to the whole vehicle thinking, fully utilizing their comprehensive performance, rather than simply piecing them together.

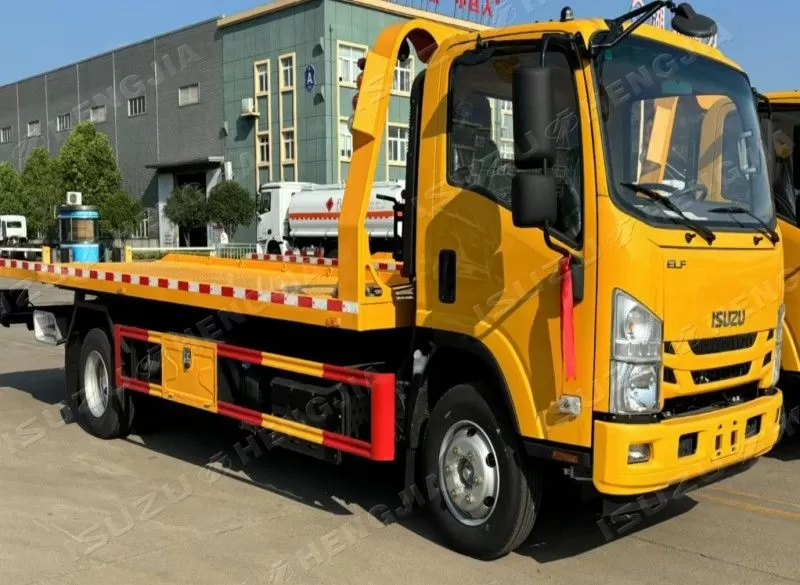

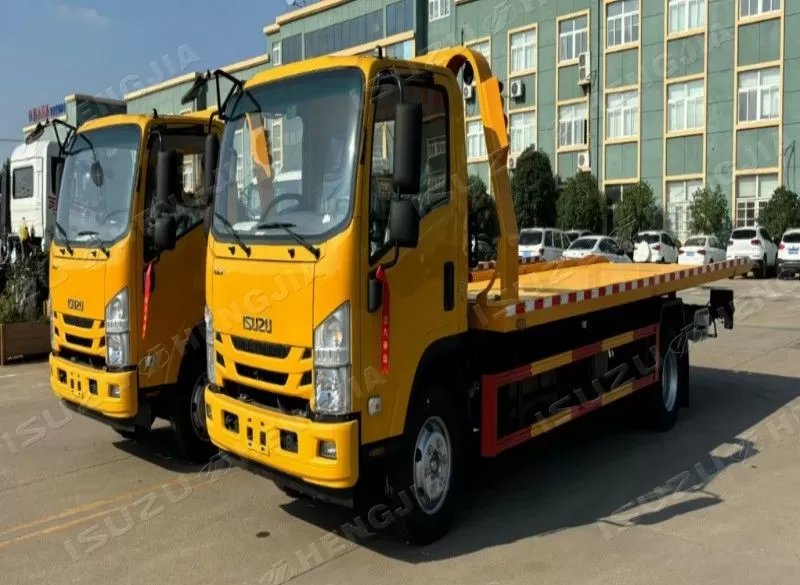

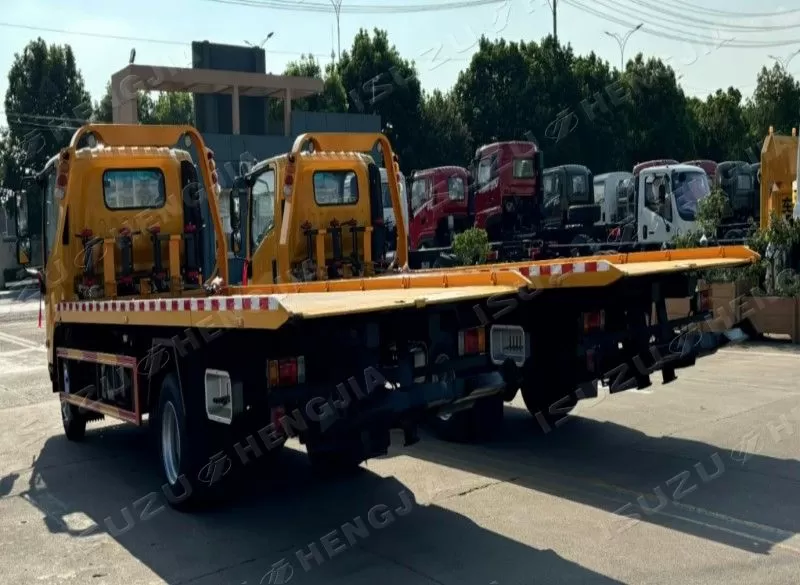

Vehicle Diagram

Vehicle Diagram

Model	Type of cab	WB	OAL	OW	OH	FOH	ROH	L	W
700P	Single Row	3360	6000	2300	2350	1680	1650	4200+1000	2300
	Single Row	3815	7250	2300	2350	1680	1650	4600+1000	2300
	Single Row	4175	8000	2300	2350	1680	1650	5900+1000	2300
The above dimensions are for reference and can be customized according to your needs

Product name			700P wrecker
Vehicle parameters	Vehicle wheelbase (mm)		3360	3815	4175
	Vehicle size (mm)		6000X2300x2350	7250x2300x2350	8000x2300x2350
	Total weight (Kg)		10550	10550	10550
	Curb weight (Kg)		4750	4960	5420
	Number of passengers in the cab		3	3	3
	maximum speed		110	110	110
	Tire Size		235/75R17.5 16PR	235/75R17.5 16PR	235/75R17.5 16PR
	Number of tires		6+1	6+1	6+1
	emission standard		National 5 、 National 6	National 5 、 National 6	National 5 、 National 6
Engine and transmission variable parameters	Transmission model		Isuzu MLD	Isuzu MLD	Isuzu MLD
	Gear		6Forward + 1 Reverse	6Forward + 1 Reverse	6Forward + 1 Reverse

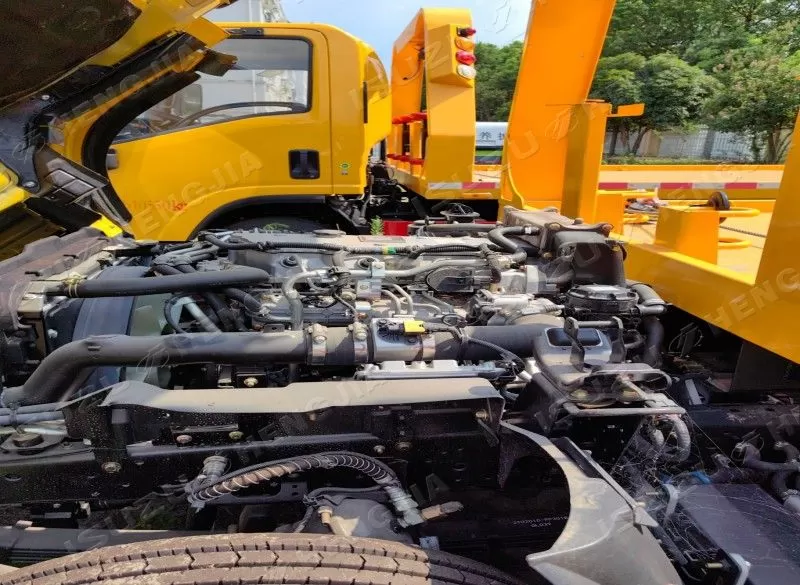

	4HK1-TCG60	151kw/205hp	○	○	○
	4HK1-TCG61	139kw/189hp	○	○	○
Specialized performance	Cabinet material		Q235	Q235	Q235
	Tablet type		Half floor standing	Half floor standing	Half floor standing
	Tablet size (L * W)		（4200+1000）*2300	（4600+1000）*2300	（5900+1000）*2300
	Rated towing weight (Kg)		4000	4000	4000

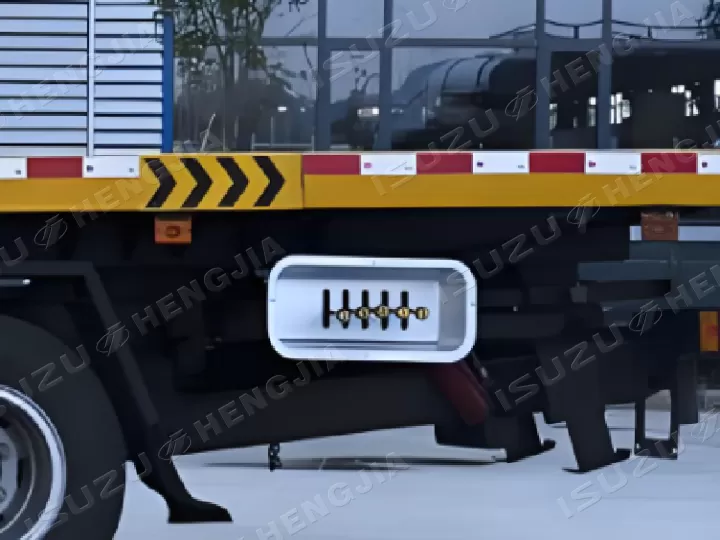

	Factory standards		Bilateral linkage operation, 2 auxiliary wheels, 1 pair of seven character forks, 6 straps, 2 tire guards, left and right side protective and reflective stickers	Bilateral linkage operation, 2 auxiliary wheels, 1 pair of seven character forks, 6 straps, 2 tire guards, left and right side protective and reflective stickers	Bilateral linkage operation, 2 auxiliary wheels, 1 pair of seven character forks, 6 straps, 2 tire guards, left and right side protective and reflective stickers
Note: For detailed configuration, please contact us for confirmation. Customization is supported
